Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dimmer Switch

Dimmer Switch



Lighting Systems Connector End Views

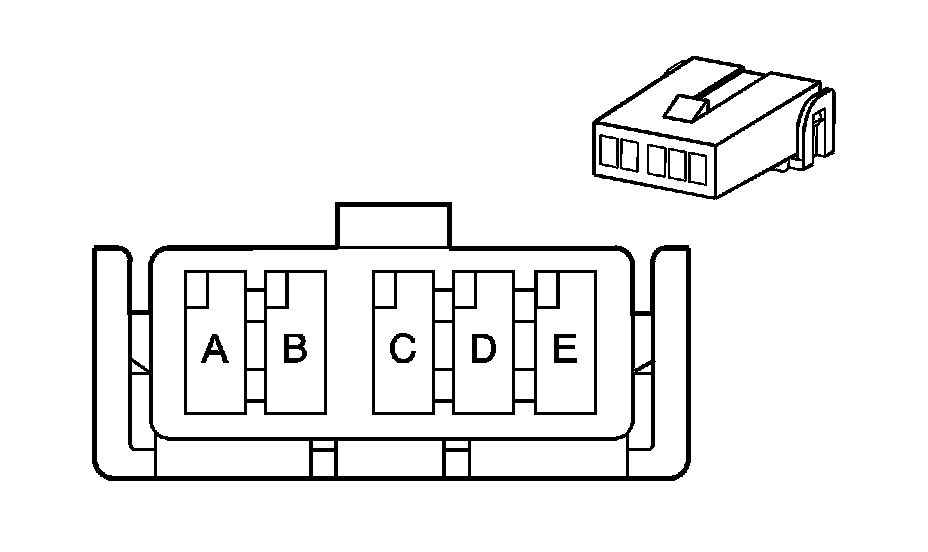

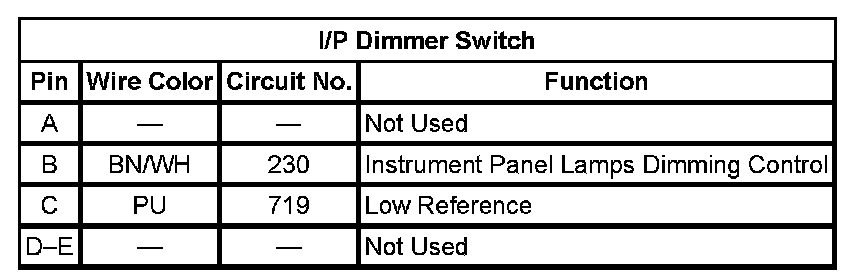

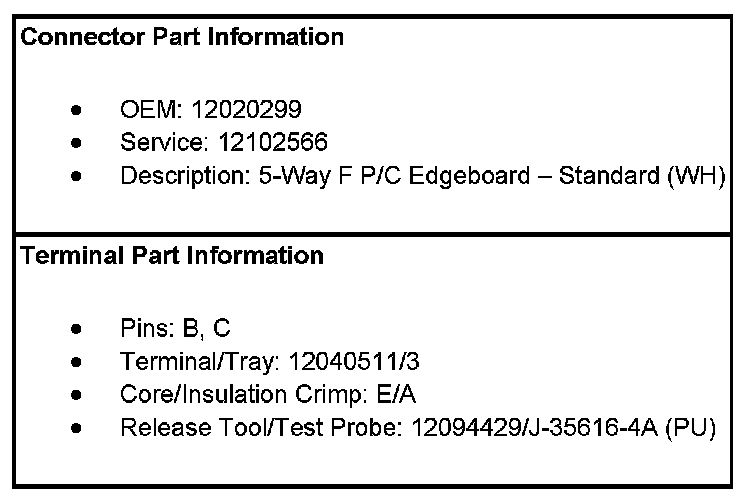

I/P Dimmer Switch
