C375

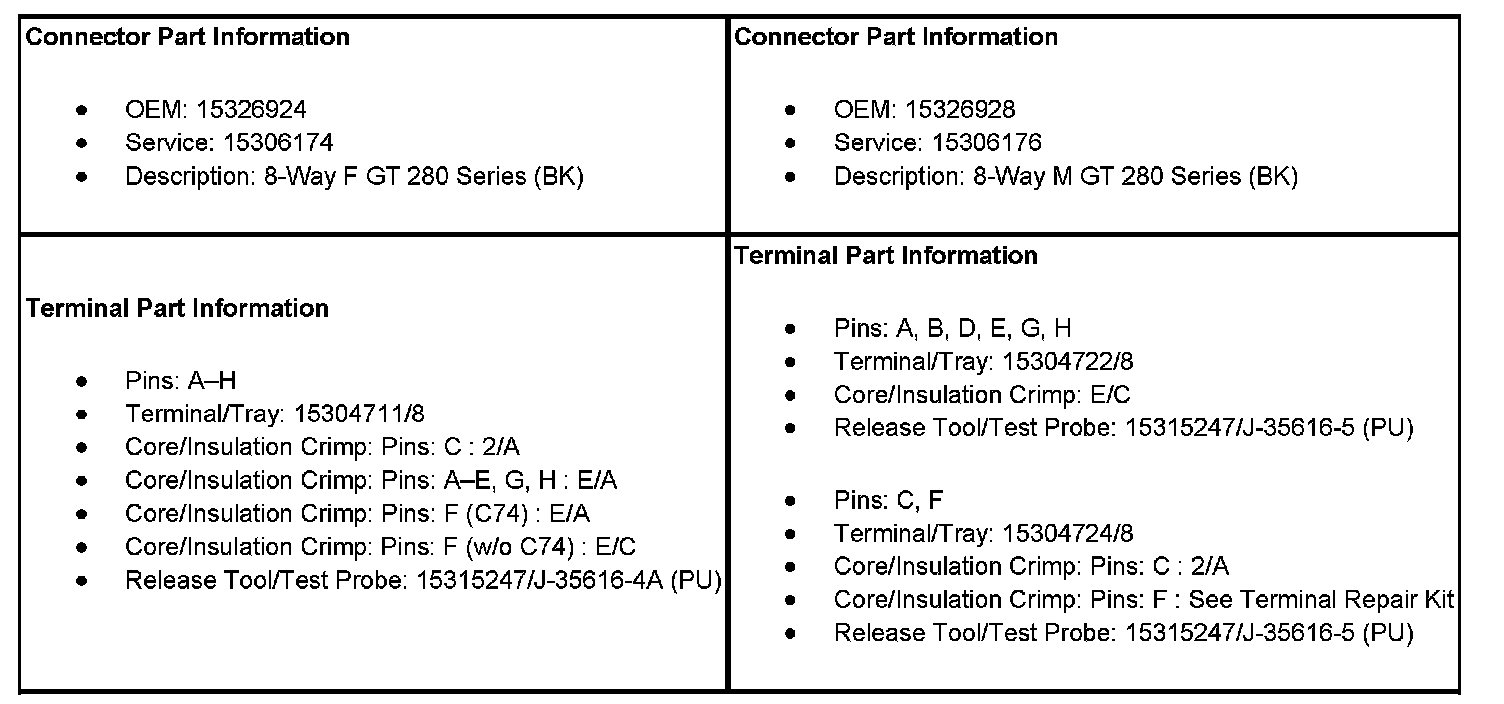

Inline Harness Connector End Views

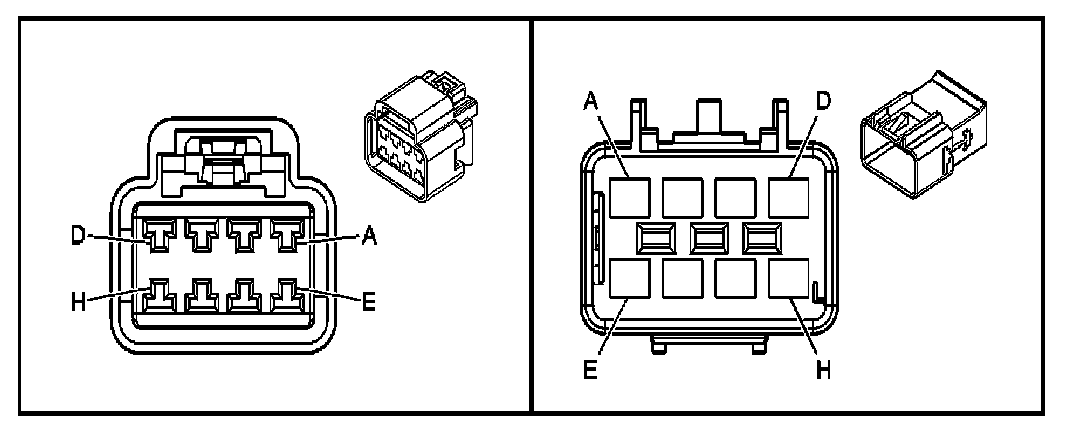

C375 Body Harness to Headliner Harness (Coupe)

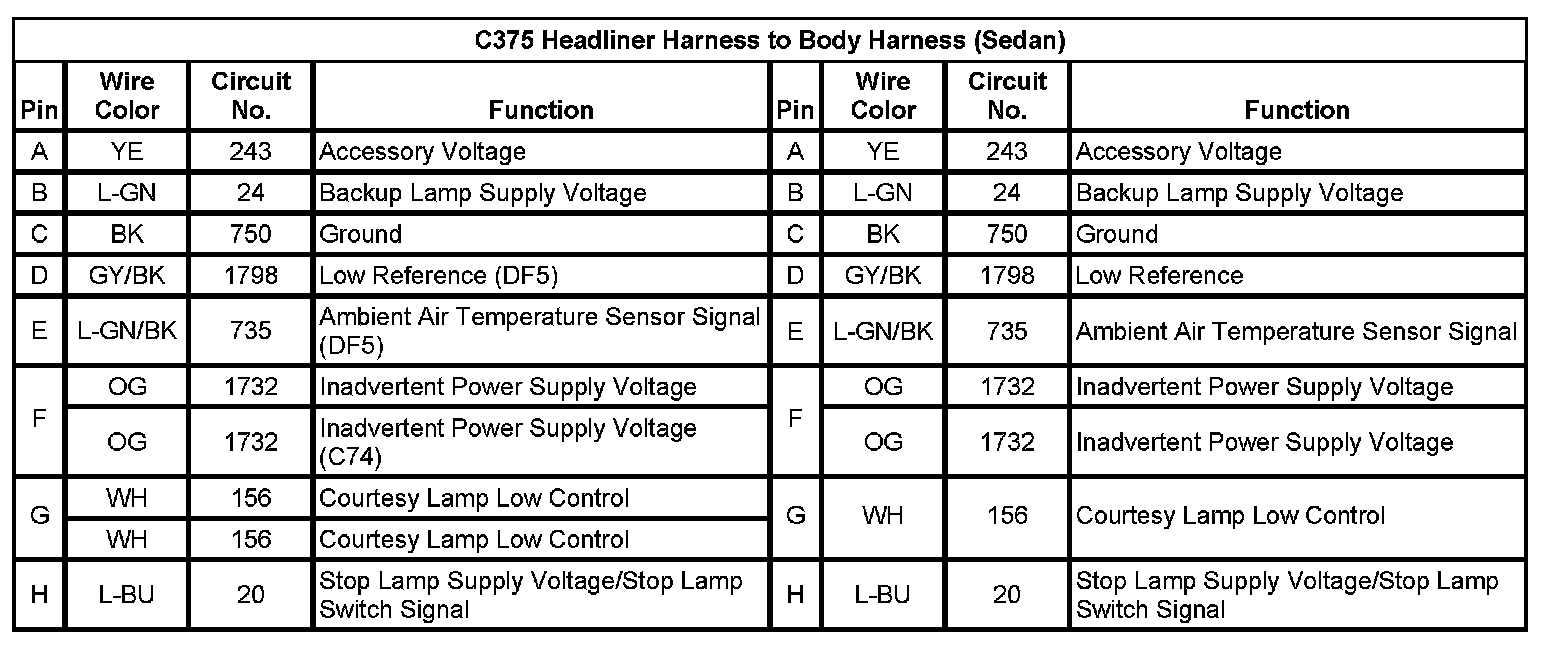

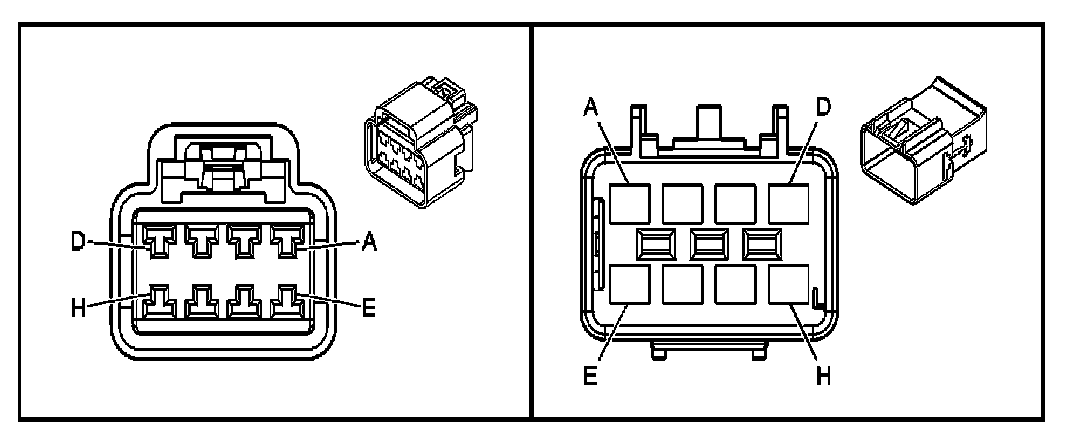

C375 Headliner Harness to Body Harness (Sedan)
