C121
C121

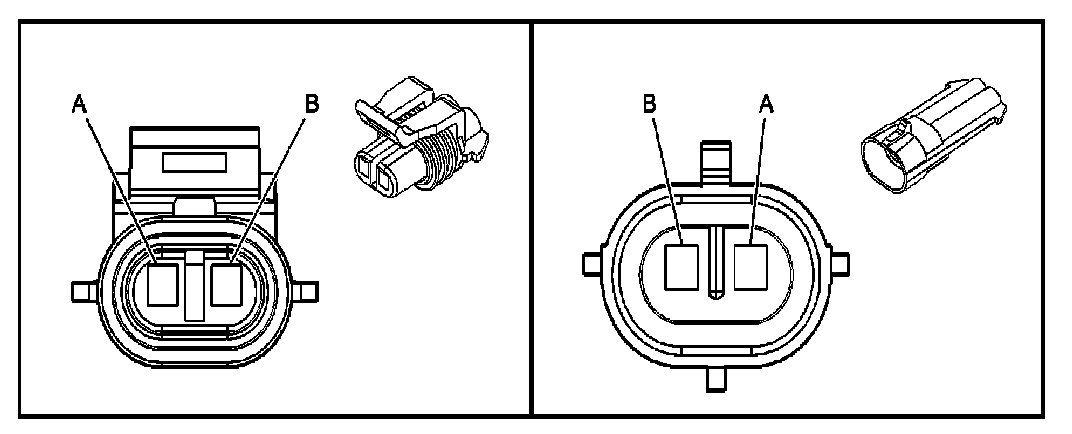

Inline Harness Connector End Views

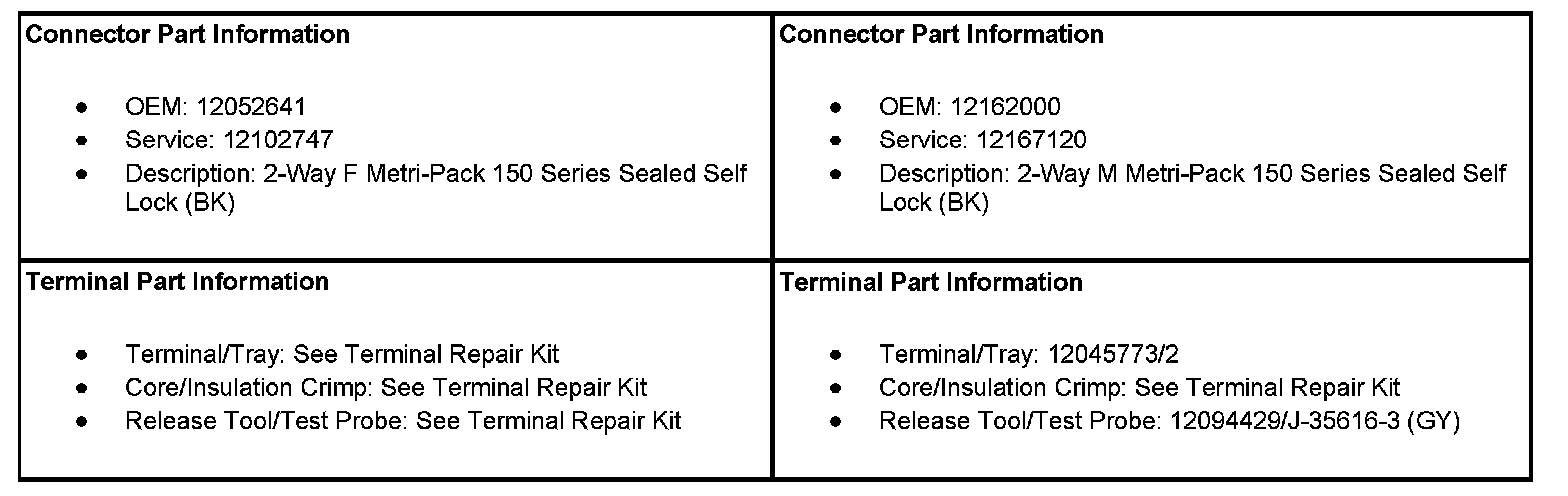

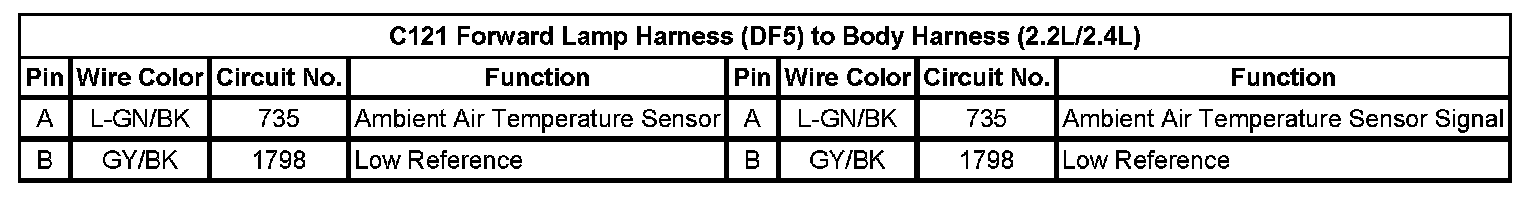

C121 Forward Lamp Harness (DF5) to Body Harness (2.2L/2.4L)
