Park Brake System Diagnosis
Park Brake System Diagnosis
Park Brake System Diagnosis

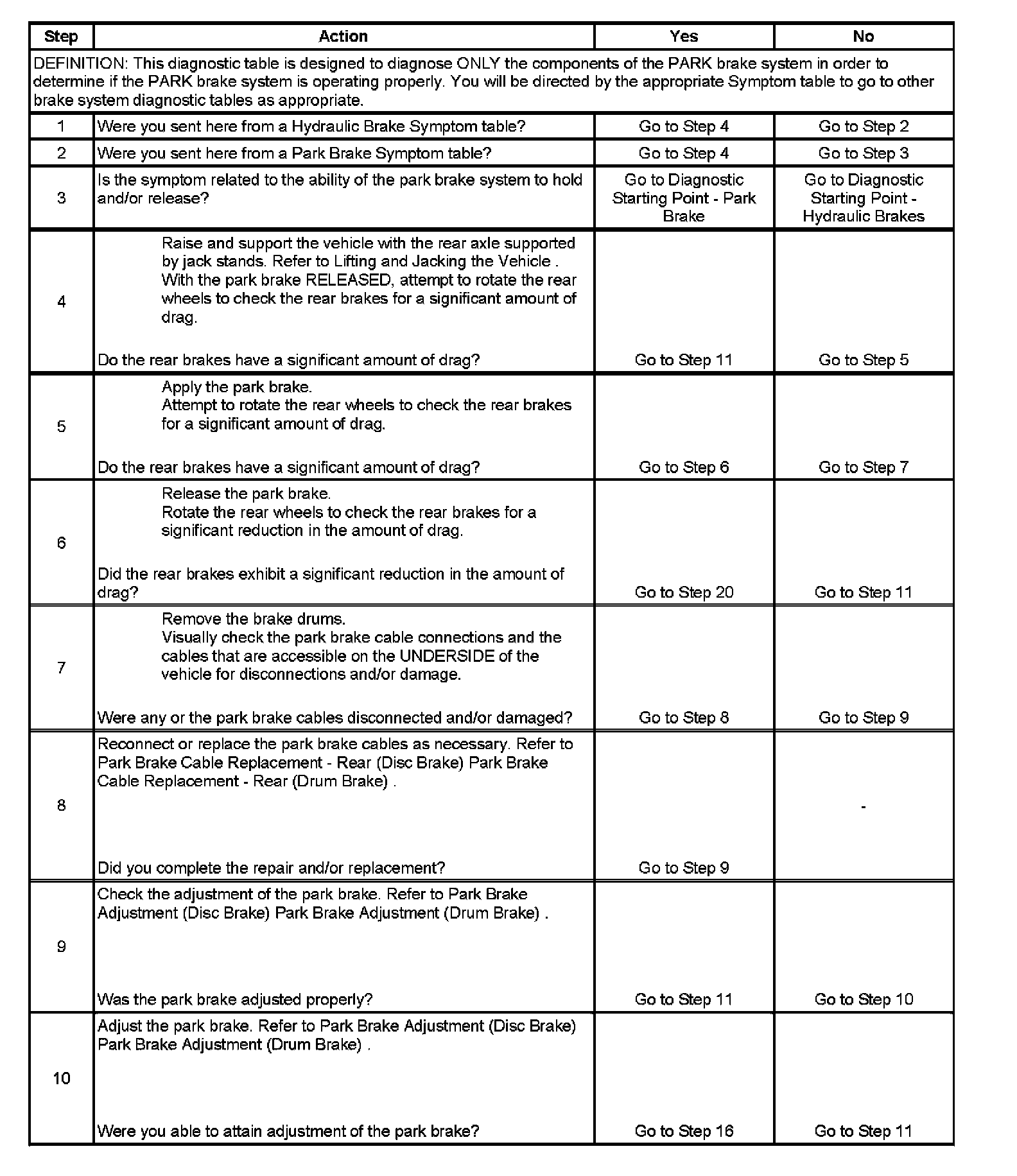

Step 1 - Step 10:

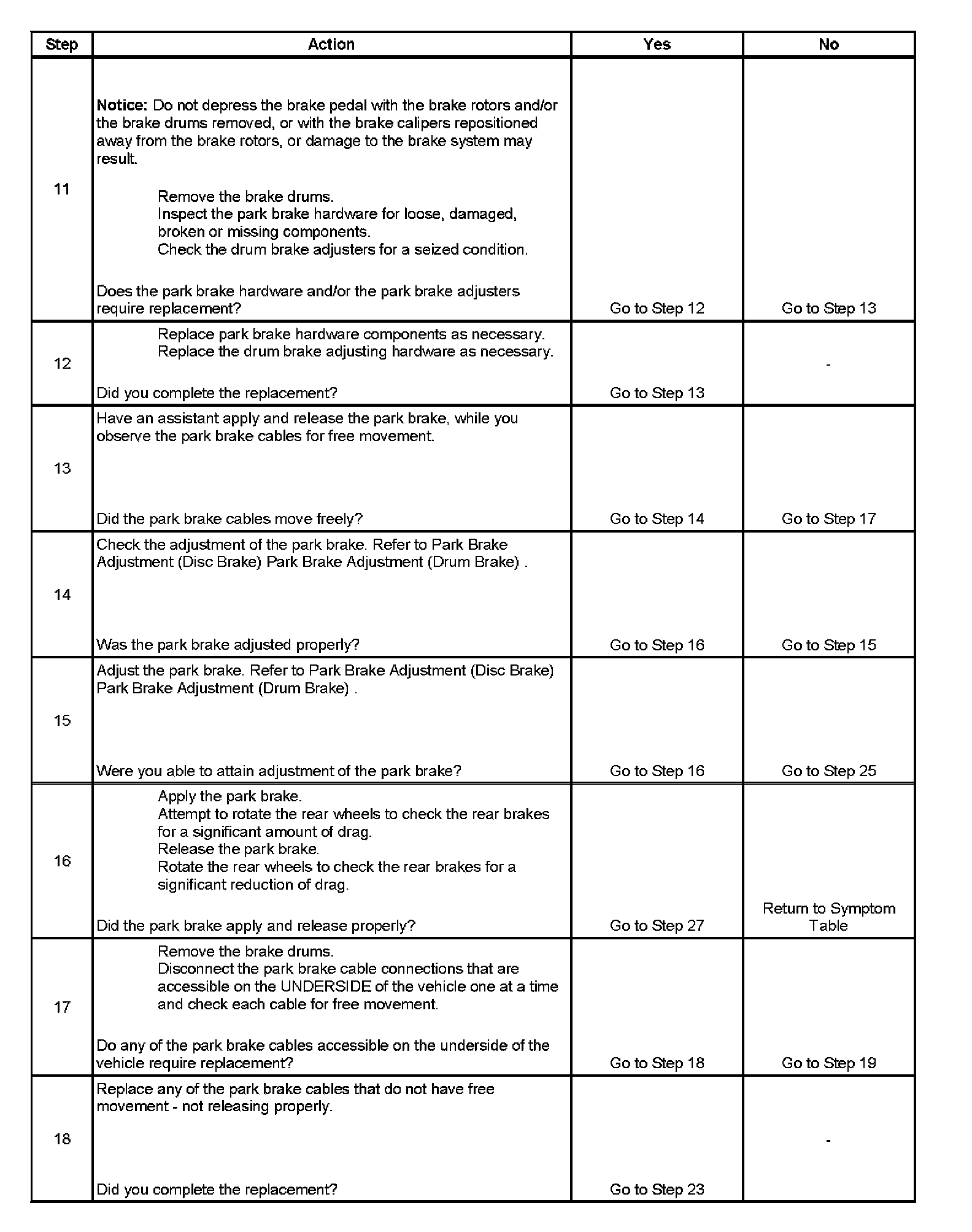

Step 11 - Step 18:

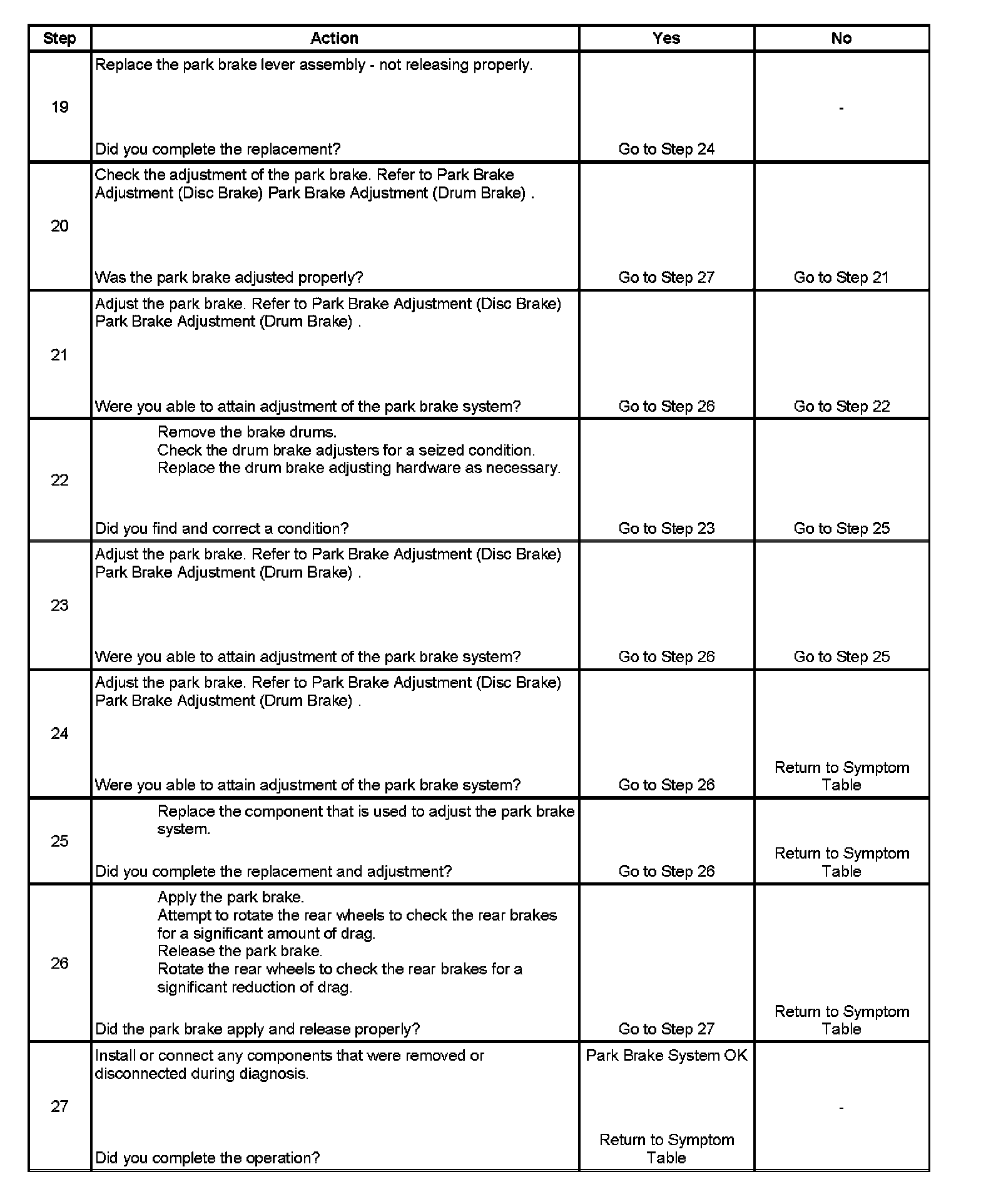

Step 19 - Step 27:
