Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Testing and Inspection >> Component Tests and General Diagnostics >> Brake Assist System Diagnosis

Brake Assist System Diagnosis



Brake Assist System Diagnosis

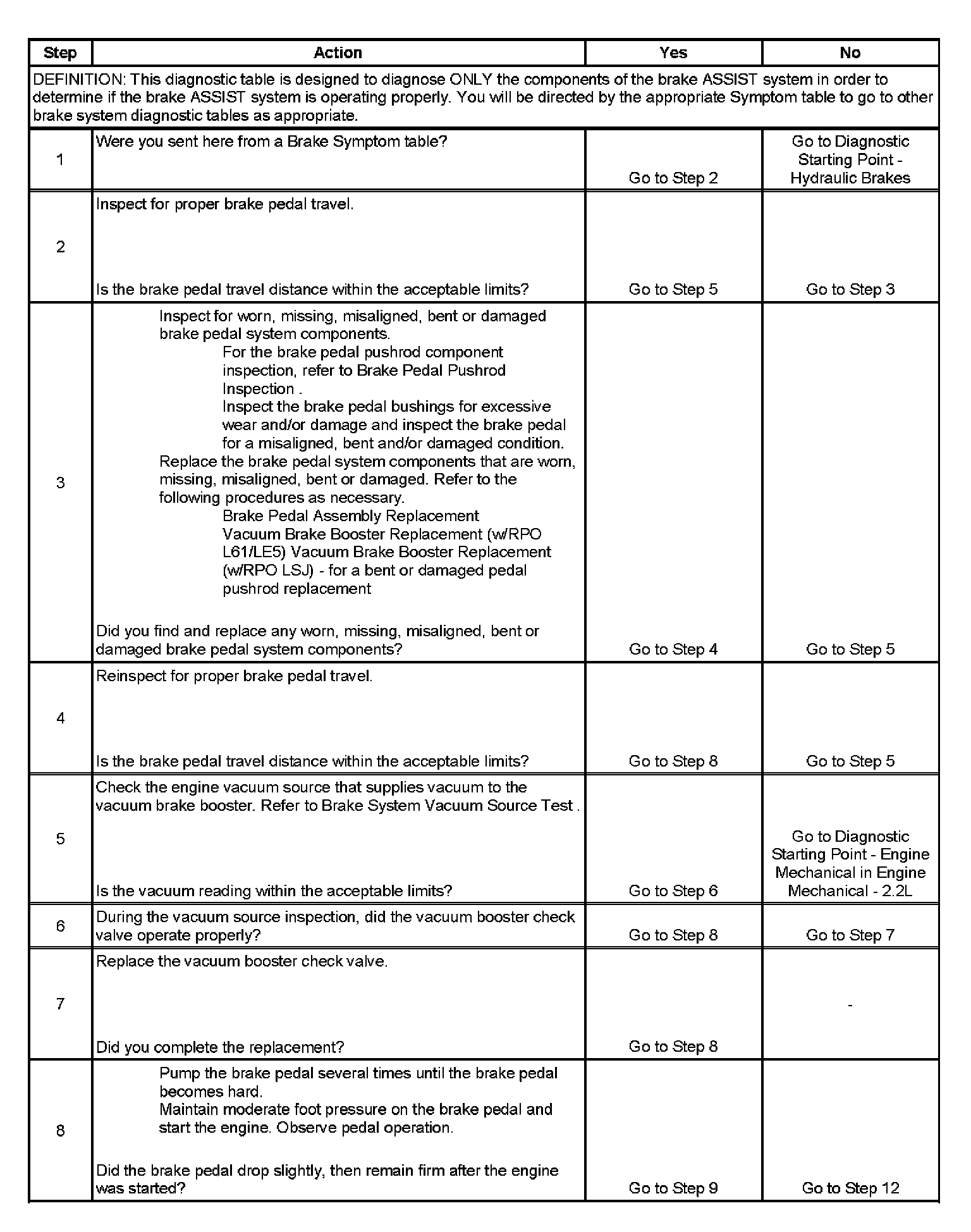

Step 1 - Step 8:

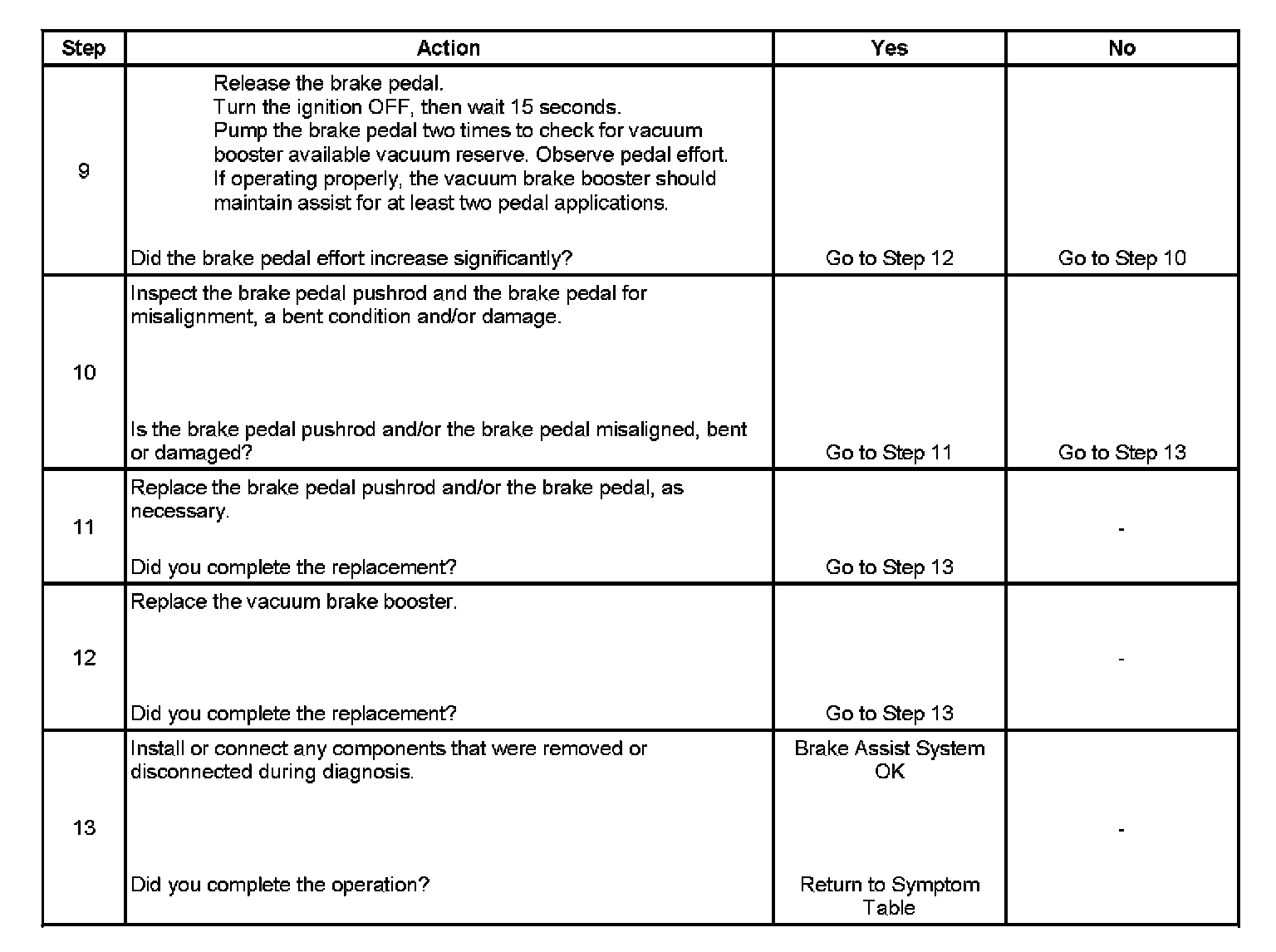

Step 9 - Step 13:
