Power Door Lock Switch: Service and Repair

Power Door Lock Switch Replacement

Removal Procedure

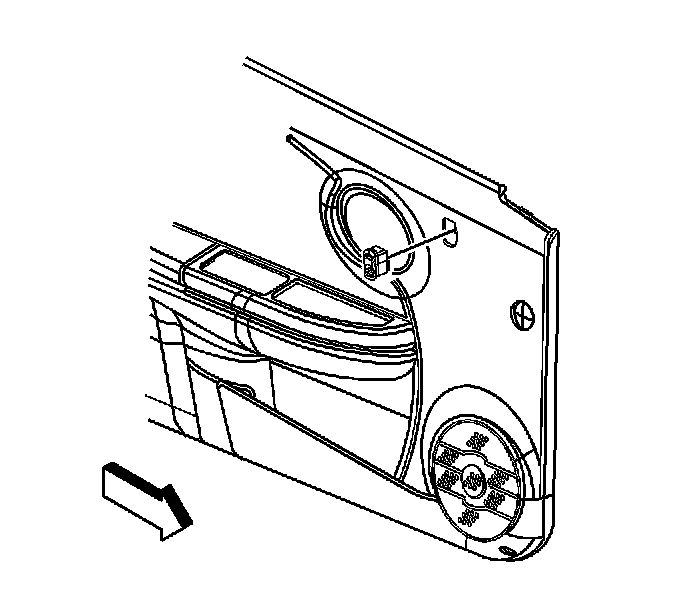

1. Using a flat-bladed tool, pry the switch from the door trim panel enough to expose the locking tabs.
2. Press the locking tab to remove the lock switch from the door trim panel.
3. Disconnect the electrical connector.
4. Remove the door lock switch.

Installation Procedure




1. Connect the electrical connector.
2. Position the door lock switch in the door trim panel.
3. Install the door lock switch pressing in until fully seated.
