Seat Back Cover, Pad, and Back Panel Replacement - Rear Split Folding Seat

Seat Back Cover, Pad, and Back Panel Replacement - Rear Split Folding Seat

Removal Procedure




1. Remove the rear seat back.

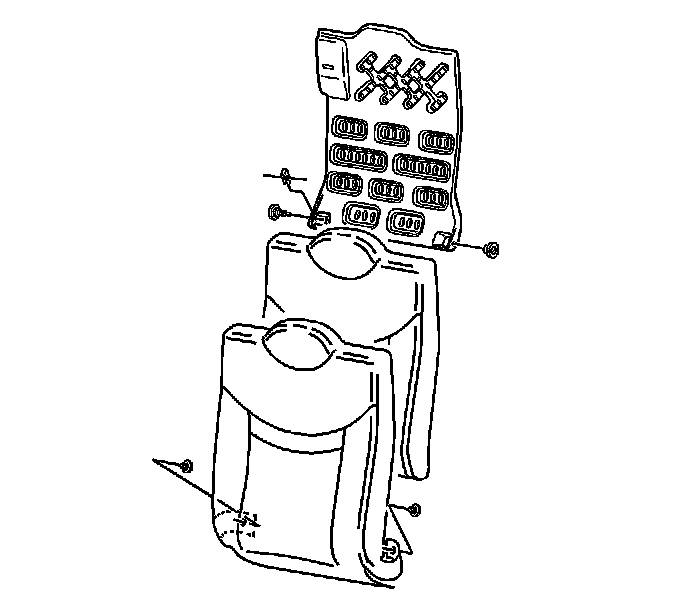

2. Disconnect the upper and lower J-hook retainers.




3. Lift the seat back cover enough to expose the rear push-in retainers.
4. Remove the push-in retainers.






Notice: Use care when disengaging the hook and loop fasteners. The hook end may pull from the seat foam pad, requiring foam pad replacement.

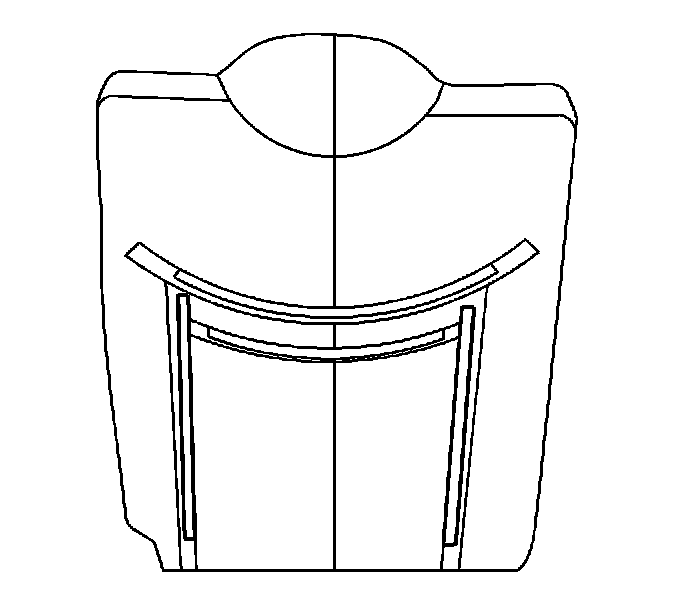

5. Carefully disengage the hook and loop retainers and remove the seat back trim cover.
6. Remove the seat back pad from the seat back panel.

Installation Procedure




1. Place the seat back pad on the seat back panel.
2. Install the seat back trim cover.




3. Push down on the hook and loop locations to ensure that the fasteners engage.




4. Install the push-in retainers.




5. Install the upper and lower J-hook retainers.
6. Install the rear seat back.
