Trim Bezel Replacement - Sunroof/Moonroof Rail Seat Belt Webbing

Trim Bezel Replacement - Sunroof/Moonroof Rail Seat Belt Webbing

Removal Procedure




1. Remove the anchor bolt from the front seat belt.
2. Remove the seat belt webbing from the front seat head restraint webbing guide.




3. Remove the door striker trim by pulling on the trim.
4. Remove the weatherstrip in the bezel area.

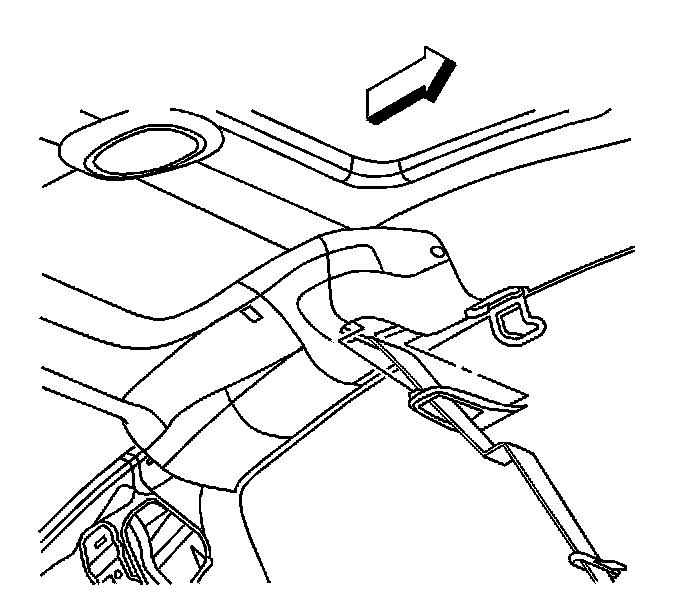

5. Remove the webbing trim bezel outboard by sliding the bezel from the headliner.
6. Slide the trim bezel off of the seat belt webbing and remove the bezel from the vehicle.

Installation Procedure




1. Route the seat belt webbing through the trim bezel.
2. Slide the trim bezel into the slot in the headliner.
3. Replace the weatherstrip.




4. Position the door striker trim in the vehicle.
5. Push on the trim to engage the trim clips.






Notice: Refer to Fastener Notice in Service Precautions.

6. Install the seat belt anchor bolt.

Tighten the bolt to 45 N.m (33 lb ft).

7. Install the seat belt webbing in the head restraint webbing guide.
