Garnish Molding Replacement - Center Pillar Upper

Garnish Molding Replacement - Center Pillar Upper

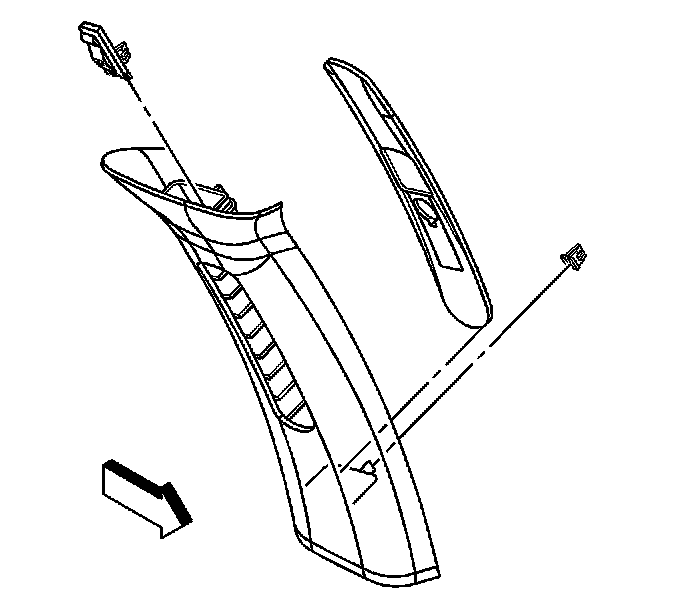

Removal Procedure




1. Remove the height adjuster knob for the seat belt webbing:
1. Insert a small awl into the hole underneath the knob and push.
2. Lift up on the bottom of the knob. Unsnap the top of the knob from the seat belt height adjuster.




2. Remove the bolt from the adjustable guide loop on the front seat belt.
3. Pull the lower end of the center trim inboard to disengage the lower clip.
4. Remove the center pillar trim from the upper trim clip by sliding the trim up.

Installation Procedure




1. Install the center pillar trim to the upper trim clip by sliding the trim down. Ensure that the trim is properly seated in the upper clip.
2. Push the lower trim clip to install the clip.






Notice: Refer to Fastener Notice in Service Precautions.

3. Install the bolt to the adjustable guide loop on the front seat belt.

Tighten the bolt to 45 N.m (33 lb ft).

4. Install the height adjuster knob.
1. Snap the top end of the knob onto the seat belt height adjuster.
2. Push on the bottom of the knob until the knob snaps into place.
5. Inspect the seat belt for proper operation.
