Front Floor Console Rear Cup Holder Replacement



Front Floor Console Rear Cup Holder Replacement

Removal Procedure

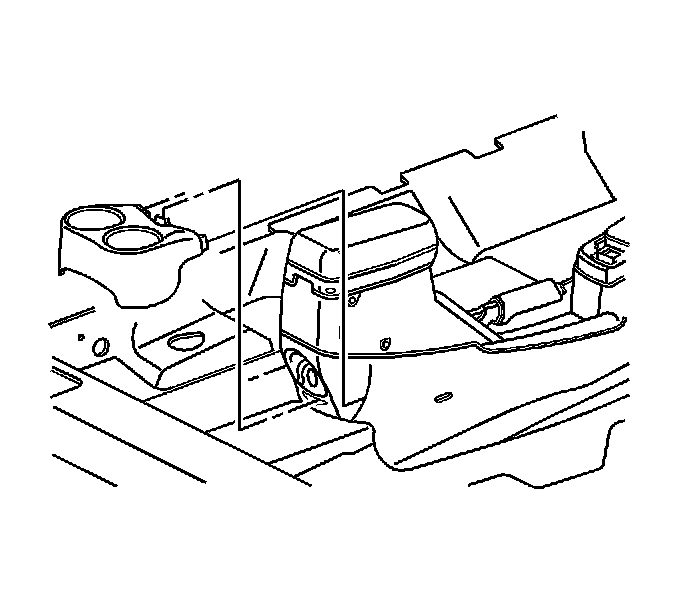

Unsnap the rear cupholder from the console.

Installation Procedure





Align the rear cupholder to the console and snap into place.
