Front Floor Console Accessory Power Rear Receptacle Cover Replacement



Front Floor Console Accessory Power Rear Receptacle Cover Replacement

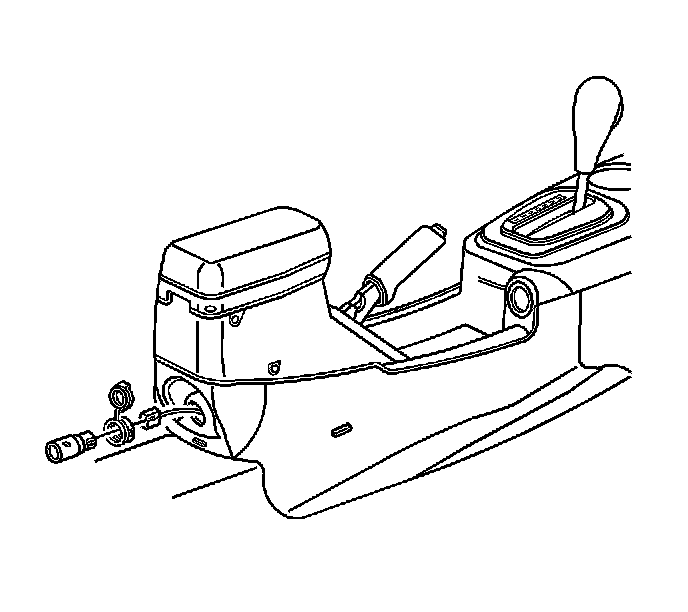

Removal Procedure




1. Remove the power accessory receptacle.
2. Remove the power outlet cover.

Installation Procedure




1. Position the power outlet cover with the key to the slot into the power outlet hole.
2. Install the power accessory receptacle.
