Front Bumper Fascia Grille Replacement - Lower

Front Bumper Fascia Grille Replacement - Lower

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.




2. Disconnect the fog lamp bulb connector, if equipped.
3. Remove the front fascia.

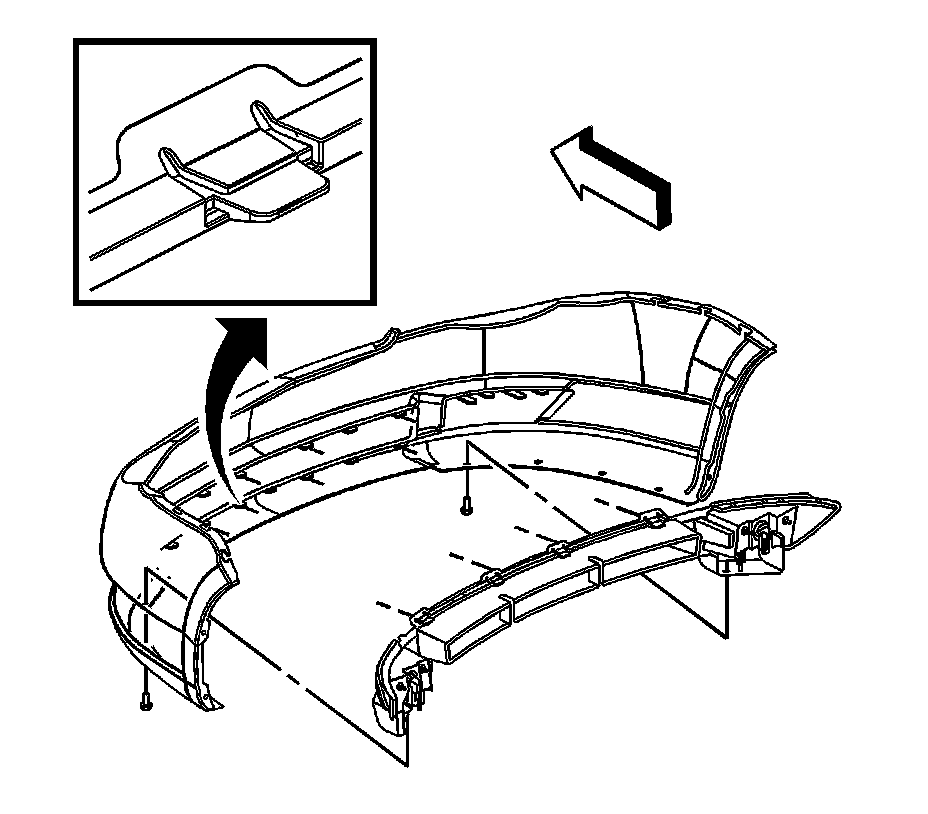

4. Remove the screws from the lower grille to the fascia.
5. Remove the lower grille from the fascia.

Installation Procedure




1. Position the lower grille to the fascia. Press the grille into place.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the lower grille retaining screws.

Tighten the screws to 2.5 N.m (22 lb in).

3. Install the front fascia.




4. Connect the fog lamp bulb connector, if equipped.
5. Lower the vehicle.
