Trunk / Liftgate Stop: Service and Repair

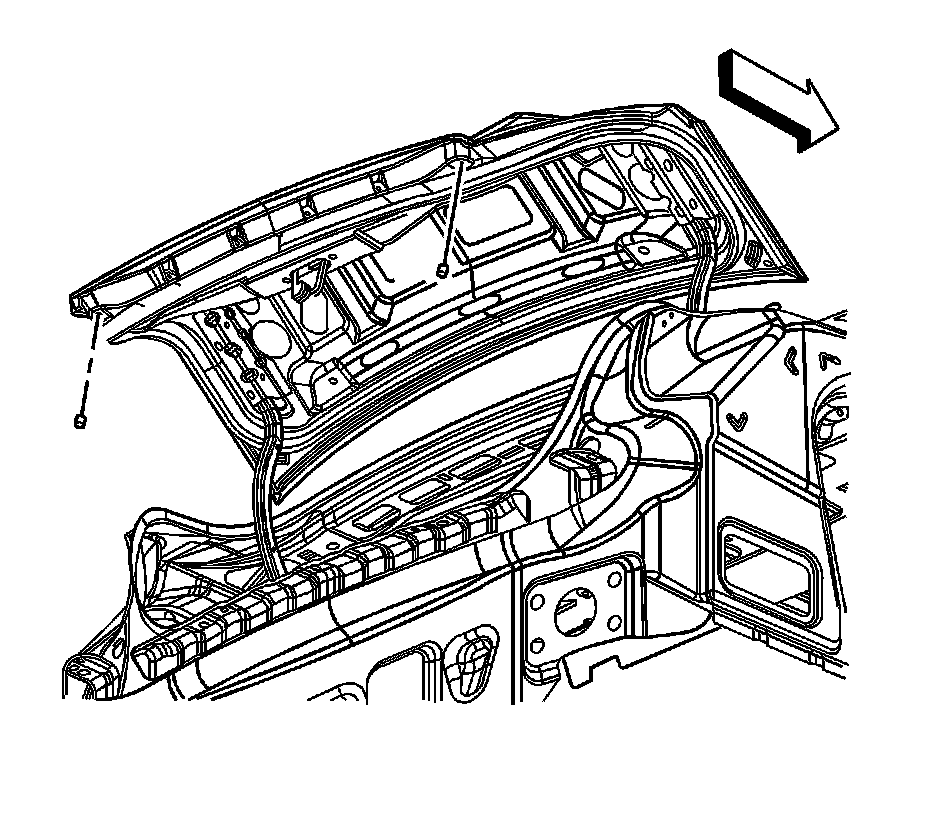

Overslam Bumper Replacement - Rear Compartment Lid

Removal Procedure

1. Open the rear compartment.




2. Remove the outer bumper from the compartment lid by pulling the bumper outward.

Installation Procedure




1. Install the outer bumper to the compartment lid by pushing the bumper until the bumper is fully seated.
2. Close the rear compartment.
