Front Door Limiter: Service and Repair

Front Side Door Check Strap Replacement

Removal Procedure

1. Remove the front door water deflector.




2. Remove the front door check link bolt.

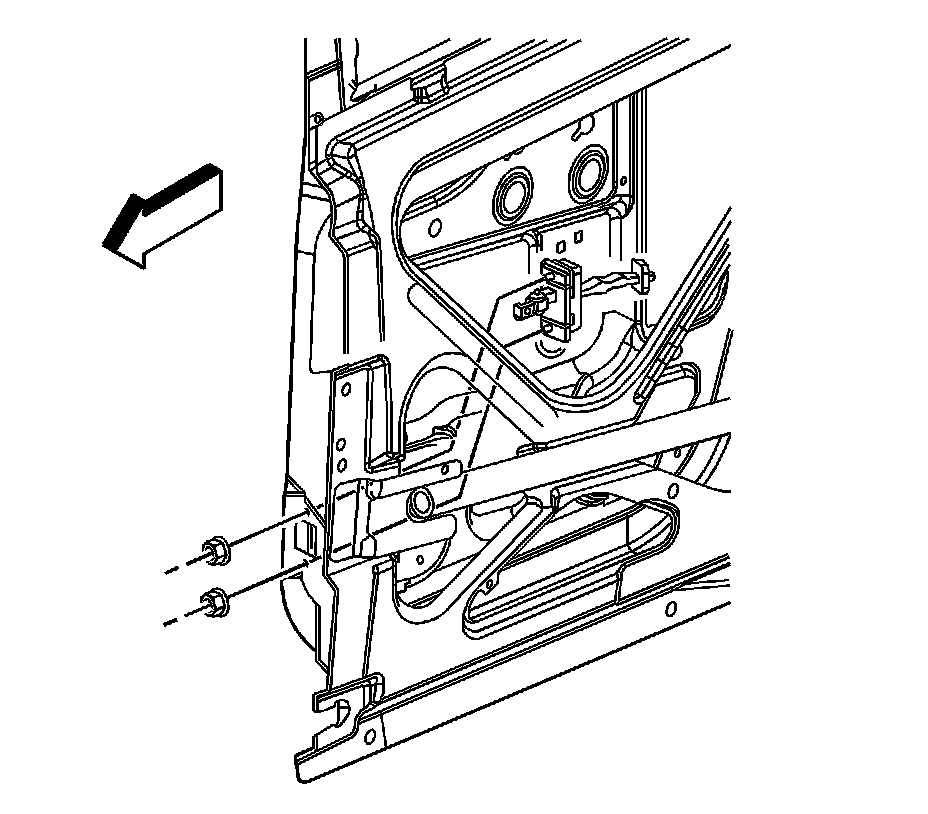

3. Remove the front door check link nuts.
4. Remove the front door check link from the door.

Installation Procedure






Important: The letters R and L are molded into the check link arm. If you are installing on the right side, the letter R must face up. If you are installing on the left side, the letter L must face up.

1. Position the front door check link to the door.

Notice: Refer to Fastener Notice.

2. Install the front door check link nuts.

Tighten the nuts to 10 N.m (89 lb in).




3. Install the front door check link bolt.

Tighten the bolt to 9 N.m (80 lb in).

4. Install the front door water deflector.
