Rear Bumper Shock Absorber: Service and Repair

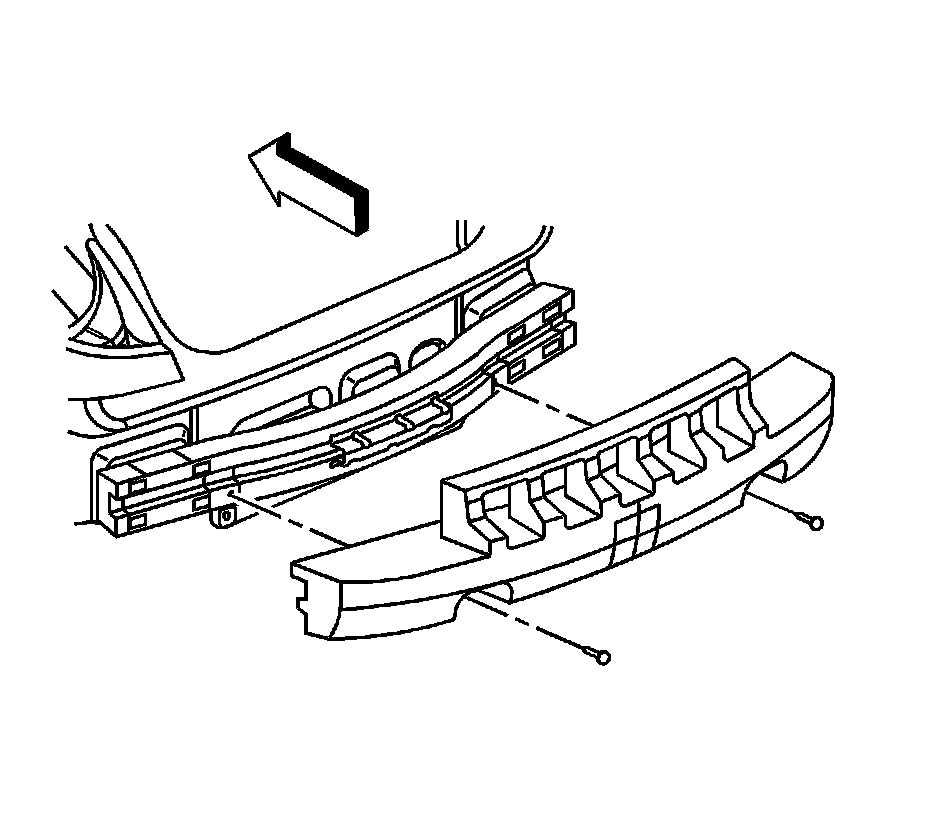

Energy Absorber Replacement - Rear

Removal Procedure

1. Remove the rear bumper fascia.




2. Remove the energy absorber retainers.
3. Remove the energy absorber from the impact bar.

Installation Procedure




1. Position the energy absorber to the impact bar.
2. Install the energy absorber push-in retainers.
3. Install the rear bumper fascia.
