Rear Energy Absorber Replacement

Rear Energy Absorber Replacement


Removal Procedure

1.Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Service and Repair .

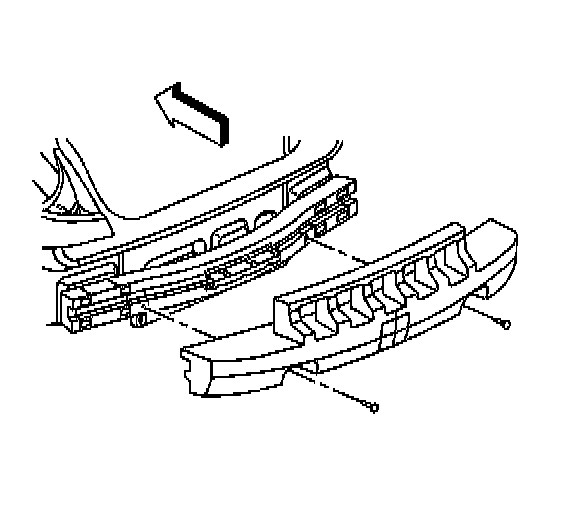

2.Remove the energy absorber retainers.

3.Remove the energy absorber from the impact bar.

Installation Procedure





1.Position the energy absorber to the impact bar.

2.Install the energy absorber push-in retainers.

3.Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Service and Repair .
