Impact Bar Replacement - Rear Bumper

Impact Bar Replacement - Rear Bumper

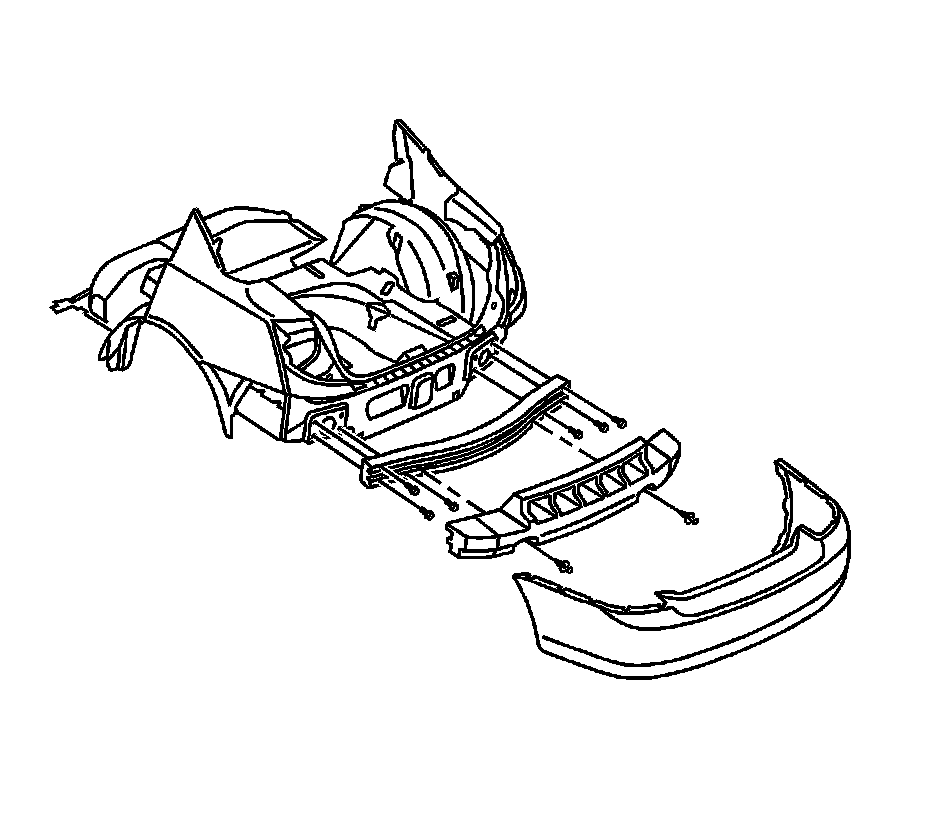

Removal Procedure

1. Remove the rear bumper fascia.




2. Remove the energy absorber.
3. Remove the bolts from the impact bar.
4. Remove the impact bar.

Installation Procedure




1. Position the impact bar to the rear end structure.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the impact bar retaining bolts.

Tighten the bolts to 30 N.m (22 lb ft).

3. Install the energy absorber.
4. Install the rear bumper fascia.
