Front Bumper Shock Absorber: Service and Repair

Energy Absorber Replacement - Front

Removal Procedure

1. Remove the front bumper fascia.

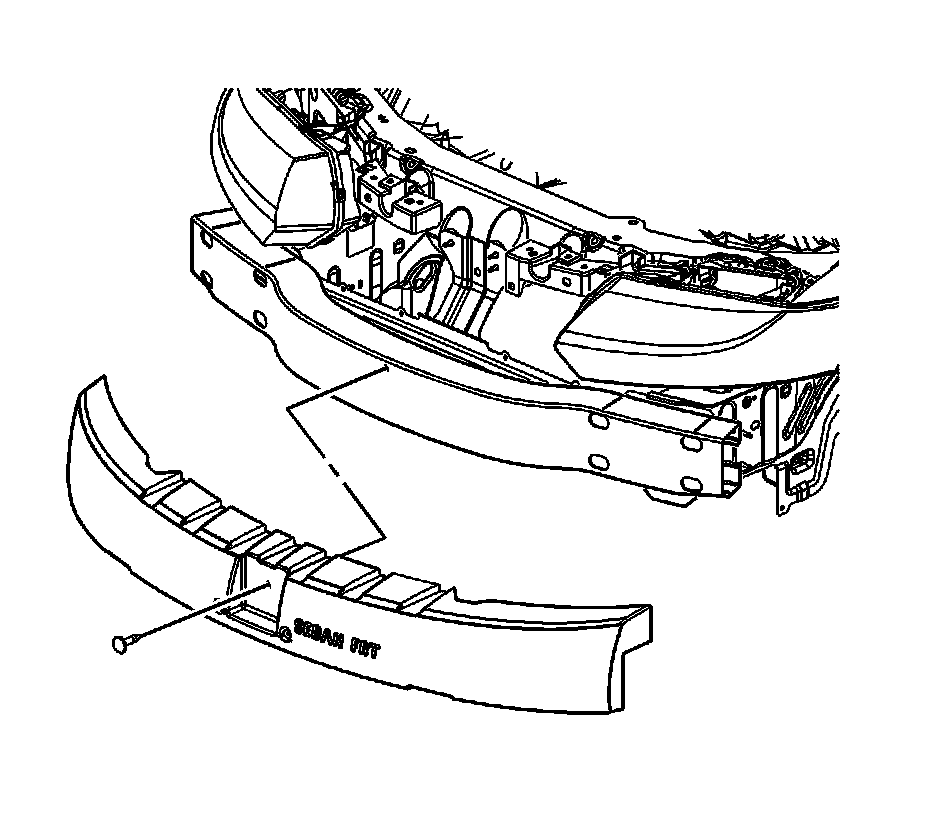

2. Remove the push-in retainers from the energy absorber.
3. Remove the energy absorber from the impact bar.

Installation Procedure




1. Position the energy absorber to the impact bar.
2. Install the push-in retainer to the energy absorber.
3. Install the front bumper fascia.
