Impact Bar Replacement - Front Bumper

Impact Bar Replacement - Front Bumper

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.

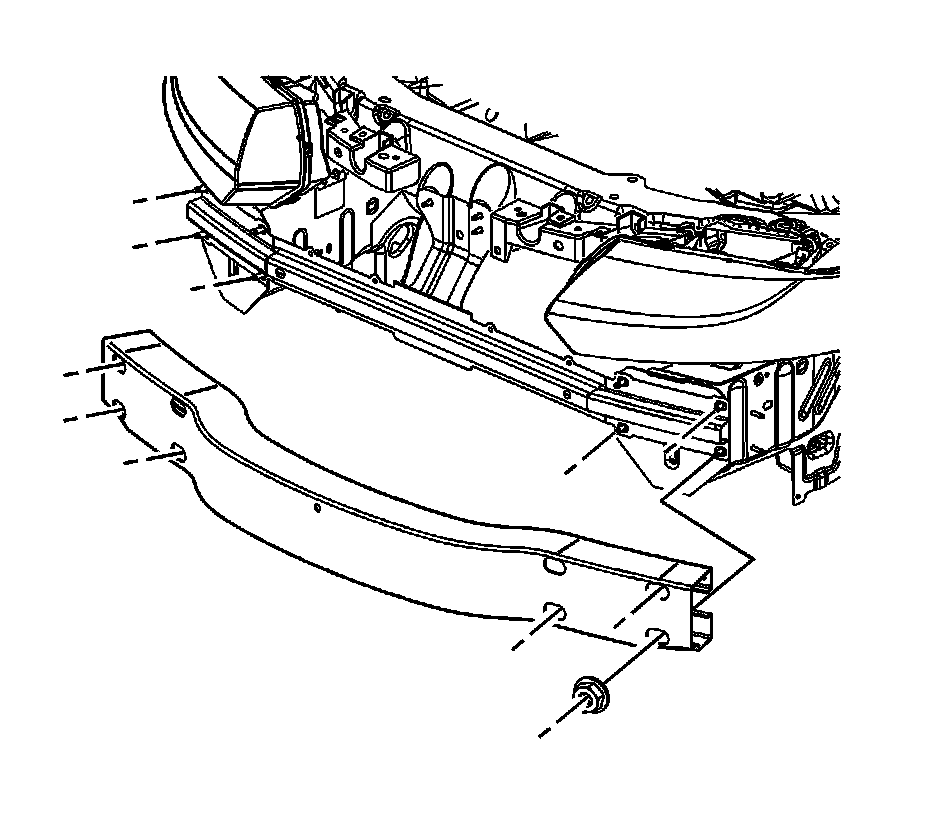

2. Remove the front fascia.
3. Remove the energy absorber.




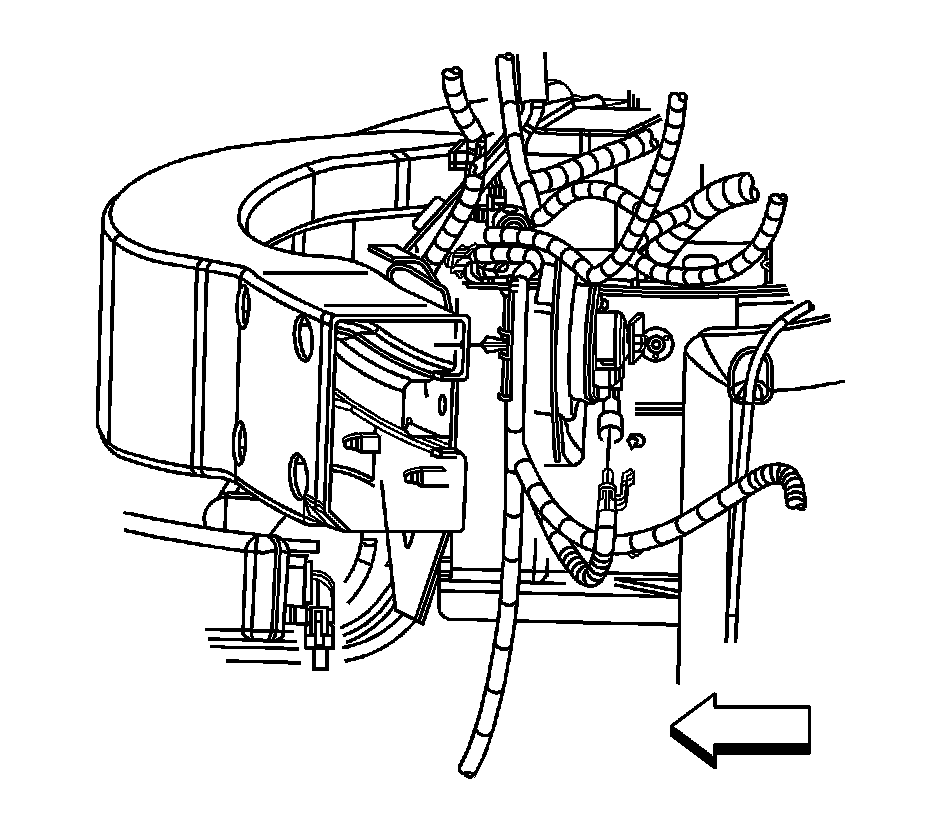

4. Remove the electrical harness clip from the impact bar.




5. Remove the nuts that secure the impact bar to the lower tie bar.
6. Remove the impact bar from the lower tie bar.

Installation Procedure




1. Position the impact bar to the lower tie bar.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the nuts to the impact bar.

Tighten the nuts to 30 N.m (22 lb ft).




3. Install the electrical harness clip to the impact bar.
4. Install the energy absorber.
5. Install the front fascia.
6. Lower the vehicle.
