Speaker Replacement - Rear

Speaker Replacement - Rear

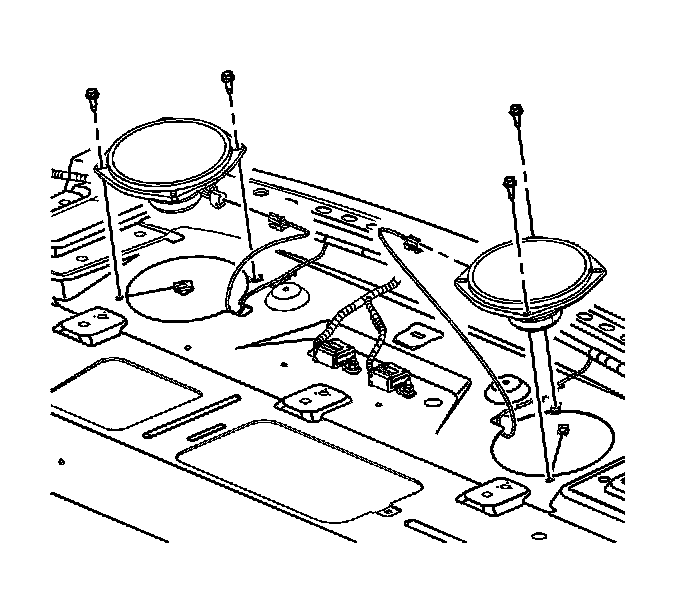

Removal Procedure




1. Remove the rear window panel trim.
2. Remove the rear speaker screws.
3. Remove the speaker from the rear shelf.
4. Disconnect the electrical connector from the speaker.
5. Remove the rear speaker from the vehicle.

Installation Procedure




1. Connect the electrical connectors.
2. Install the rear speaker to the rear shelf.

Notice: Refer to Fastener Notice.

3. Install the rear speaker screws.

Tighten the screws to 2.3 N.m (18 lb in).

4. Install the rear window panel trim.
