Amplifier: Service and Repair

Amplifier Replacement

Removal Procedure




1. Pull the release handle in the rear compartment to lower the rear seat backs.




2. Press the front tab on the retaining clip to release the front of the amplifier from the underside of the window shelf.

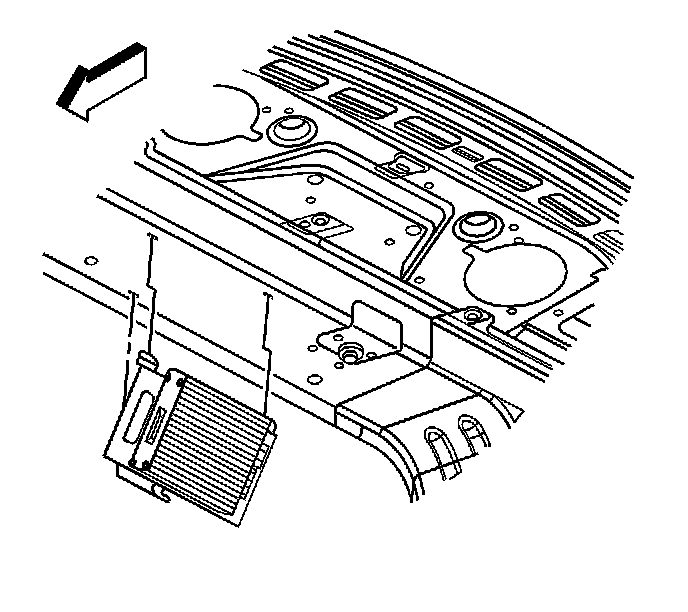

3. Pull the amplifier toward the passenger compartment to disengage the rear tabs from the shelf.




4. Disconnect the electrical connectors.
5. Remove the amplifier.

Installation Procedure




1. Connect the electrical connectors.




2. Insert the amplifier rear tabs in the window shelf.
3. Push up to engage the amplifier bracket forward clip.
4. Raise the rear seat backs.
5. Press down over the latch locations to ensure that the latches engage.
6. Pull up on the seat backs to ensure that the seat back latches are fully engaged.
7. Verify that the seat belts operate properly.
8. Refer to Programming and Relearning Programming and Relearning
