Antenna Cable Replacement

Antenna Cable Replacement

Removal Procedure

1. Remove the antenna.
2. Remove the front carpet retainer.

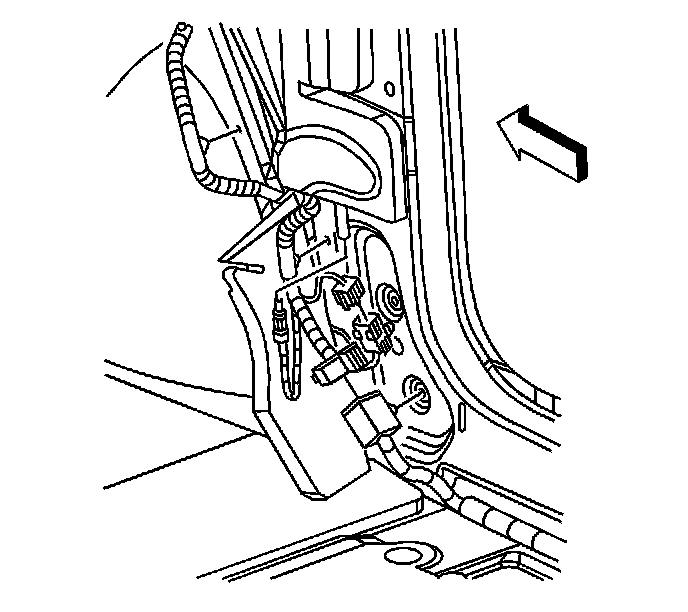

3. Reach under the passenger side of the instrument panel (I/P). Pull back the carpet and the dash mat to expose the antenna cable.
4. Disconnect the antenna cable from the I/P wiring harness.
5. Remove the antenna cable grommet.
6. Remove the antenna cable.

Installation Procedure




1. Install the antenna cable through the body hinge pillar.
2. Install the antenna grommet.
3. Install the antenna.
4. Connect the antenna cable to the I/P wiring harness.
5. Replace the dash mat and the carpet.
6. Install the front carpet retainer.
