Antenna, Navigation: Service and Repair

Navigation Antenna Replacement

Removal Procedure






Caution: Refer to SIR Caution.

1. Disable the SIR. Refer to SIR Disabling and Enabling.
2. Remove the headliner.
3. Disconnect the antenna cable.

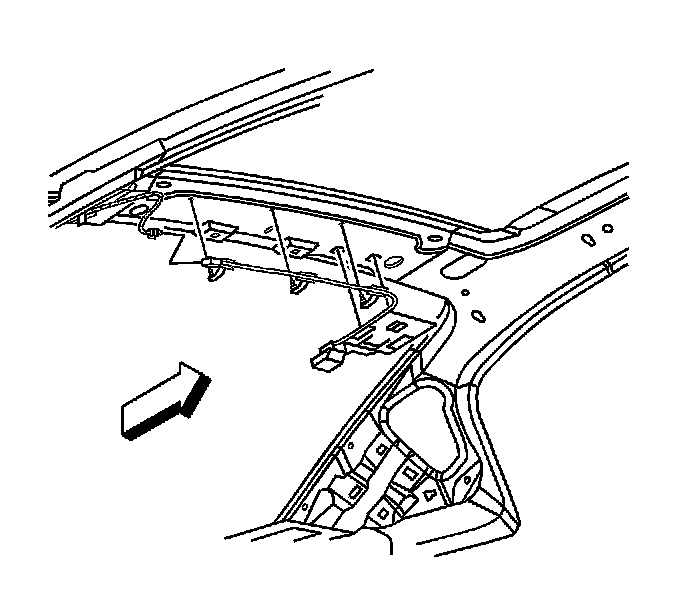

4. Disengage the cable fasteners from the roof.

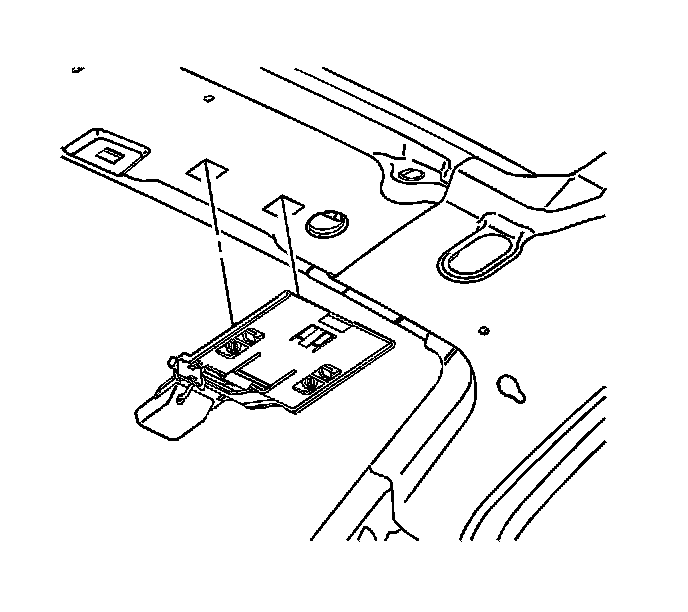

5. Squeeze the antenna tabs to disengage the navigation antenna from the roof.
6. Remove the navigation antenna from the vehicle.

Installation Procedure




1. Connect the antenna cable.
2. Install the antenna cable fasteners in the roof.
3. Position the navigation antenna.
4. Press on the antenna until the clips engage.
5. Install the headliner.
6. Enable the SIR. Refer to SIR Disabling and Enabling.
