P0567

DTC P0567

Circuit Description

The cruise control resume/accel switch is an input to the engine control module (ECM). The ECM monitors the cruise control resume/accel switch signal circuit in order to detect when the driver has requested to accelerate the set vehicle speed or to resume the cruise control system. The ECM module detects a voltage signal on the cruise control resume/accel switch signal circuit when the switch is applied. This DTC sets if the ECM detects that voltage is present on the cruise control resume/accel switch signal circuit for longer than 90 seconds.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P0567 Cruise Control Resume Switch Circuit

Conditions for Running the DTC

* The ignition is ON.
* The cruise control switch is ON.

Conditions for Setting the DTC

The ECM detects that the resume/accel switch is applied for longer than 90 seconds.

Action Taken When the DTC Sets

* The ECM stores the DTC information into memory when the diagnostic runs and fails.
* The malfunction indicator lamp (MIL) will not illuminate.
* The ECM records the operating conditions at the time the diagnostic fails. The ECM stores this information in the Failure Records.
* The cruise control system is disabled.

Conditions for Clearing the MIL/DTC

* A last test failed, or the current DTC, clears when the diagnostic runs and does not fail.
* A history DTC clears after 40 consecutive warm-up cycles, if failures are not reported by this or any other emission related diagnostic.
* Use a scan tool in order to clear the MIL/DTC.

Diagnostic Aids

Ensure that the resume/accel switch is not stuck or sticking in the engaged position.

For an intermittent condition, refer to Testing for Intermittent Conditions and Poor Connections in Diagnostic Aids. Component Tests and General Diagnostics

Test Description

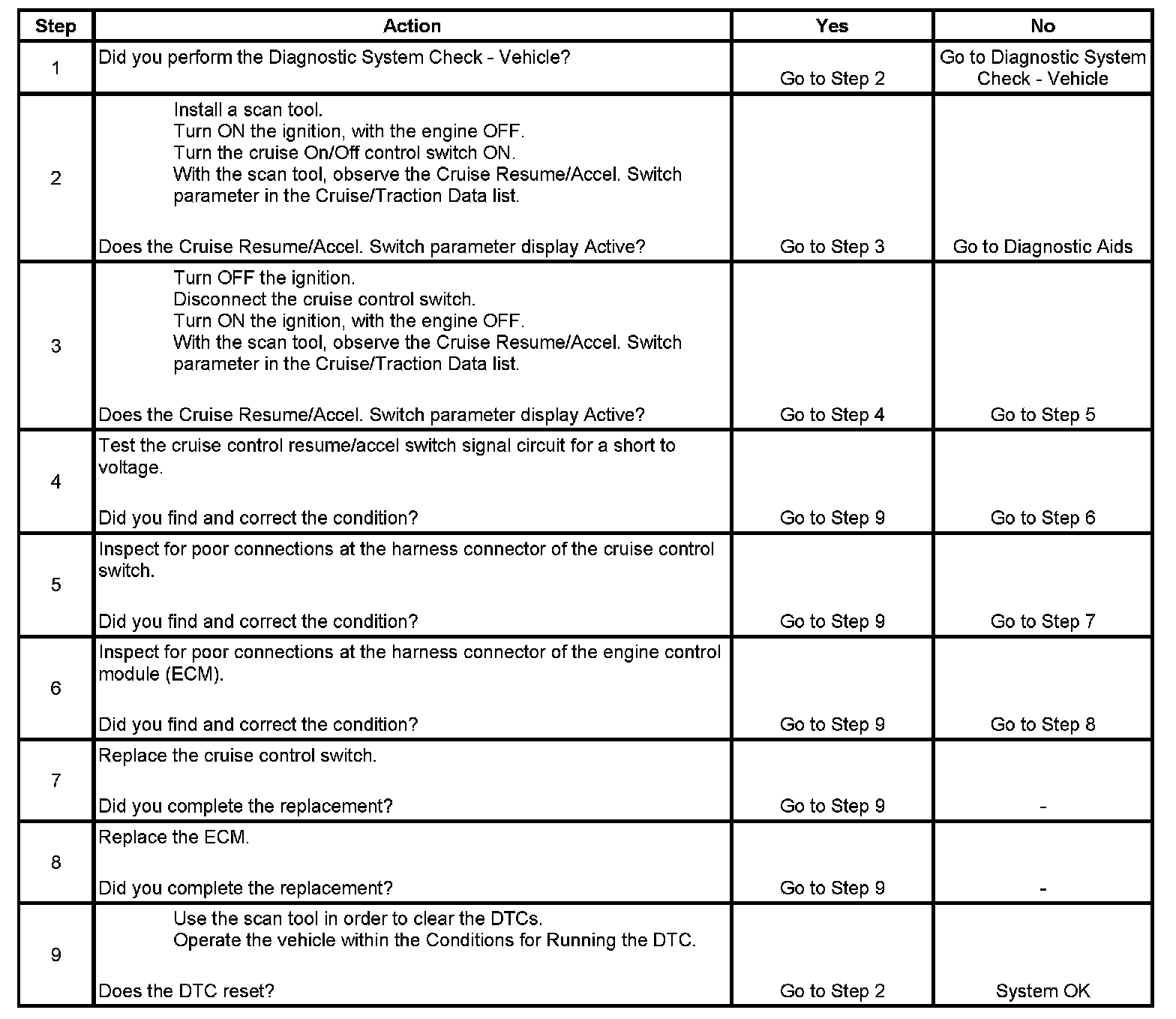

Step 1 - Step 9:

The numbers below refer to the step numbers on the diagnostic table.
2. This step determines if condition is present.
