DTC P0463 (2.0L and 2.2L)

DTC Descriptor

DTC P0463
- Fuel Level Sensor Circuit High Voltage

Diagnostic Fault Information

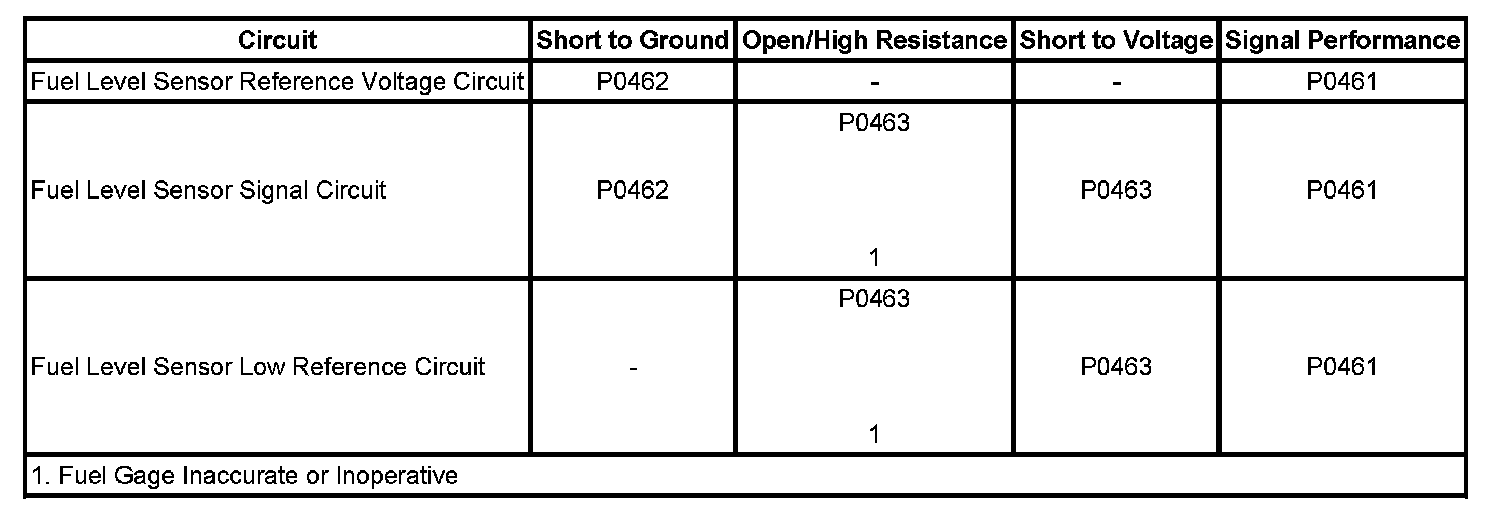

Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Initial Inspection and Diagnostic Overview






Circuit/System Description

The fuel level sensor changes resistance in response to the fuel level. The powertrain control module (PCM) or the engine control module (ECM) monitors the signal circuit of the fuel level sensor in order to determine the fuel level. When the fuel tank is full, the sensor resistance is high and the PCM/ECM senses a high signal voltage. When the fuel tank is empty, the sensor resistance is low and the PCM/ECM senses a low signal voltage. The PCM/ECM uses the signal circuit of the fuel level sensor in order to calculate the percentage of remaining fuel in the tank. The PCM/ECM sends the fuel level percentage via GMLAN serial data circuit to the body control module (BCM). The BCM sends a GMLAN message to the instrument panel cluster (IPC) in order to display the fuel level percent on the fuel gage. The fuel information is also used for misfire and evaporative emission (EVAP) diagnostics.

Conditions for Running the DTC

* The ignition is ON, with the engine running.
* The system voltage is between 9-16 volts.

Conditions for Setting the DTC

* The sensor output is greater than 2.9 volts.
* The above condition is present for greater than 30 seconds.

Action Taken When the DTC Sets

* The fuel gage defaults to empty.
* The low fuel indicator illuminates.
* The PCM/ECM records the operating conditions at the time that the diagnostic test fails. The PCM/ECM displays the failure information in the Failure Records on the scan tool.

Conditions for Clearing the DTC

* The DTC becomes history when the conditions for setting the DTC are no longer present.
* The history DTC clears after 40 malfunction-free warm-up cycles.
* The PCM/ECM receives a clear code command from the scan tool.

Circuit/System Verification

With the scan tool installed and the ignition ON, the Fuel Tank Level Remaining parameter in the PCM/ECM EVAP Data List indicates a value at or greater than 98 percent.

Circuit/System Testing

1. Ignition OFF, disconnect the fuel level sensor connector.
2. Install an amp fused jumper wire between the signal circuit and the low reference circuit of the fuel level sensor. With the scan tool, observe the Fuel Tank Level Remaining parameter and verify the Fuel Tank Level Remaining parameter is greater than 4 percent.

• If greater than 4 percent, test the fuel level sensor signal and low reference circuits for a short to voltage or an open/high resistance. If the circuits test normal, replace the ECM/PCM.

3. If all circuits tests normal, test or replace the fuel level sensor.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure.

* Fuel Level Sensor Replacement for the 2.0L engine
* Fuel Level Sensor Replacement (RPO NT7) Fuel Level Sensor Replacement (RPO NU6) for the 2.2L engine
* Control Module References for the ECM/PCM and IPC replacement, setup and programming Verification Tests
