C0475
DTC C0475

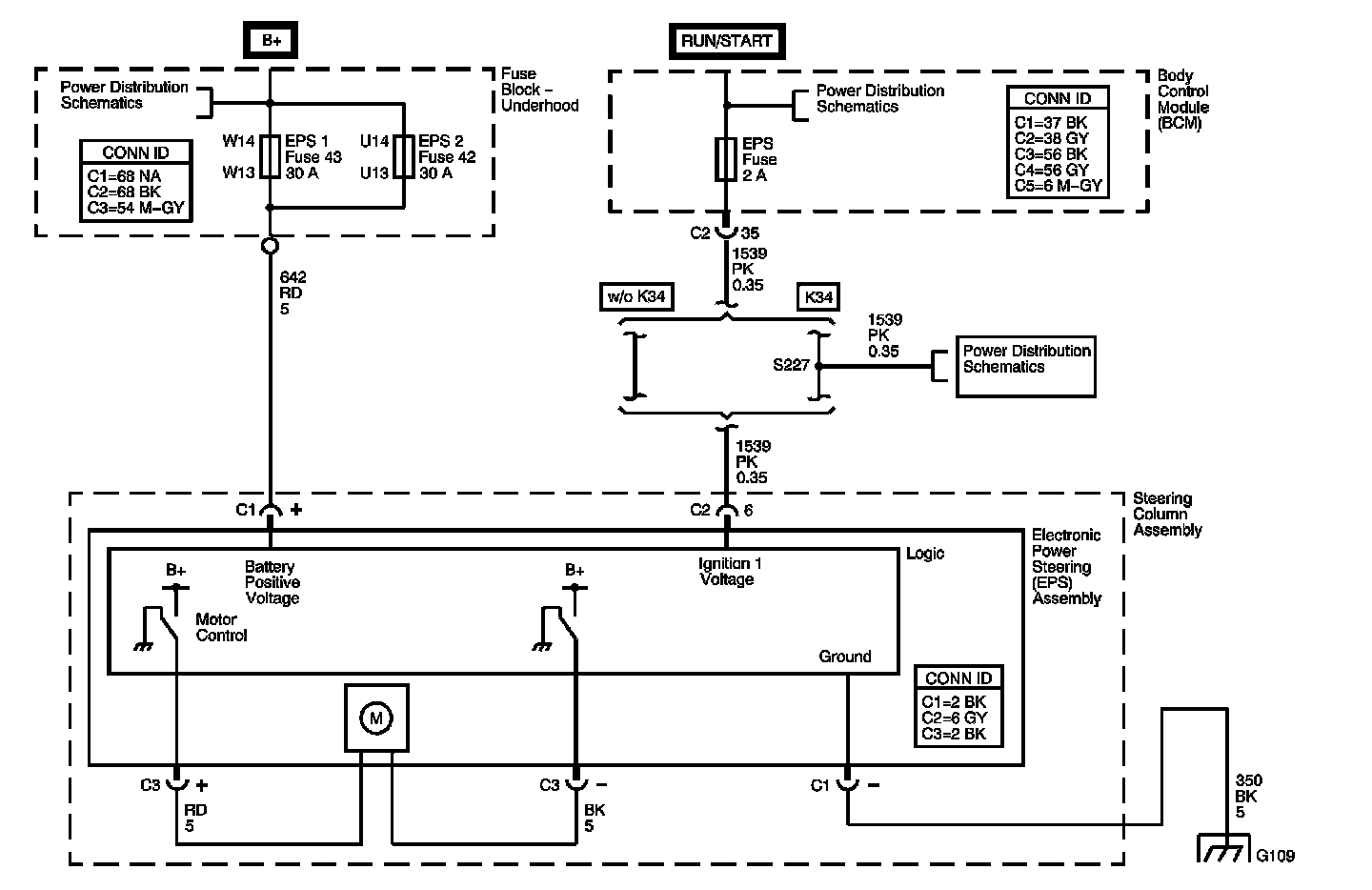

Circuit Description
The power steering control module (PSCM) continuously monitors the voltage and current levels being commanded to the electric power steering (EPS) motor. The PSCM compares the desired and actual current levels to detect malfunctions in the EPS motor, or the circuits to the motor.
DTC Descriptor

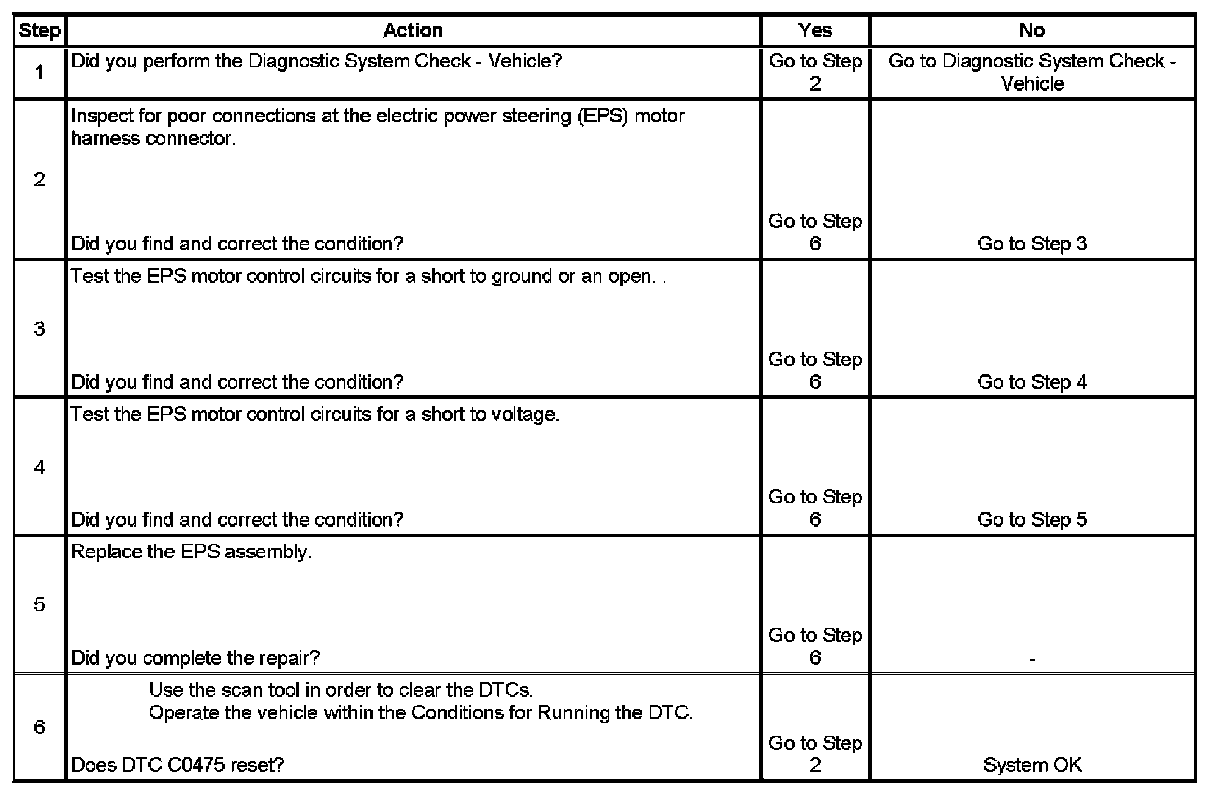

This diagnostic procedure supports the following DTC:
DTC C0475 Electric Steering Motor Circuit
Conditions for Running the DTC
* The ignition is ON.
* No voltage DTCs are present.
Conditions for Setting the DTC
A short to ground, short to voltage, or an open in the EPS motor, or the circuits to the motor.
Action Taken When the DTC Sets
* A DTC C0475 is stored in memory.
* The IPC message center displays the PWR STR warning message.
* No steering assist is provided.
Conditions for Clearing the DTC
* A current DTC will clear on the next malfunction free ignition cycle.
* A history DTC will clear after 100 consecutive malfunction free ignition cycles.
* Using a scan tool
