B1030



DTC B1025-B1060

DTC Descriptors

DTC B1025 01
- Audio (+ ) Output Left Front Circuit Short to Battery

DTC B1025 02
- Audio (+) Output Left Front Circuit Short to Ground

DTC B1025 04
- Audio (+) Output Left Front Circuit Open

DTC B1030 01
- Audio (-) Output Left Front Circuit Short to Battery

DTC B1030 02
- Audio (-) Output Left Front Circuit Short to Ground

DTC B1030 04
- Audio (-) Output Left Front Circuit Open

DTC B1035 01
- Audio (+) Output Right Front Circuit Short to Battery

DTC B1035 02
- Audio (+) Output Right Front Circuit Short to Ground

DTC B1035 04
- Audio (+) Output Right Front Circuit Open

DTC B1040 01
- Audio (-) Output Right Front Circuit Short to Battery

DTC B1040 02
- Audio (-) Output Right Front Circuit Short to Ground

DTC B1040 04
- Audio (-) Output Right Front Circuit Open

DTC B1045 01
- Audio (+) Output Left Rear Circuit Short to Battery

DTC B1045 02
- Audio (+) Output Left Rear Circuit Short to Ground

DTC B1045 04
- Audio (+) Output Left Rear Circuit Open

DTC B1050 01
- Audio (-) Output Left Rear Circuit Short to Battery

DTC B1050 02
- Audio (-) Output Left Rear Circuit Short to Ground

DTC B1050 04
- Audio (-) Output Left Rear Circuit Open

DTC B1055 01
- Audio (+) Output Right Rear Circuit Short to Battery

DTC B1055 02
- Audio (+) Output Right Rear Circuit Short to Ground

DTC B1055 04
- Audio (+) Output Right Rear Circuit Open

DTC B1060 01
- Audio (-) Output Right Rear Circuit Short to Battery

DTC B1060 02
- Audio (-) Output Right Rear Circuit Short to Ground

DTC B1060 04
- Audio (-) Output Right Rear Circuit Open

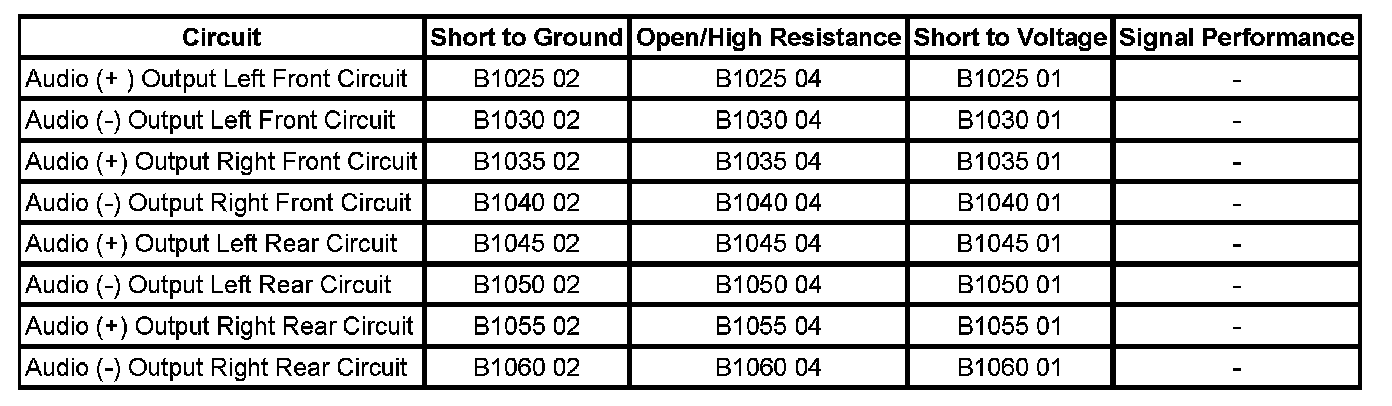

Diagnostic Fault Information

Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Initial Inspection and Diagnostic Overview






Circuit/System Description

The radio supplies 4 audio signals to 4 individual speakers or an amplifier if equipped.

Conditions for Running the DTC

The radio is ON.

Conditions for Setting the DTC

The radio sets a current status for this DTC when a short to ground, short to voltage or an open is detected on any of the 4 speaker input signal circuits between the radio and speakers or radio and amplifier (if equipped).

Action Taken When the DTC Sets

No sound is present from one or more of the speakers.

Conditions for Clearing the DTC

The fault condition is no longer present.

Circuit/System Verification

All speakers should function properly and the DTC does not reset.

Circuit/System Testing

Important: Verify the DTC is current before performing this diagnostic

W/O Amplifier

1. Test the suspect audio output signal circuit from the radio to the speakers for an open short to ground or short to power.

If all circuits test normal, replace the radio.

With Amplifier

1. Disconnect the amplifier harness connector containing the audio output signal circuits (from the radio).
2. Turn ON and operate the radio. Center the fade and balance adjustments on the radio.
3. At the amplifier harness connector, With a DMM verify there is 5-6 volts across all of the (-) and (+) audio output signal circuits (from the radio).

If the voltage is not within the specified range on one or more audio input signal circuits test / repair short to B+, short to ground, open on the suspect audio output signal circuits or replace the radio.

If the voltage is within the specified range on all audio output signal circuits replace the amplifier.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure.

* Speaker Replacement Reference
* Control Module References for Amplifier and Radio replacement, setup, and programming Verification Tests
