B0053
DTC B0053
Circuit Description
Important: The seat belt pretensioners may deploy for impacts that are not severe enough to warrant frontal or side air bag deployment. The sensing and diagnostic module (SDM) is capable of sustaining 3 pretensioner deployment events, or 1 frontal or side deployment event. After the maximum number of deployments has occurred, DTC B0051 and B0053 become latched codes, which cannot be cleared.
The inflatable restraint SDM contains sensing devices that convert vehicle velocity changes to electrical signals. The SDM processes the generated electrical signals and compares them to values stored in memory. When the generated signals exceed the stored values, the SDM performs additional signal processing and compares the generated signals to signals stored in memory. When 2 of the generated signals exceed the stored values, the SDM will cause current to flow through the deployment loops, deploying the air bags and/or pretensioners. DTC B0053 will set along with DTC B0051 when a deployment occurs while a circuit malfunction is present in any one of the deployment loops.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC B0053 Deployment Commanded with Loop DTCs Present
Conditions for Running the DTC
Ignition 1 voltage is within the normal operating voltage range.
Conditions for Setting the DTC
The DTC will set if one of the following conditions occurs:
* The SDM detects a frontal impact of sufficient force to warrant deployment of the frontal inflator modules and/or pretensioners.
* The SDM detects a side impact of sufficient force to warrant deployment of a roof rail inflator module.
Action Taken When the DTC Sets
* The SDM sets DTC B0051.
* The SDM sets DTC B0053.
* The SDM commands the AIR BAG indicator ON via class 2 serial data.
* The SDM records crash data.
Conditions for Clearing the DTC
DTC B0053 can be cleared if the following conditions are met:
* Three consecutive seat belt pretensioner deployment events have not occurred.
* One frontal or side air bag deployment has not occurred.
* The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.
* A history DTC will clear once 255 malfunction-free ignition cycles have occurred.
DTC B0053 becomes a latched code after 3 consecutive pretensioner deployment events or 1 frontal or side air bag deployment. You cannot clear a latched code. Replace the SDM after following the instructions in the diagnostic table.
Diagnostic Aids
DTC B0053 will be accompanied by additional DTCs, other than DTC B0051. Repair the malfunction causing the other DTCs before replacing the SDM.

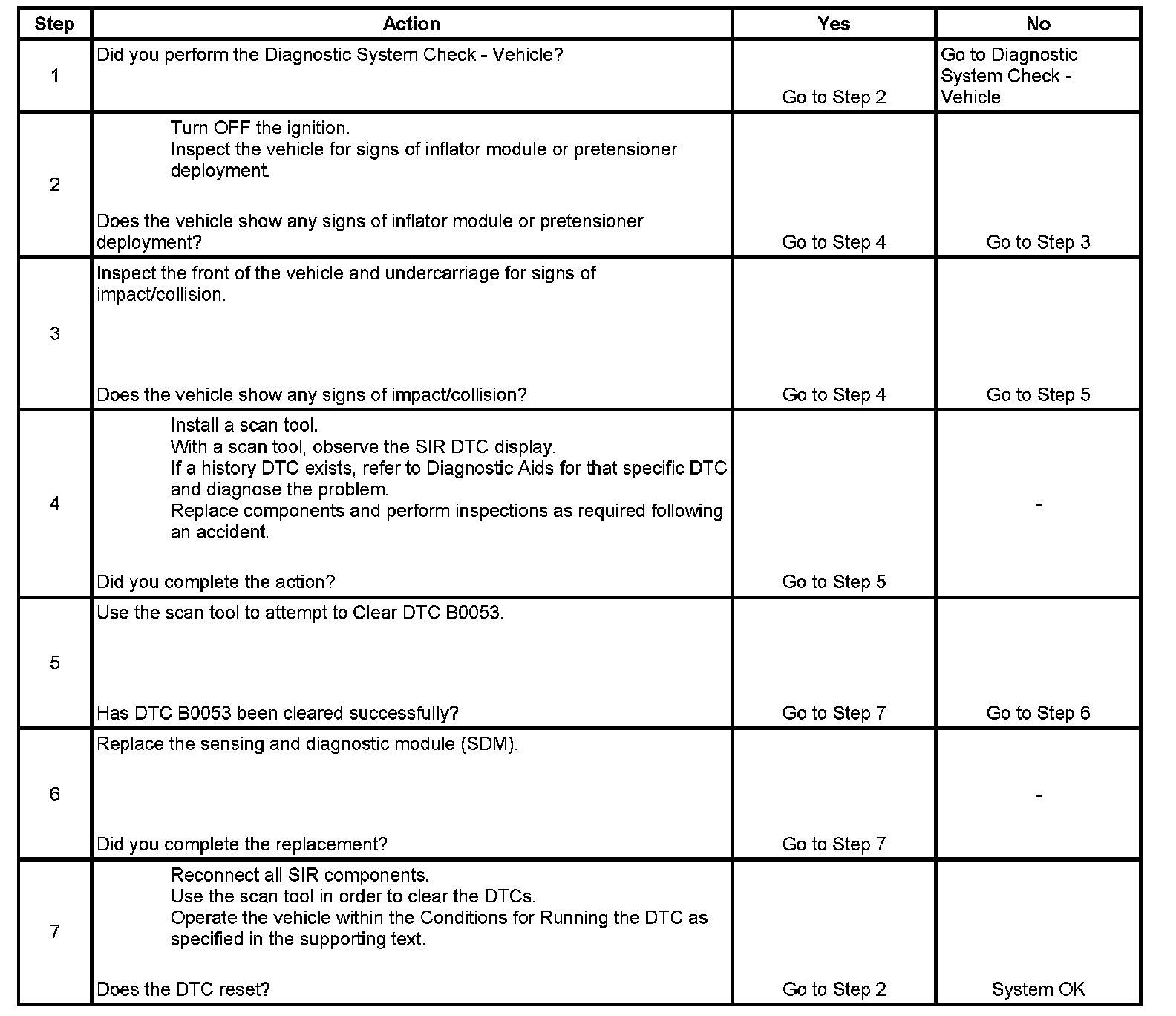

Test
