Home >> Saturn >> 2007 >> Aura L4-2.4L Hybrid >> Repair and Diagnosis >> Locations >> Splice Locations

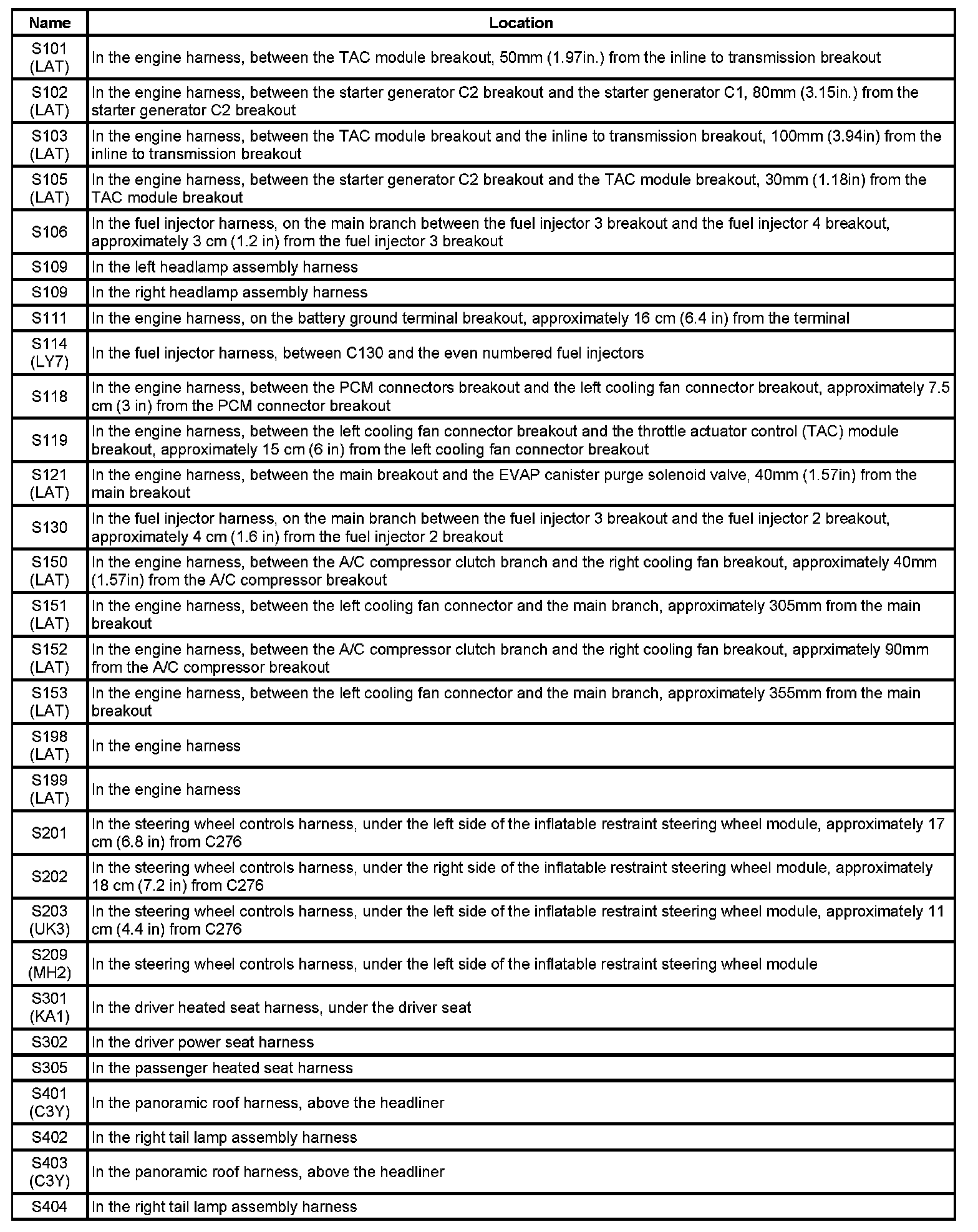

Splice Locations



Master Electrical Component List

S101 - S404:





S405 - S500:
