Home >> Saturn >> 2006 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams

Electrical Diagrams



Driver Controls:

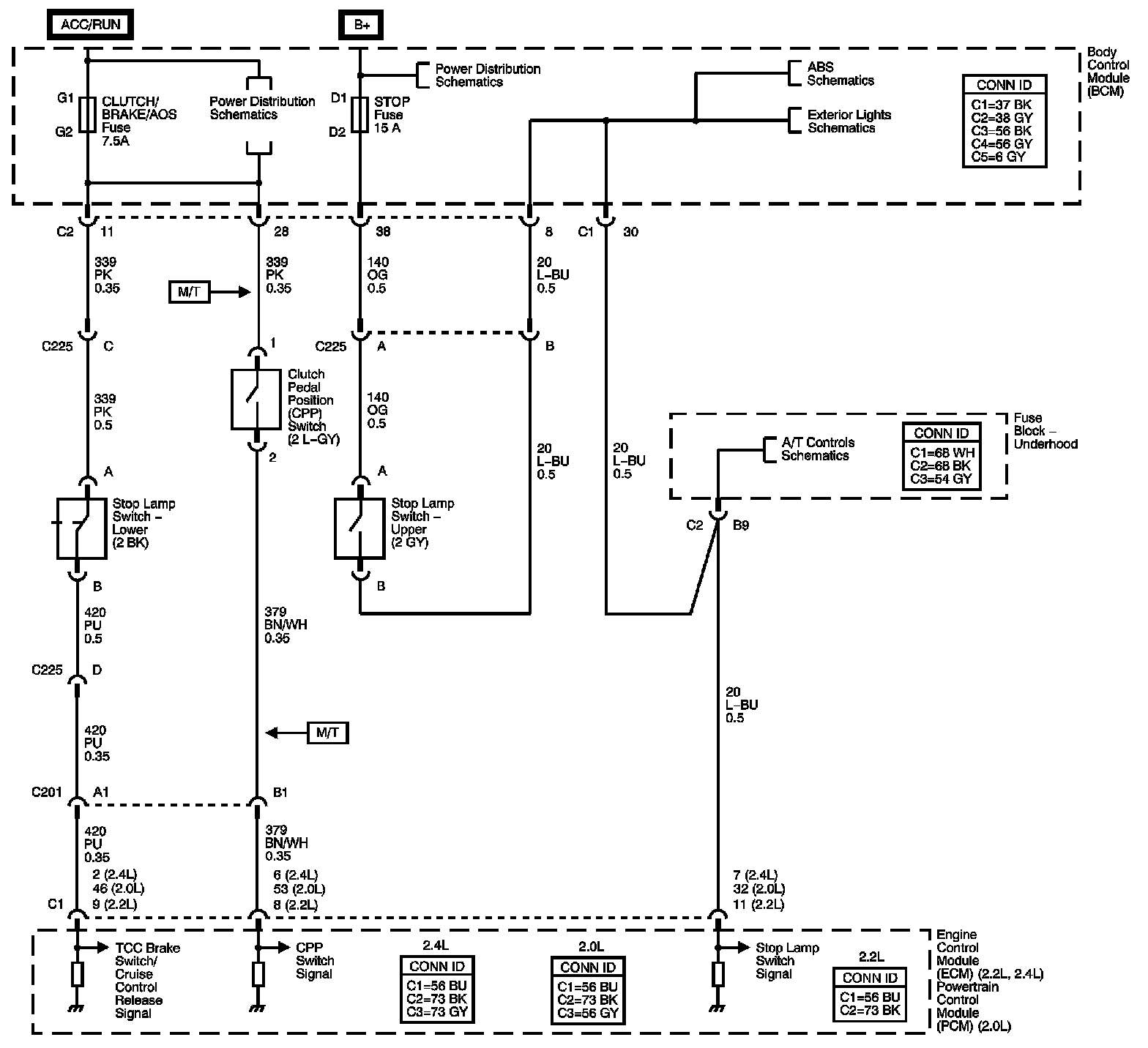

Stop Lamp and Clutch Switches:





Cruise Control Schematics
