Rear Door Window Regulator: Service and Repair

Window Regulator Replacement - Rear Door

Removal Procedure




1. Remove the rear door window. Refer to Window Replacement - Rear Door (Service and Repair).
2. Disconnect the electrical connection, if equipped.

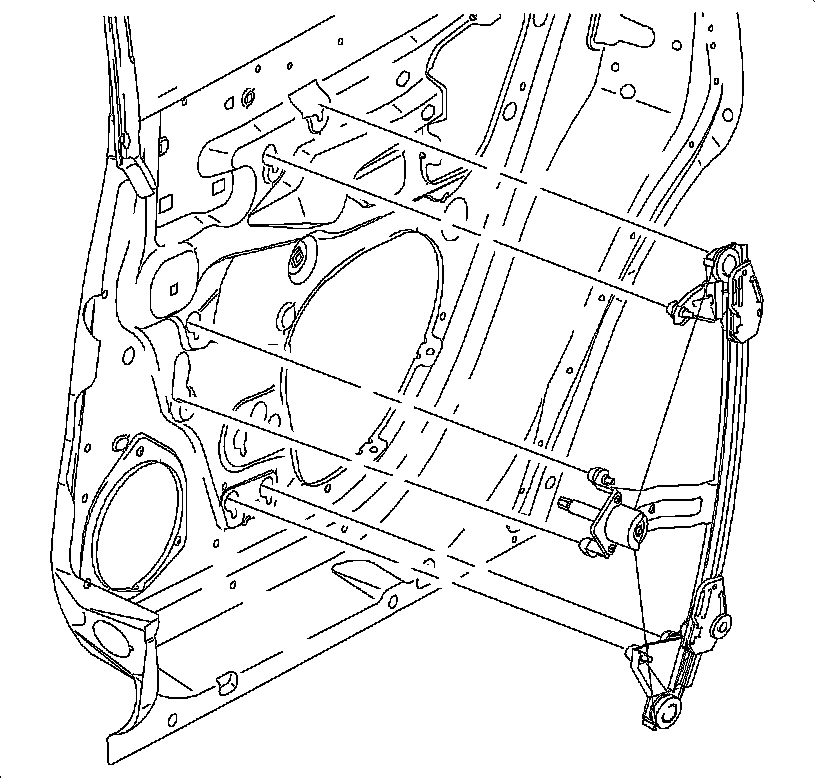

3. Remove the rear window regulator bolts.
4. Remove the rear door window regulator from the door.

Installation Procedure




1. Install the rear door window regulator to the rear door.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts to the rear door window regulator.

Tighten the bolts to 10 Nm (89 lb in).

3. Connect the electrical connection, if equipped.
4. Install the rear door window. Refer to Window Replacement - Rear Door (Service and Repair).
5. Inspect the rear door window regulator for proper operation.
