Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C400 - C499 >> C407

C407

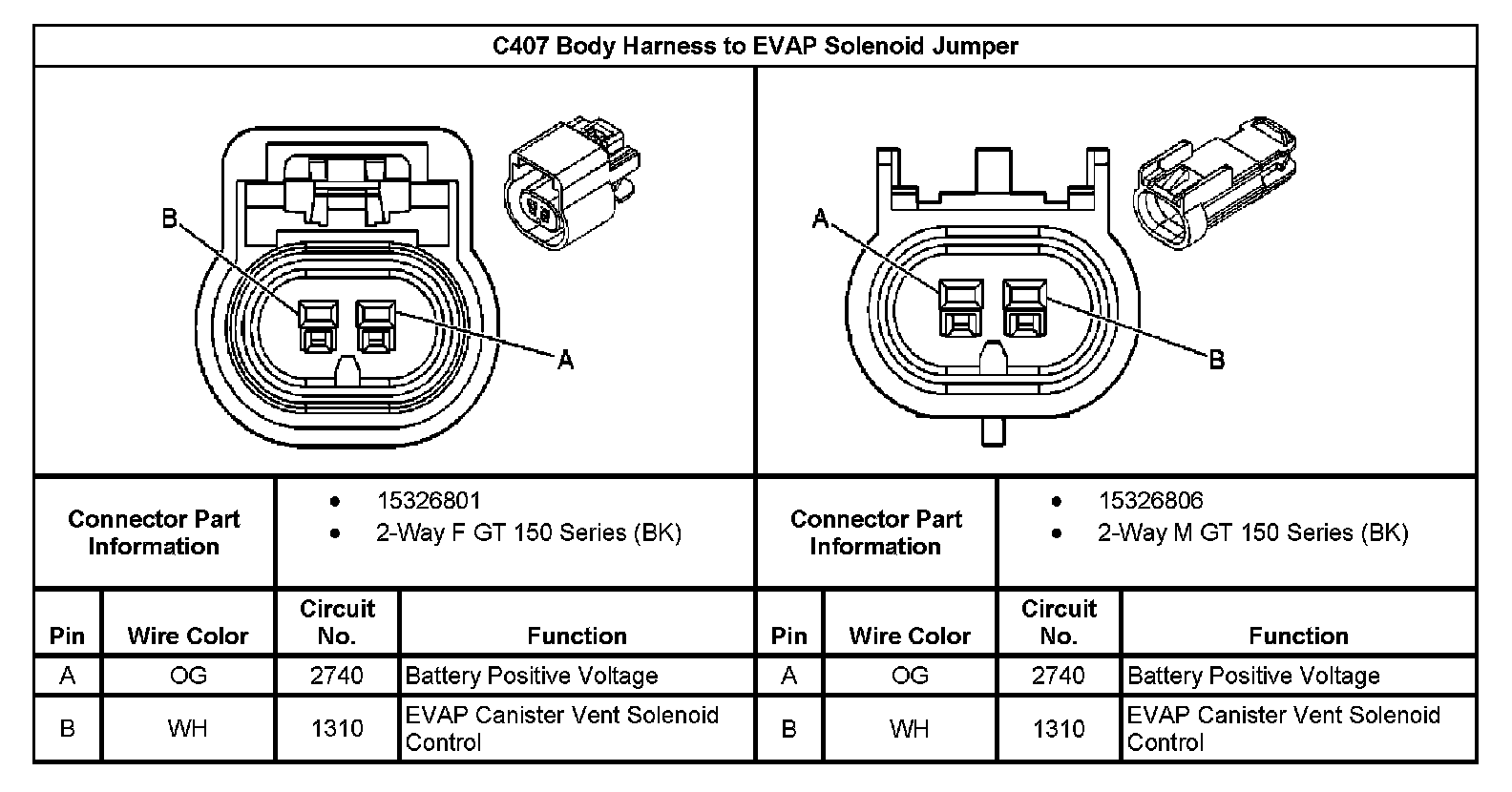

C407 Body Harness To EVAP Solenoid Jumper:
