Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Compartment Views >> Center of Passenger Compartment Floor

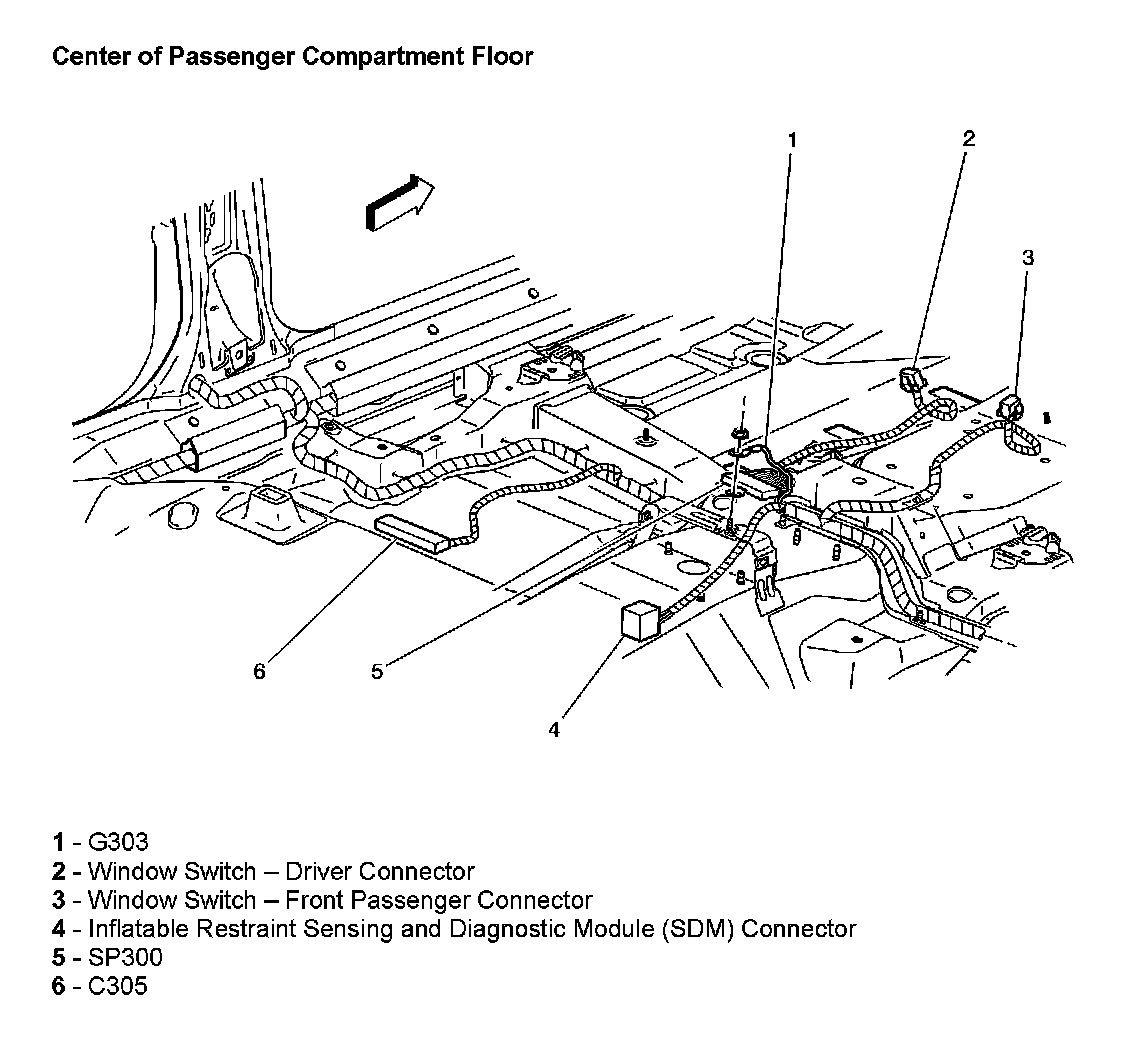

Center of Passenger Compartment Floor

Center Of Passenger Compartment Floor:
