Underhood Fuse Block - C3
Underhood Fuse Block - C3

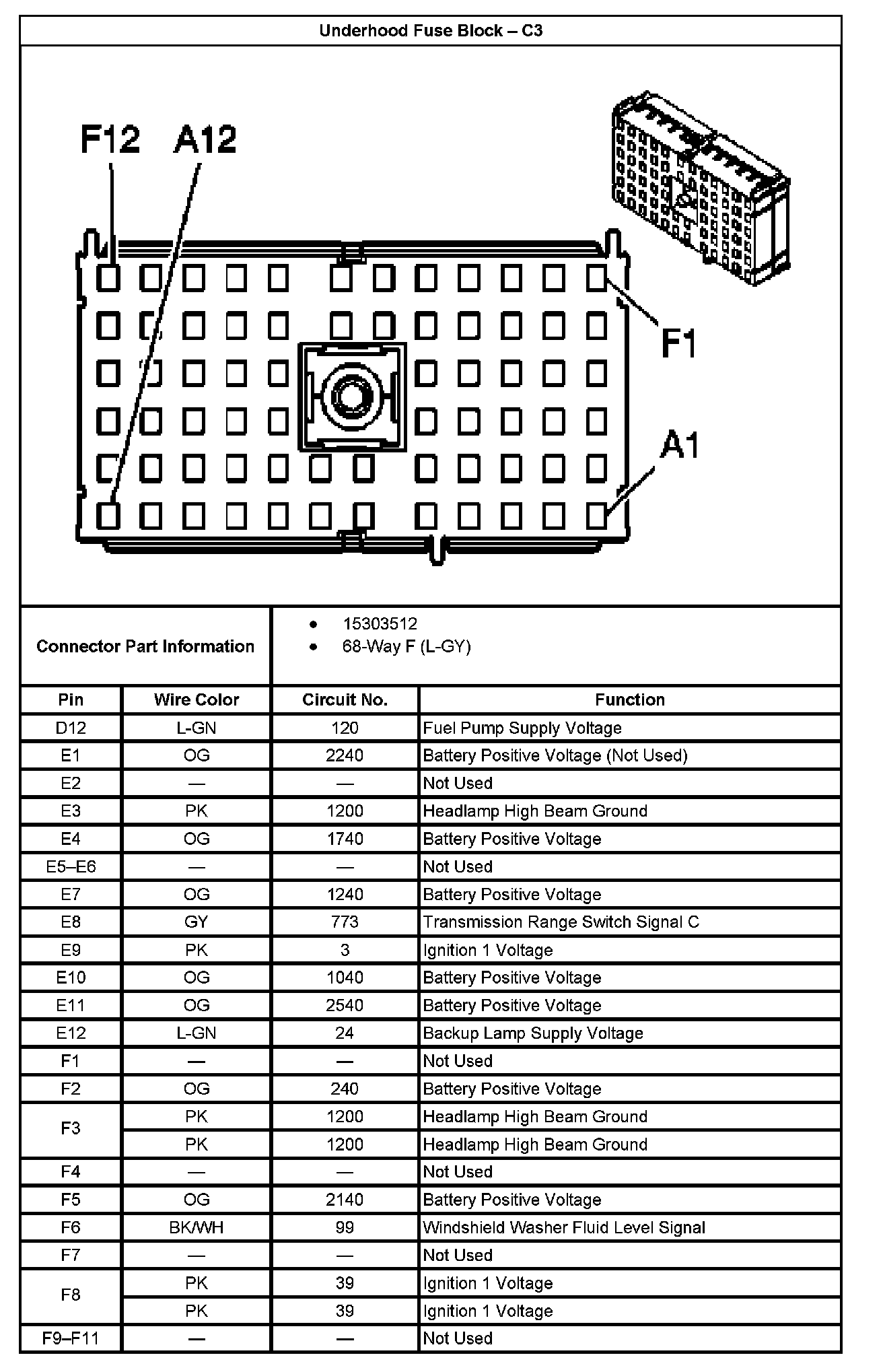

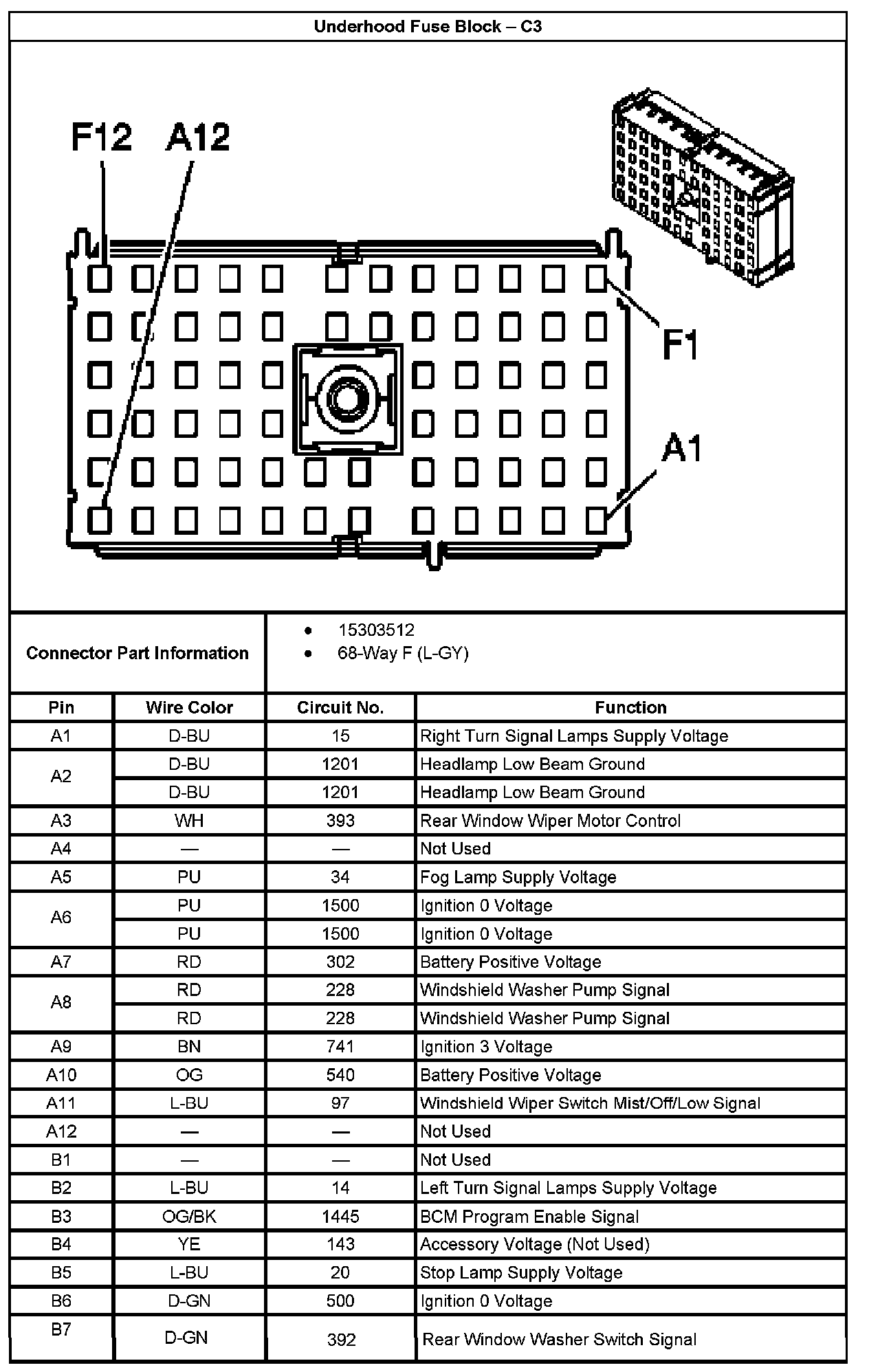

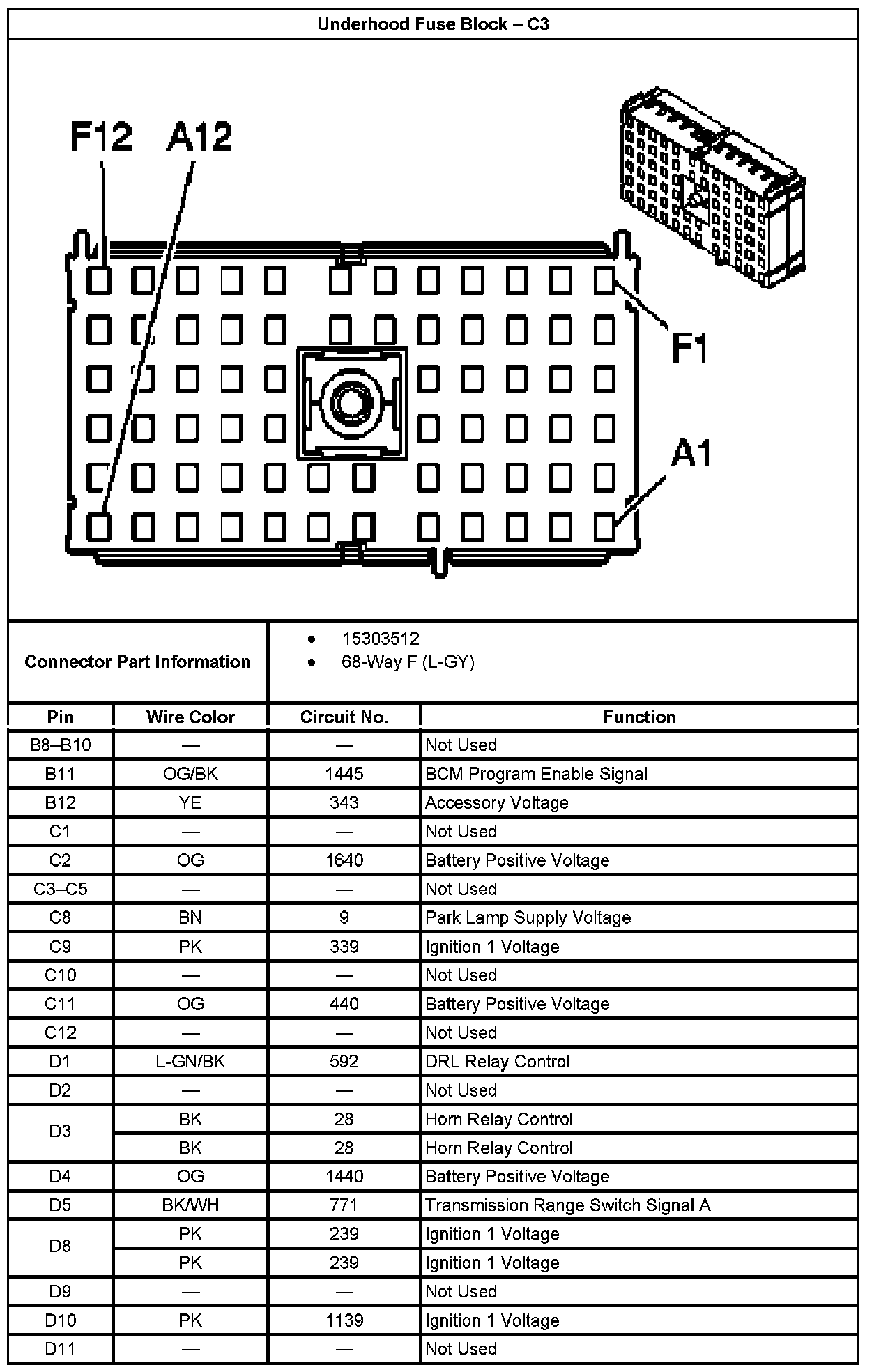

Underhood Fuse Block - C3 Part 1:
Underhood Fuse Block - C3 Part 2:
Underhood Fuse Block - C3 Part 3:
Underhood Fuse Block - C3 Part 4:
