Impact Sensor: Diagrams

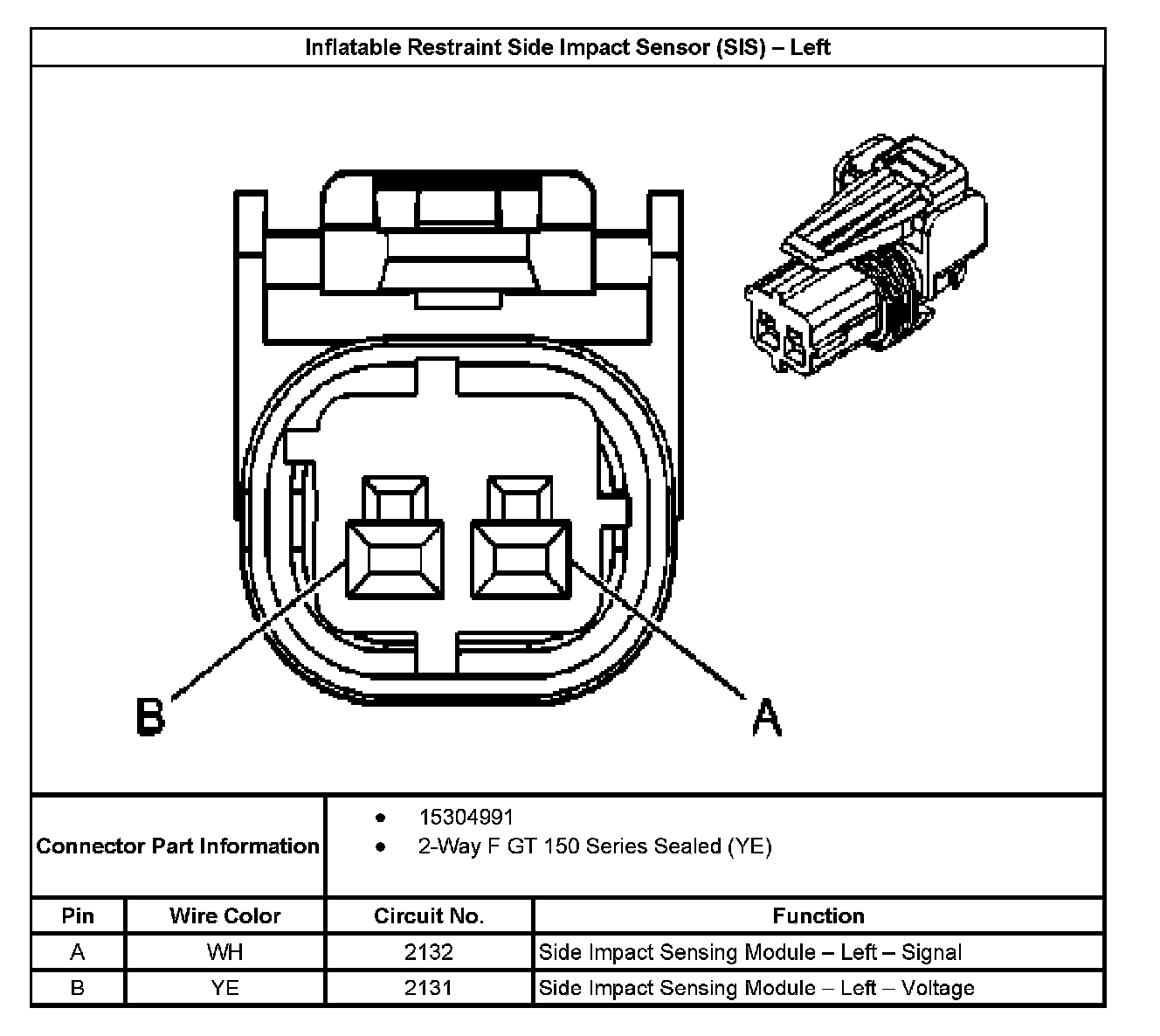

Inflatable Restraint Side Impact Sensor (SIS) - Left:

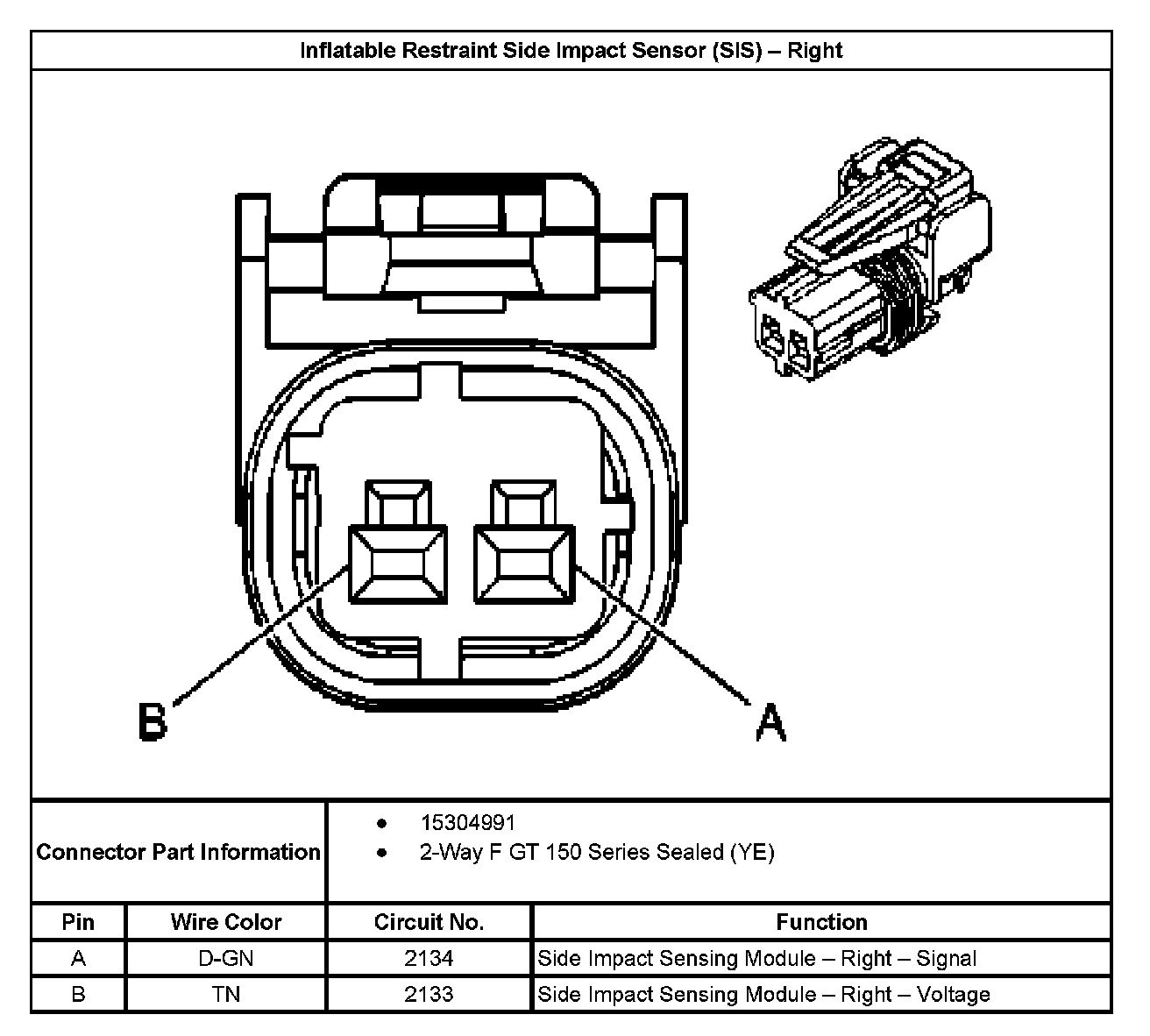

Inflatable Restraint Side Impact Sensor (SIS) - Right:
