Fuel Tank Pressure Sensor: Service and Repair

FUEL TANK PRESSURE SENSOR REPLACEMENT

REMOVAL PROCEDURE

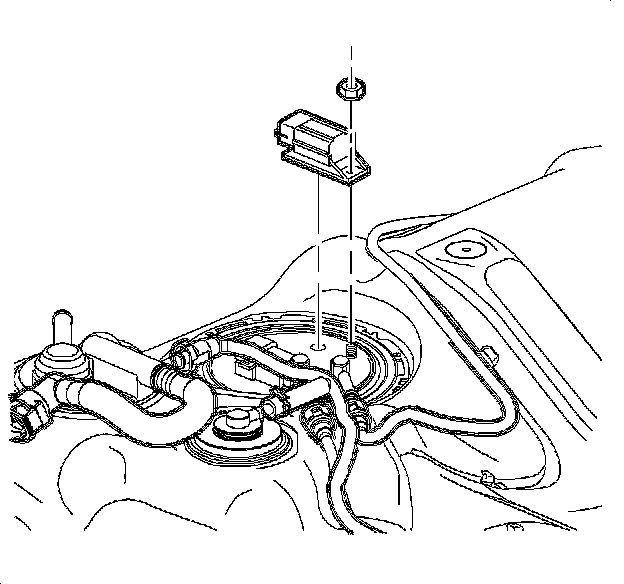

1. The fuel tank pressure (FTP) sensor is located on top of the fuel pump module cover.
2. Remove the fuel tank from the vehicle.
3. Disengage the electrical connector from the FTP sensor.
4. Remove the retaining nut and washer.
5. Disengage the sensor from the fuel pump module cover.

INSTALLATION PROCEDURE




1. Install the tank pressure sensor into the fuel pump module cover mounting boss.

NOTE: To facilitate installation of the tank pressure sensor into its mounting boss on the fuel pump module cover, lightly lubricate the multi-ribbed seal on the tank pressure sensor. A drop of clean engine oil is sufficient.

2. Install the retaining nut and washer.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the FTP sensor nut to 2 N.m (18 lb in).

3. Install the electrical connector to the FTP sensor.
4. Install the fuel tank.
