Parking Brake Warning Switch: Locations

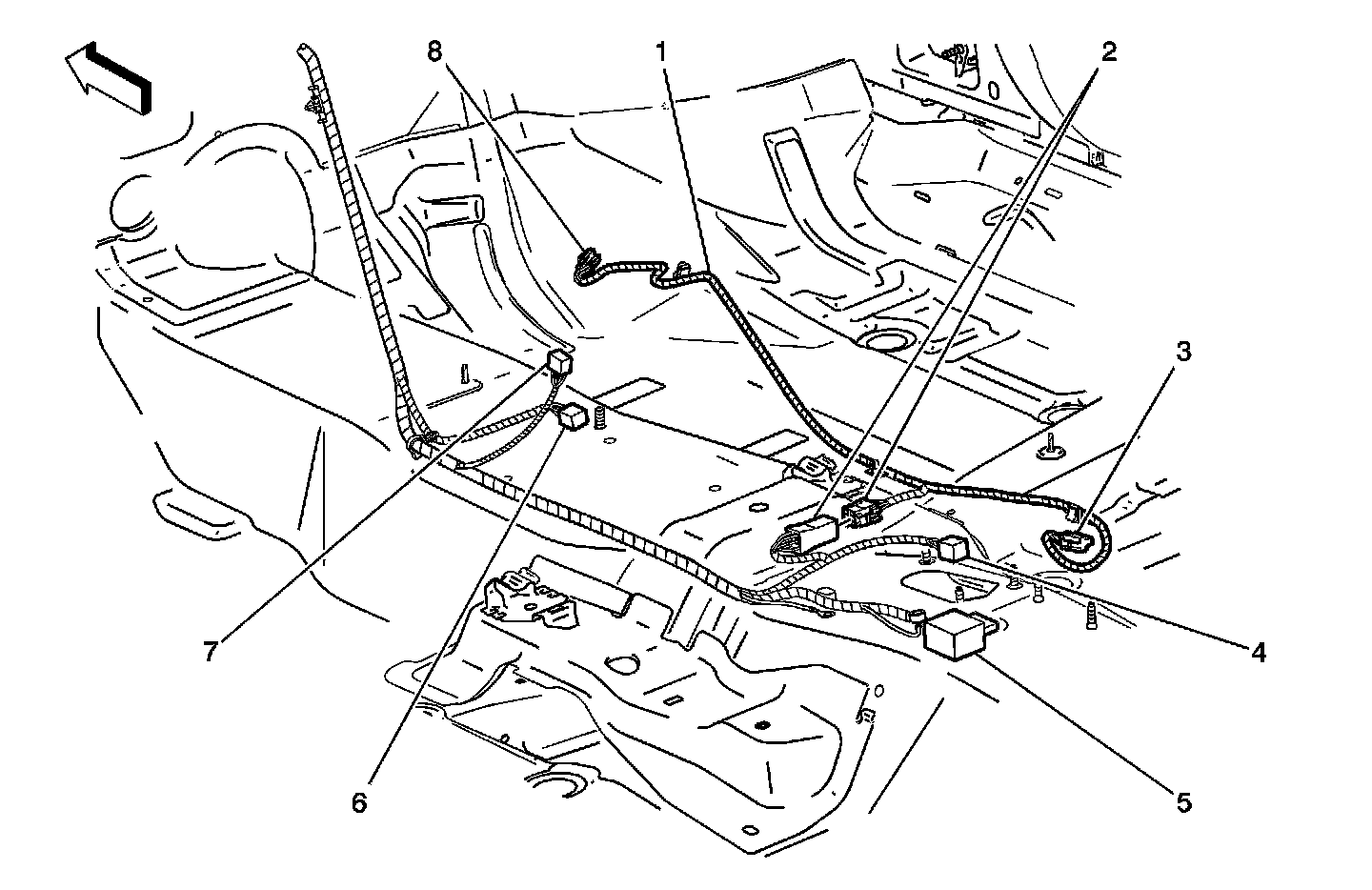

Center Console Components





1 - Console Harness
2 - C301
3 - Auxiliary Power Outlet Connector
4 - Park Brake Switch Connector
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 - Automatic Transmission Shift Lock Actuator Connector
7 - Electronic PRNDL Module Connector
8 - Cigar Lighter Connector
