Brake Fluid Level Sensor/Switch: Locations

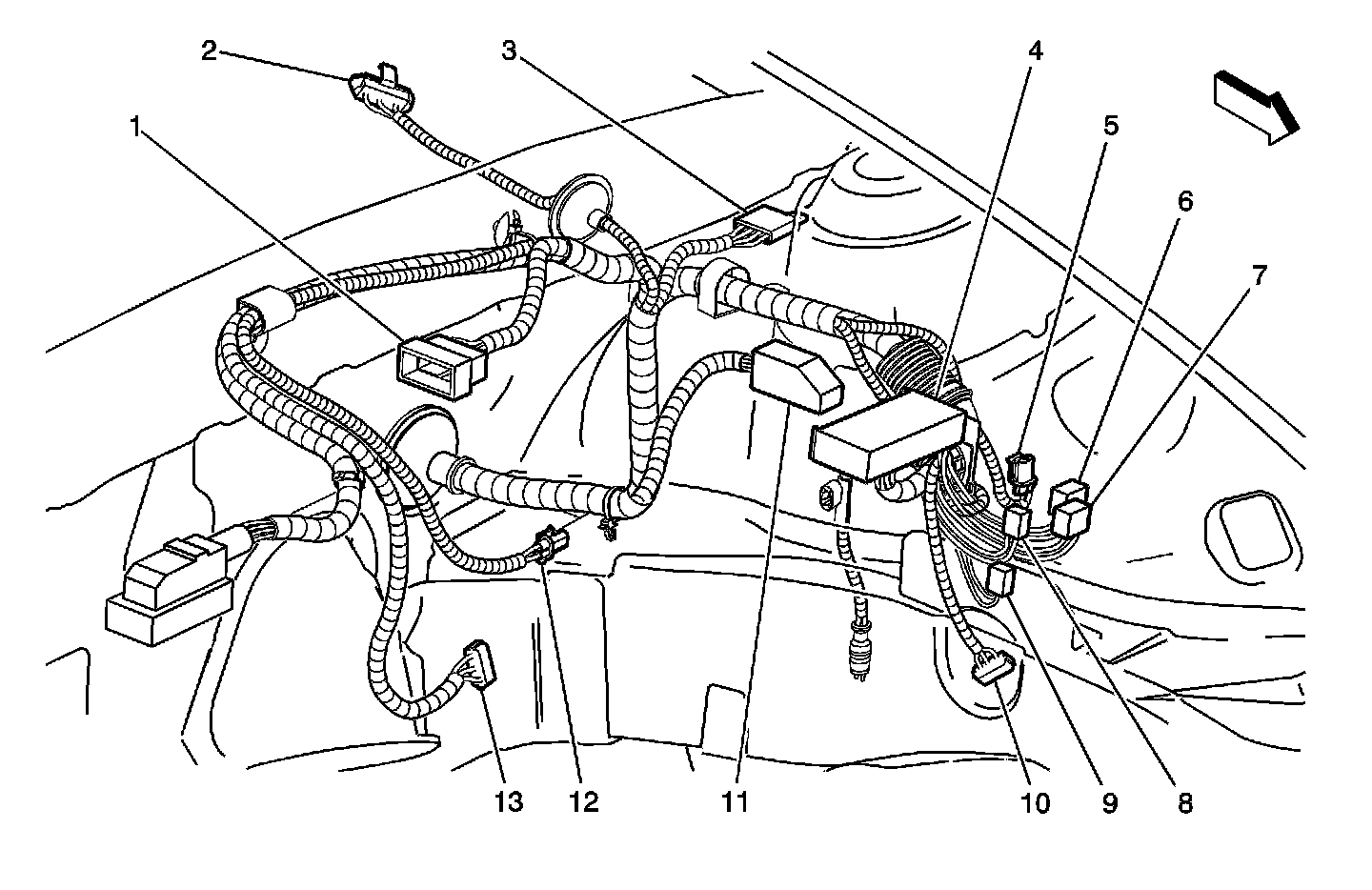

LR Corner of the Engine Compartment





1 - Cruise Control Module (CCM)
2 - Windshield Wiper Motor Connector
3 - SP191
4 - Fuse Block - Underhood
5 - Coolant Level Switch
6 - Cooling Fan Control Module C1
7 - Cooling Fan Control Module C2
8 - Daytime Running Lamp (DRL) Resistor
9 - Windshield Washer Fluid Level Switch
10 - G103 (SP103)
11 - Electronic Brake Control Module (EBCM)
12 - Brake Fluid Level Switch
13 - C199
