Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Trunk / Liftgate Lock Switch >> Locations

Power Trunk / Liftgate Lock Switch: Locations

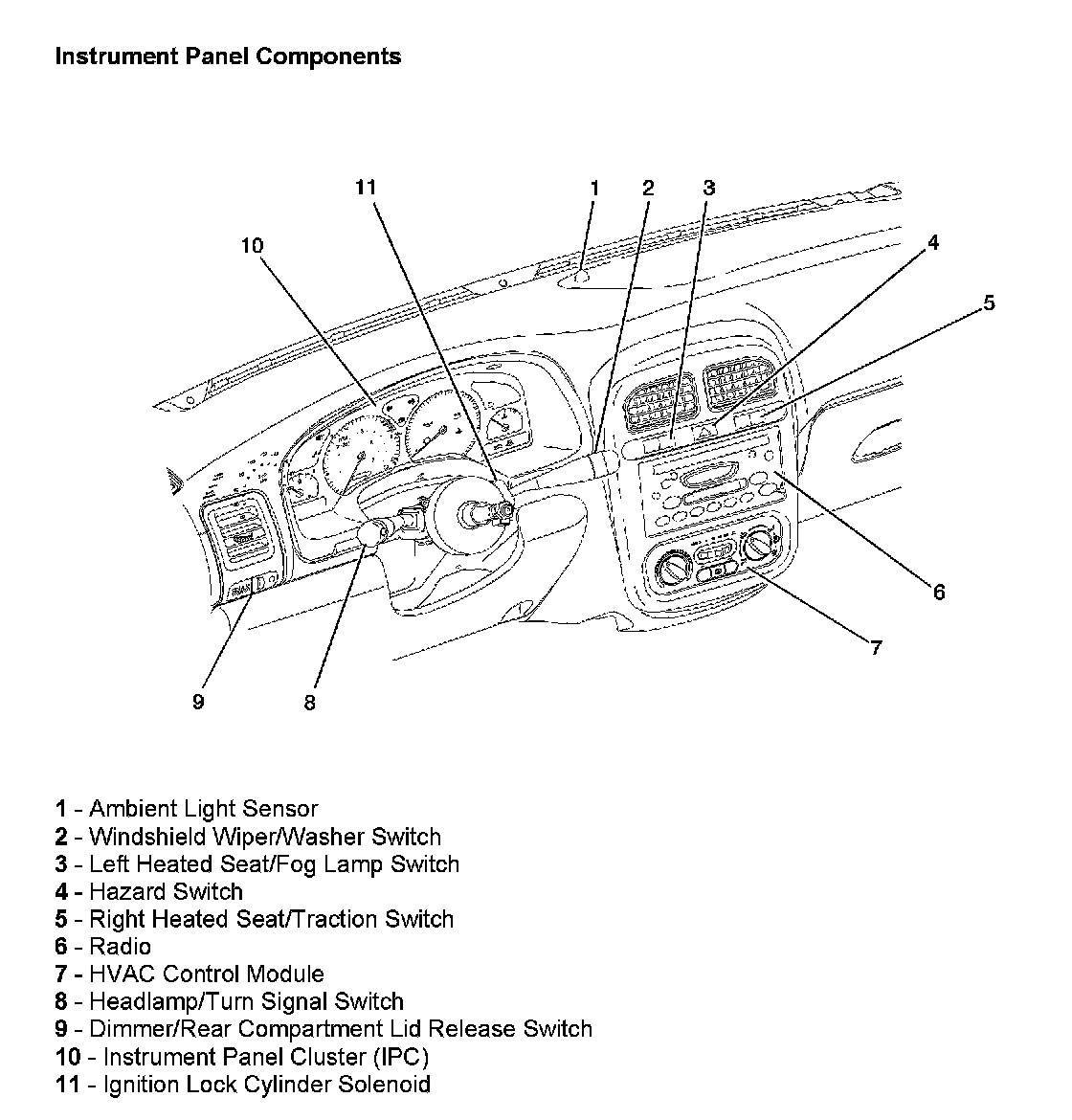

Instrument Panel Components:

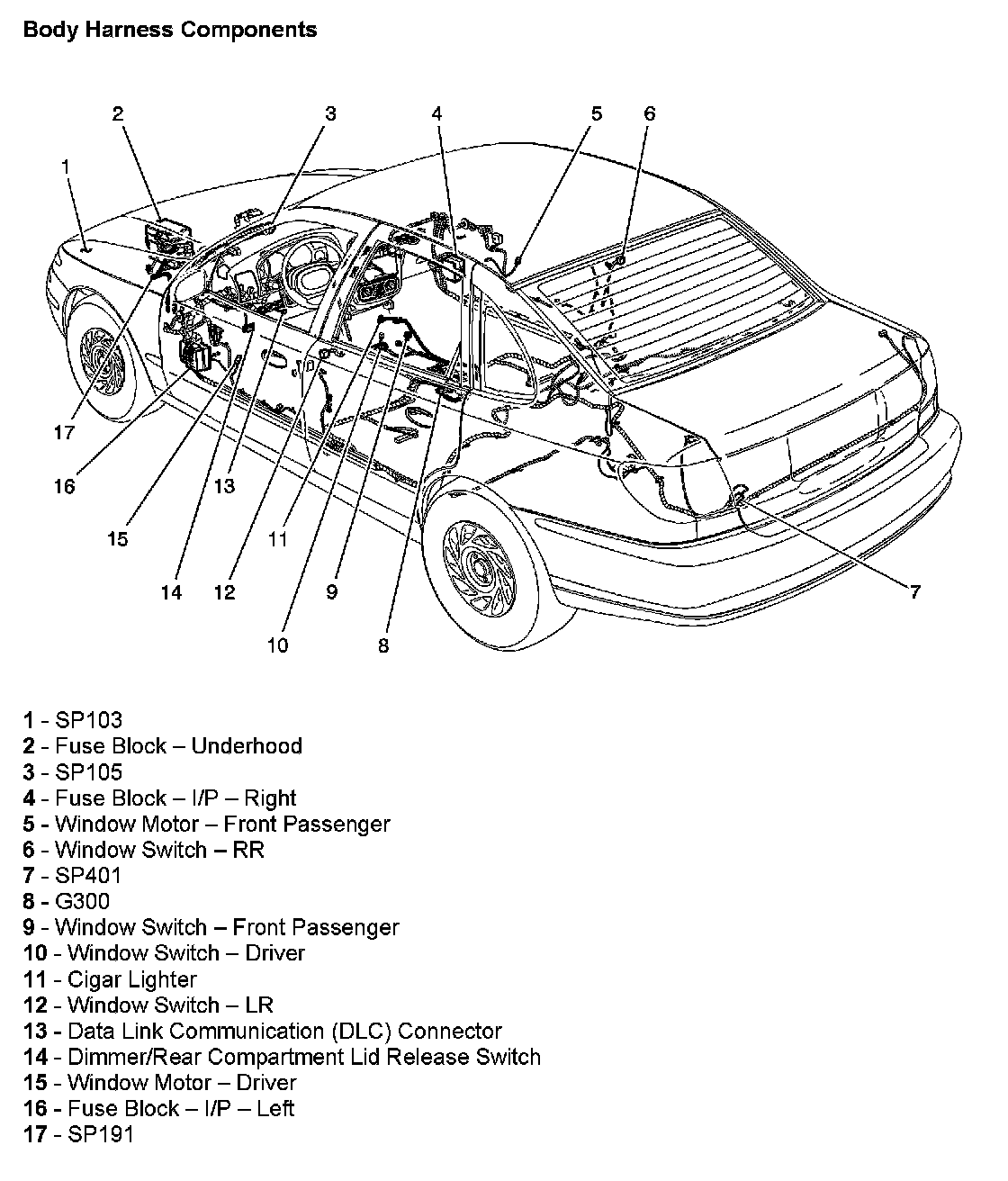

Body Harness Components:



I/P Harness Components:
