FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saturn
>>
2005
>>
L Series V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Data List
Scan Tool Data List

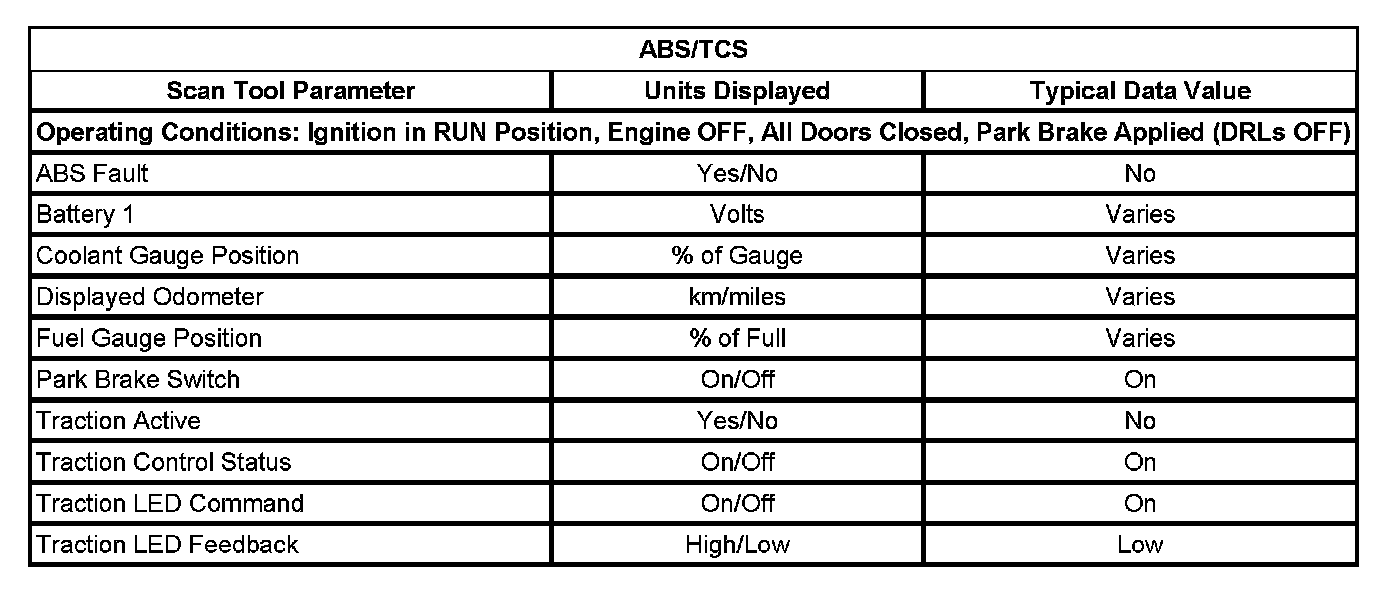

ABS/TCS:

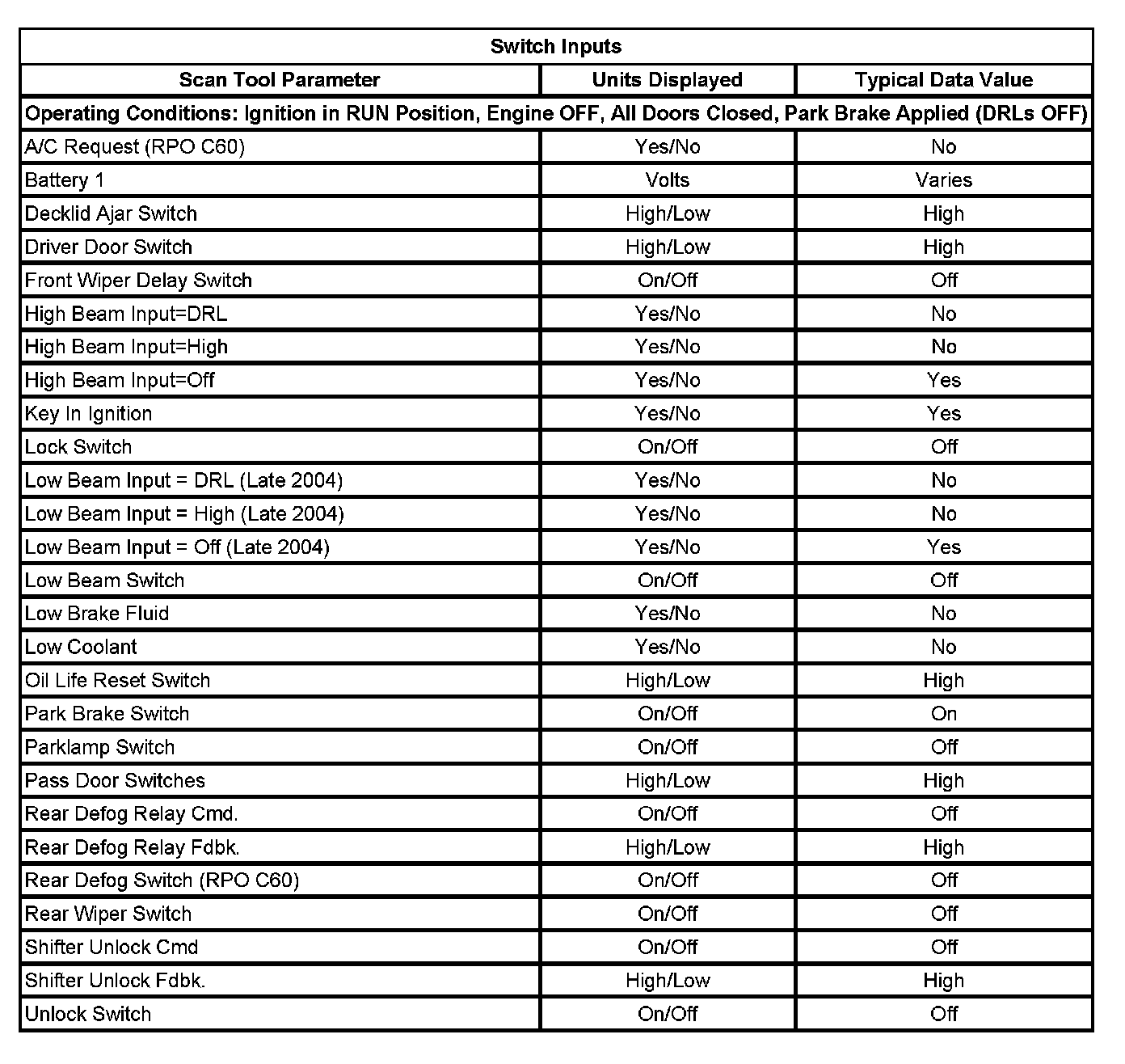

Switch Inputs:

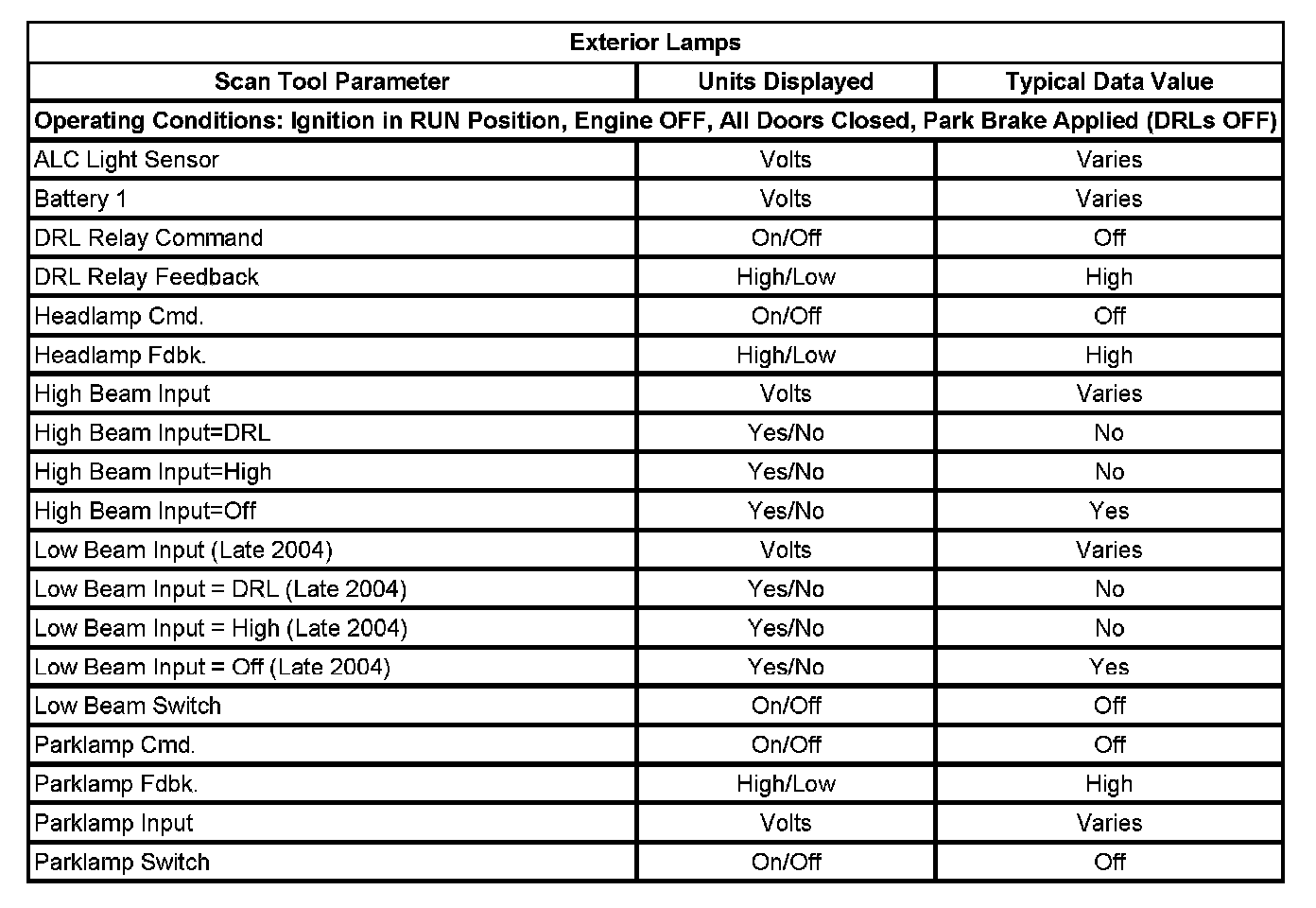

Exterior Lamps:

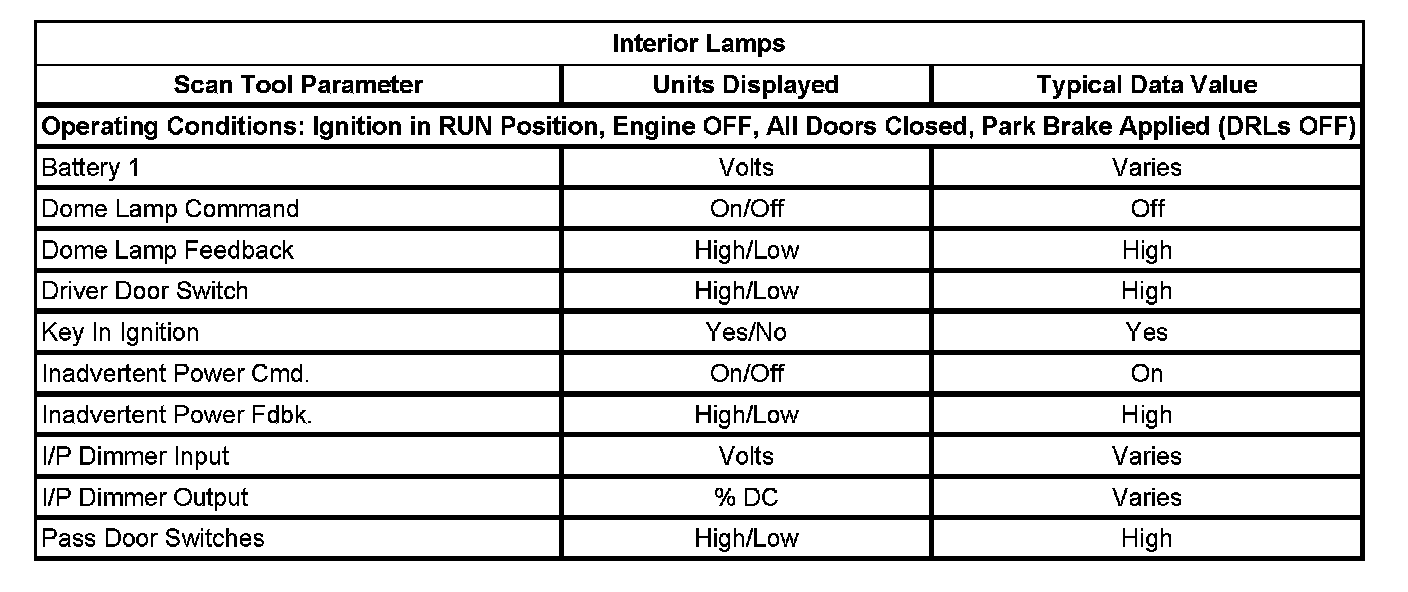

Interior Lamps:

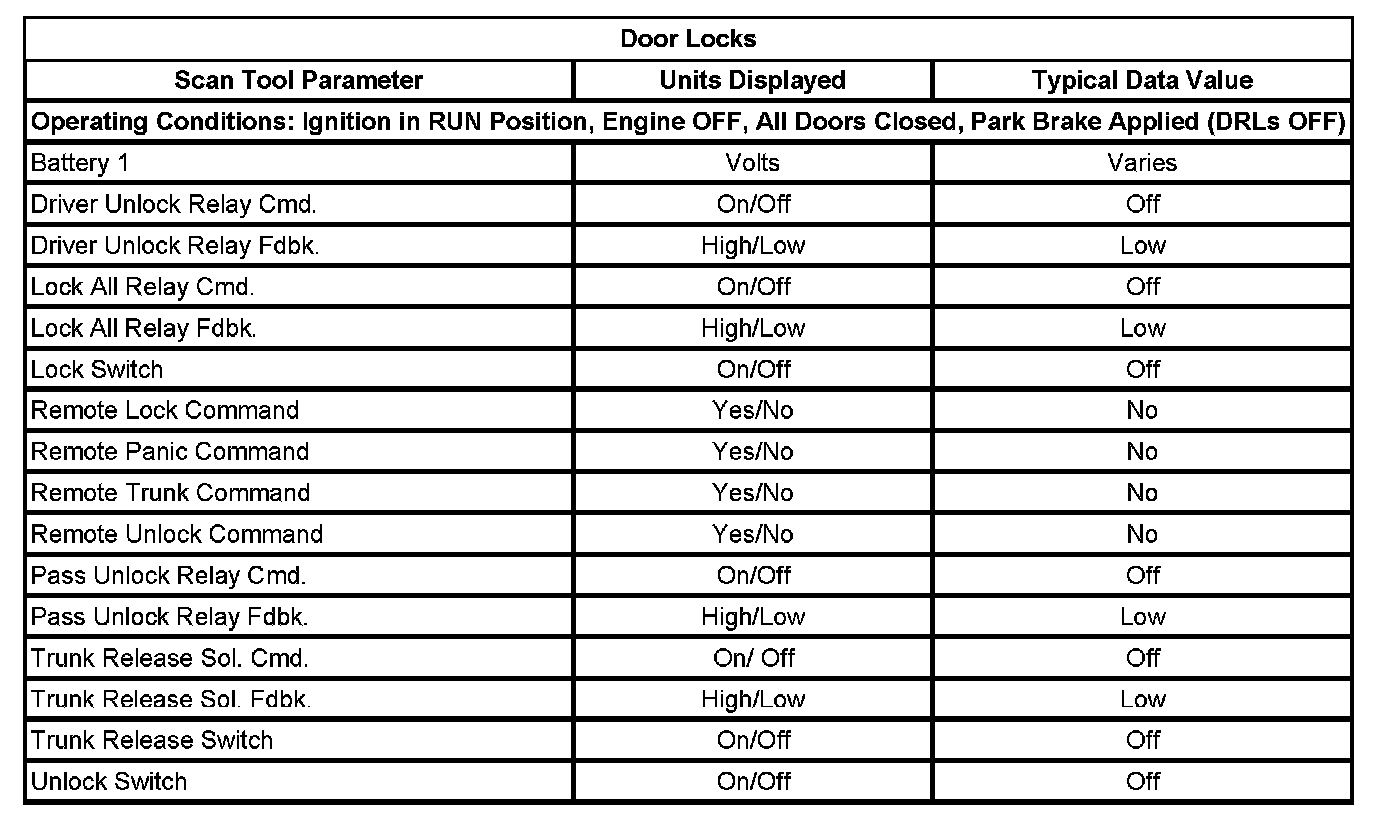

Door Locks:

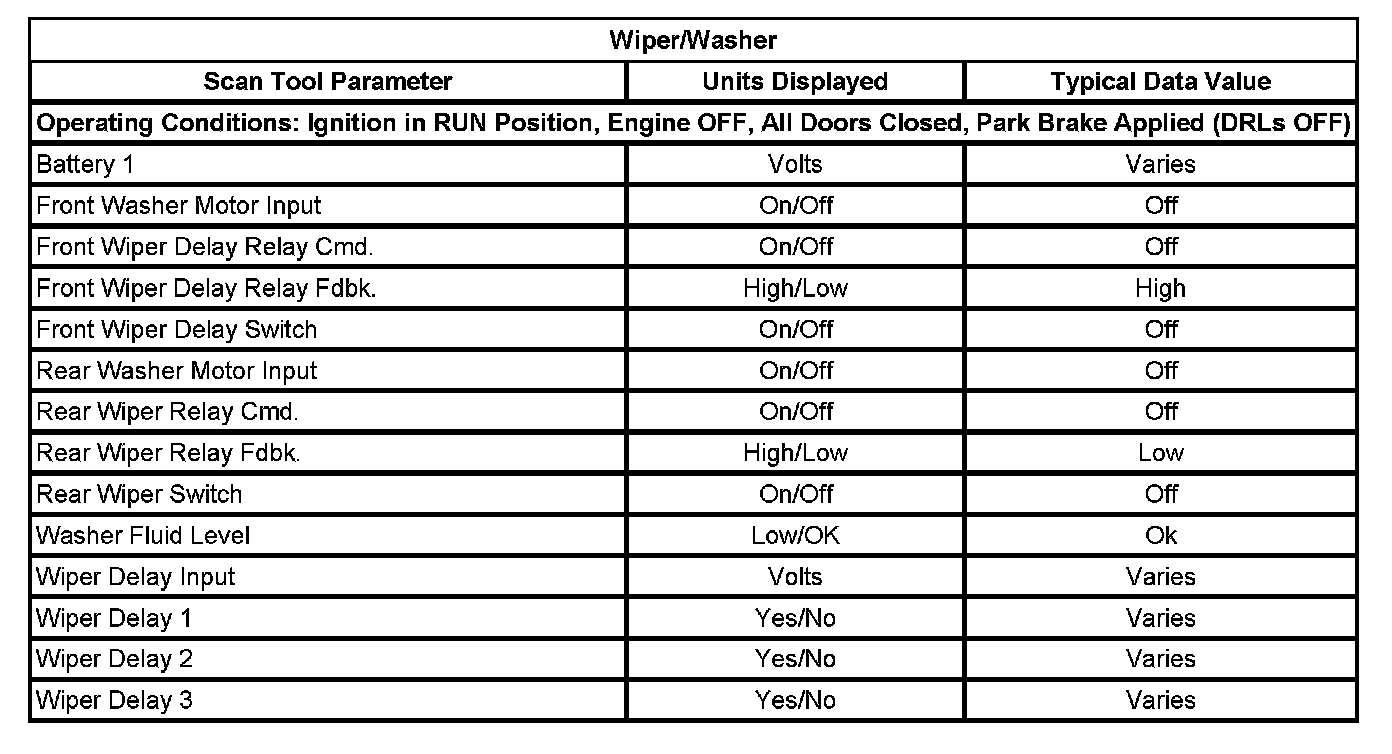

Wiper/Washer:

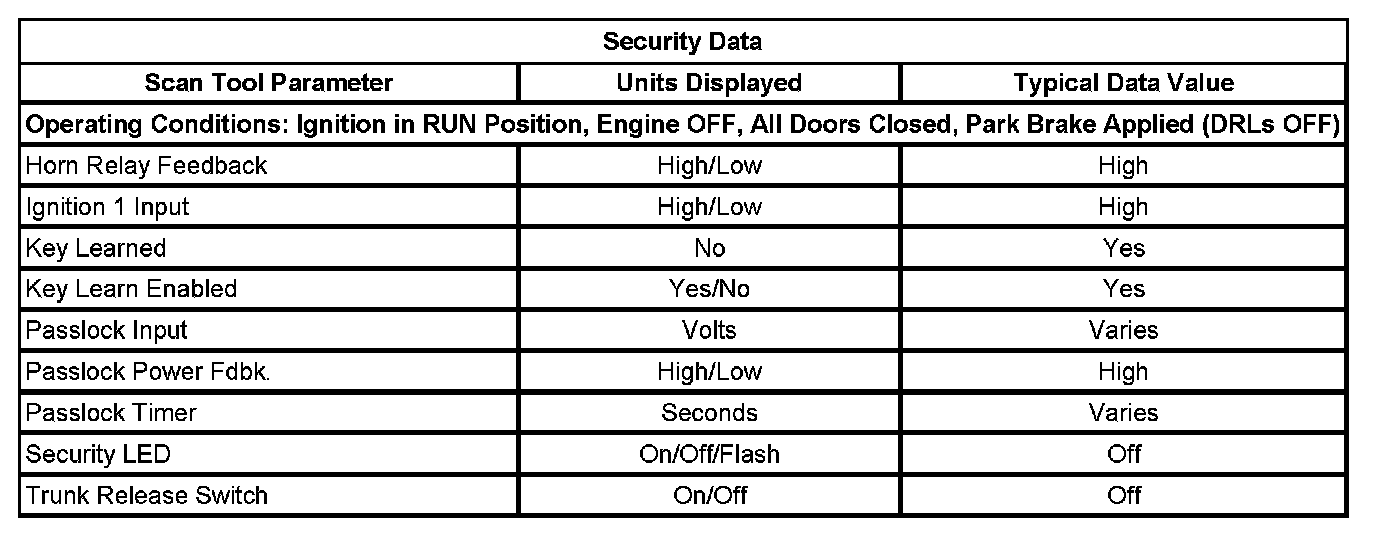

Security Data:
Security Data:
