Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> A/C System Performance Test >> Specific System Condition >> Specific System Condition - Compressor No-Pump

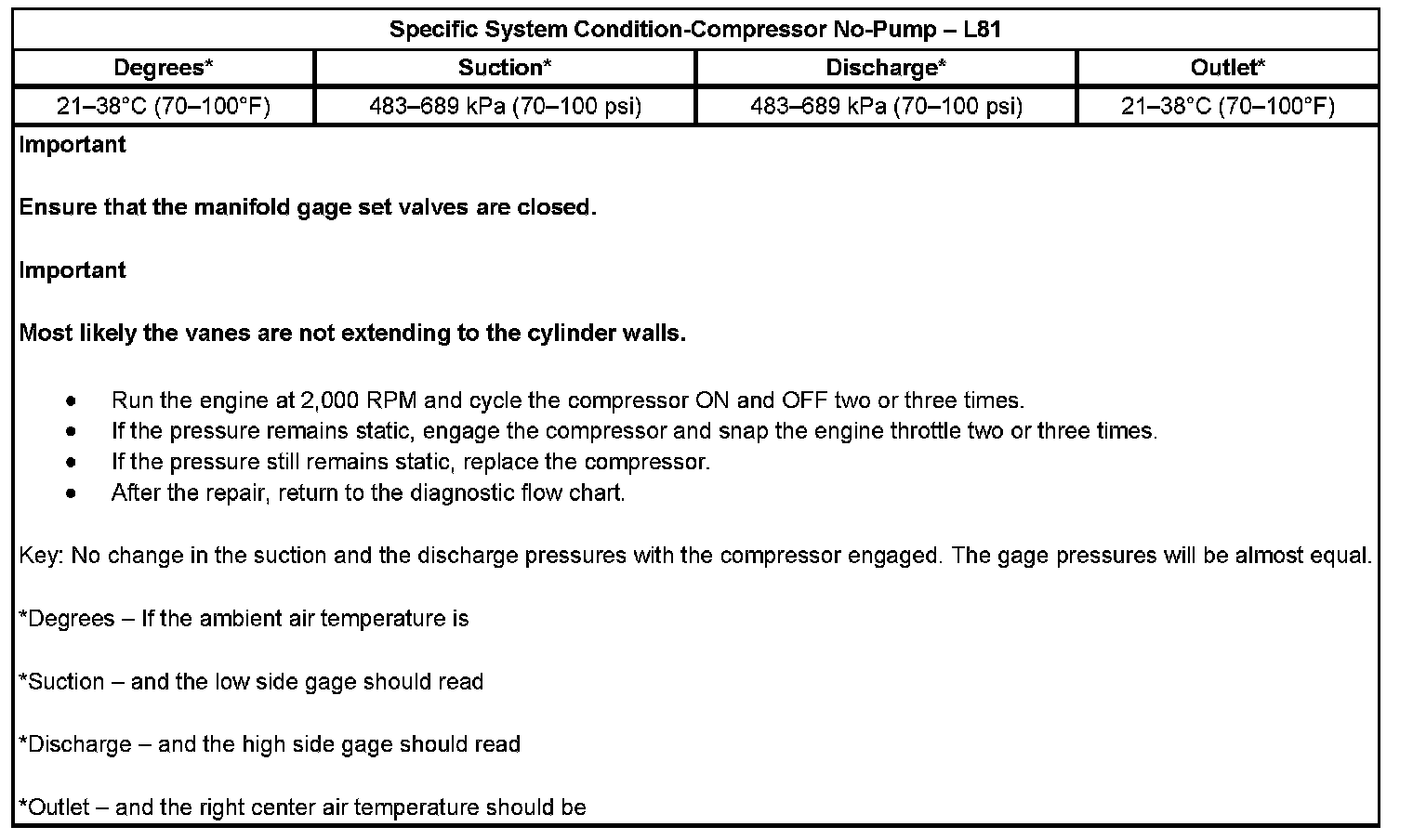

Specific System Condition - Compressor No-Pump

Specific System Condition - Compressor No-Pump:
