62. Water Crossover Installation

Water Crossover Installation

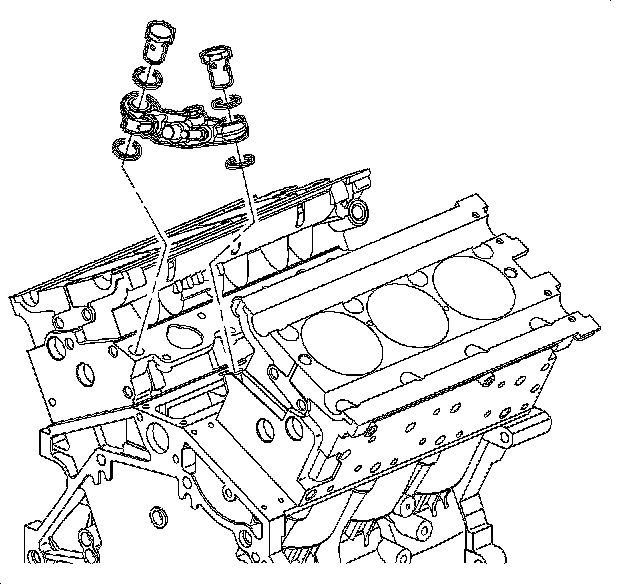

1. Install the coolant bridge and install the coolant bridge lower seals.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the coolant bridge upper seals and the coolant bridge bolts.
^ Tighten the coolant bridge bolts to 30 Nm (22 ft. lbs.).

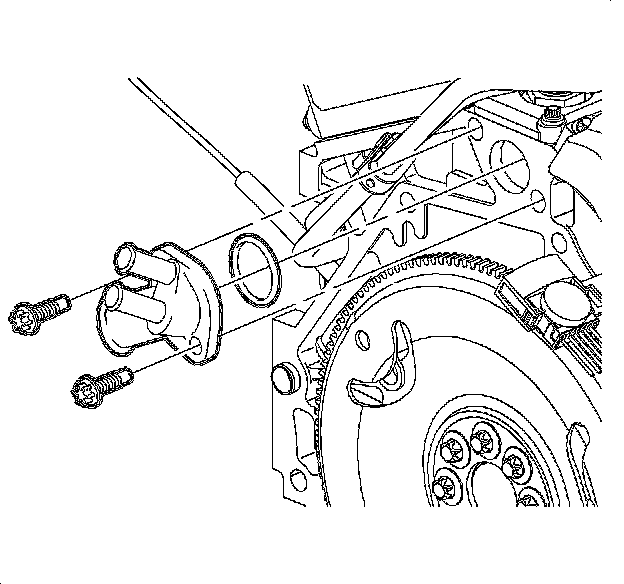

3. Install the coolant intake housing and install the coolant intake housing O-ring seal.
4. Install the coolant intake housing bolts.
^ Tighten the coolant intake housing bolts to 20 Nm (15 ft. lbs.).
