50. Engine Oil Cooler Installation

Oil Cooler Installation

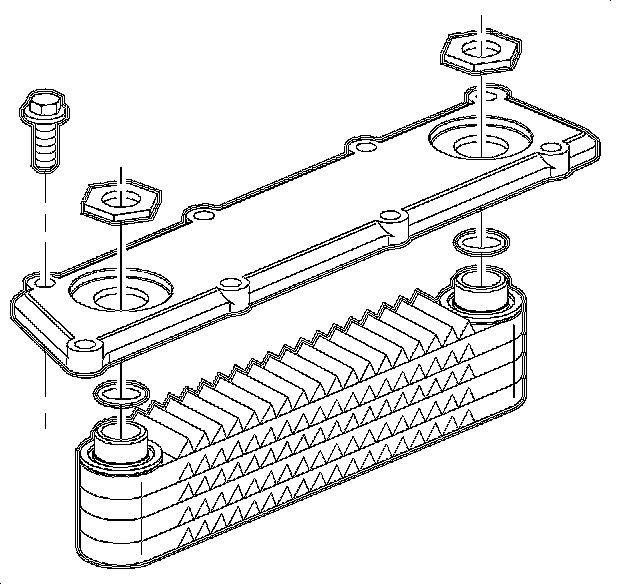

1. Install the engine oil cooler and the new O-ring seals.

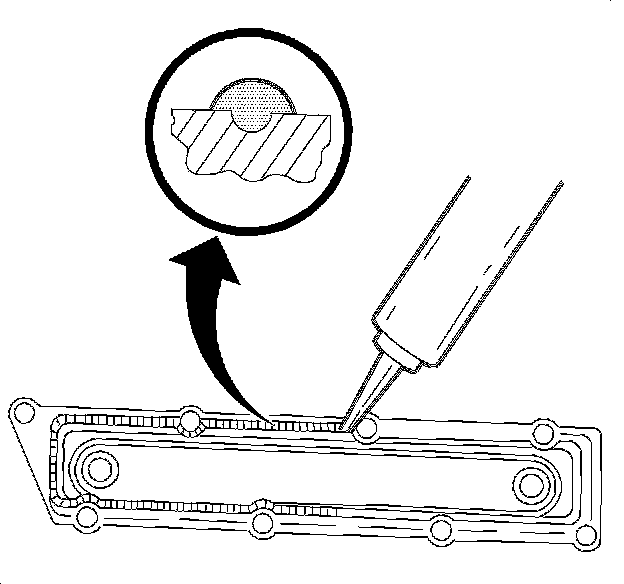

2. Apply a 2 mm (0.08 inch) bead of P/N 12378521, or equivalent, in the groove around the engine oil cooler cover.

Notice: Refer to Fastener Notice in Service Precautions.

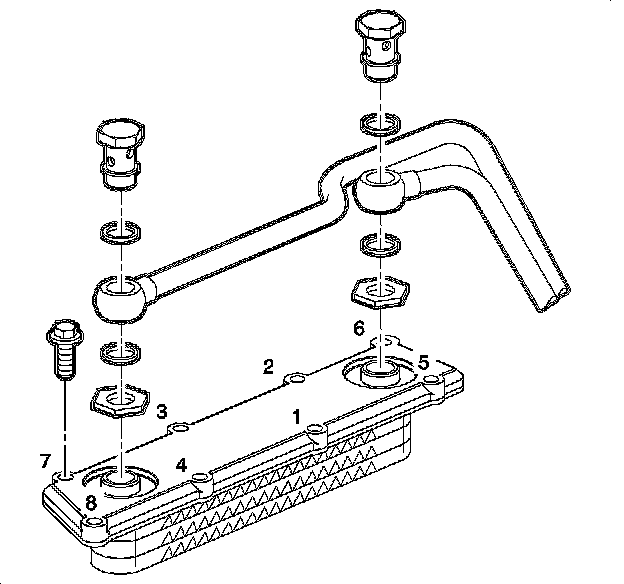

3. Install the engine oil cooler cover bolts using the torque sequence shown.
^ Tighten the engine oil cooler cover bolts to 30 Nm (22 ft. lbs.).
4. Install the engine oil cooler inlet and the outlet nuts.
^ Tighten the engine oil cooler inlet and the outlet nuts to 20 Nm (15 ft. lbs.).

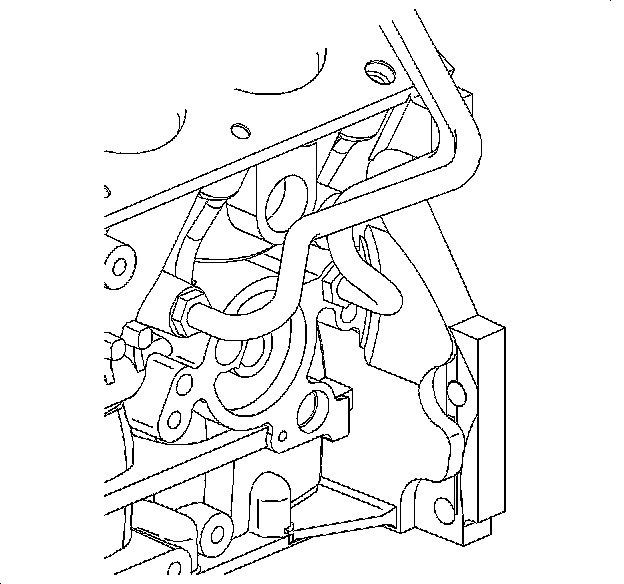

5. Install the oil feed line to the engine block.
^ Tighten the oil cooler feed and the return lines to the engine block to 30 Nm (22 ft. lbs.).
6. Install the return line to the engine block.
^ Tighten the oil cooler feed and the return lines to the engine block to 30 Nm (22 ft. lbs.).
7. Install the engine oil cooler line clamp
8. Install the crank sensor.
9. Install the crank sensor bolt.
^ Tighten the crankshaft position sensor bolt to 8 Nm (71 ft. lbs.).
10. Install the oil filter assembly.
^ Tighten the oil filter cartridge housing-to-engine to 45 Nm (33 ft. lbs.).

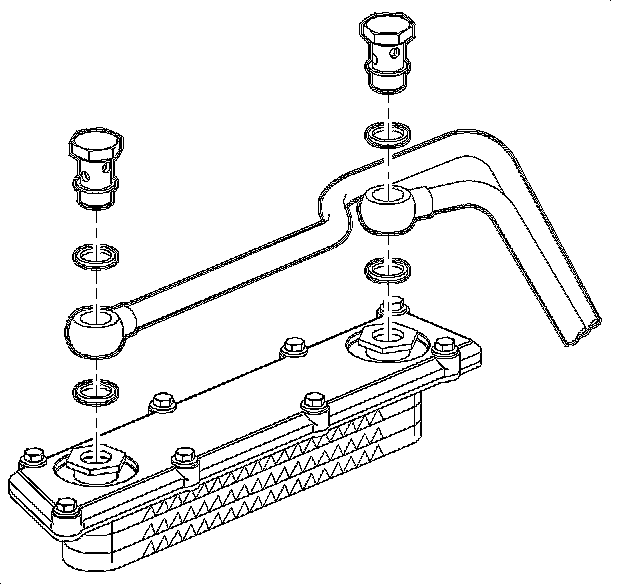

11. Install the oil feed and install the return lines to the engine oil cooler. Use the 4 new seals.
^ Tighten the oil cooler feed and the return lines to the engine block to 30 Nm (22 ft. lbs.).
