5. Exhaust Manifold Removal

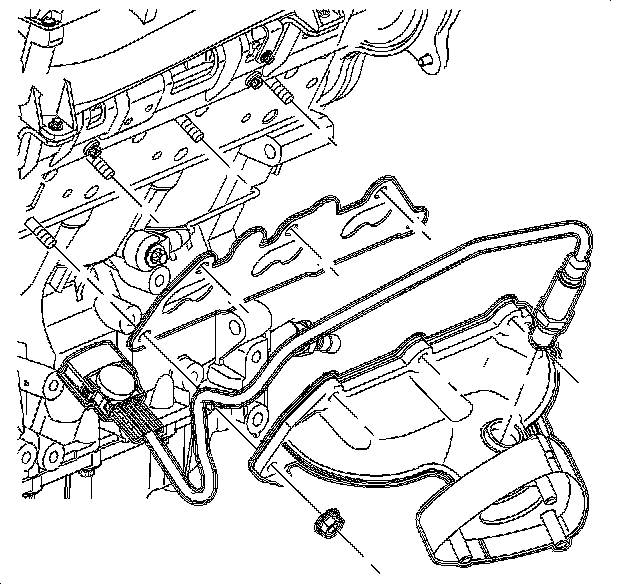

Exhaust Manifold Removal





1. Remove the front oxygen sensor.
2. Remove the front exhaust manifold nuts.
3. Remove the front exhaust manifold.
4. Remove the front exhaust manifold gasket.





5. Remove the rear oxygen sensor.
6. Remove the rear exhaust manifold nuts.
7. Remove the rear exhaust manifold.
8. Remove the rear exhaust manifold gasket.
