28. Piston and Connecting Rod Disassemble

Piston and Connecting Rod Disassemble

^ Tools Required
- SA9101E Piston Pin Remover/Installer

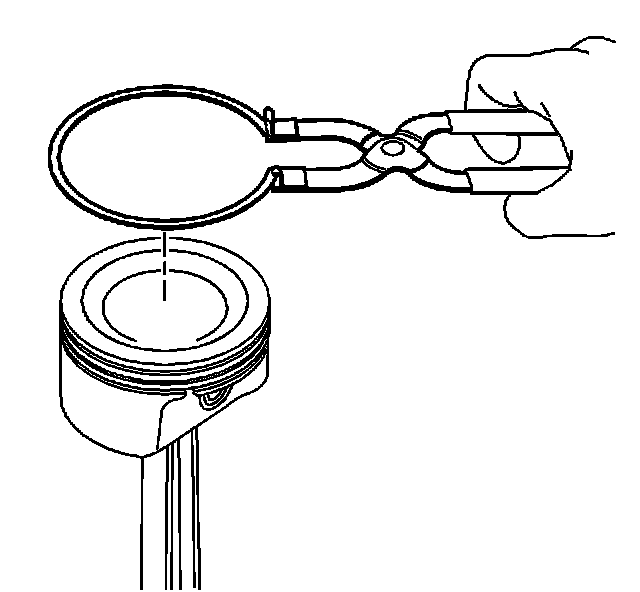

1. Disassemble the piston rings from the piston using a piston ring expander.





2. Remove the piston ring clips.

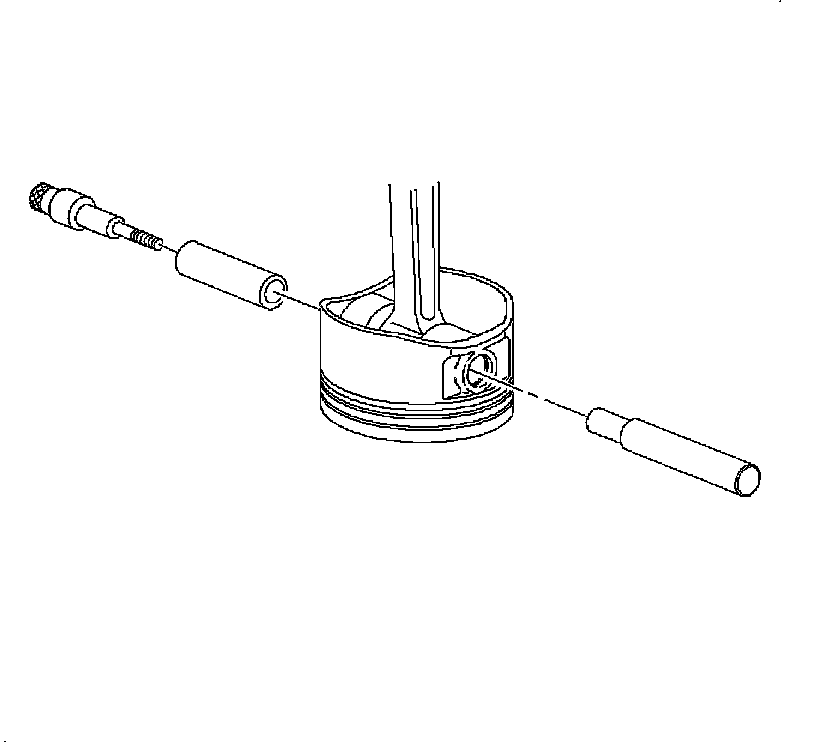

3. Use the SA9101E to disassemble the piston pin from the connecting rod, if necessary.
4. Disassemble the piston from the connecting rod.
