22. Piston, Connecting Rod, and Bearing Removal

Piston, Connecting Rod, and Bearing Removal

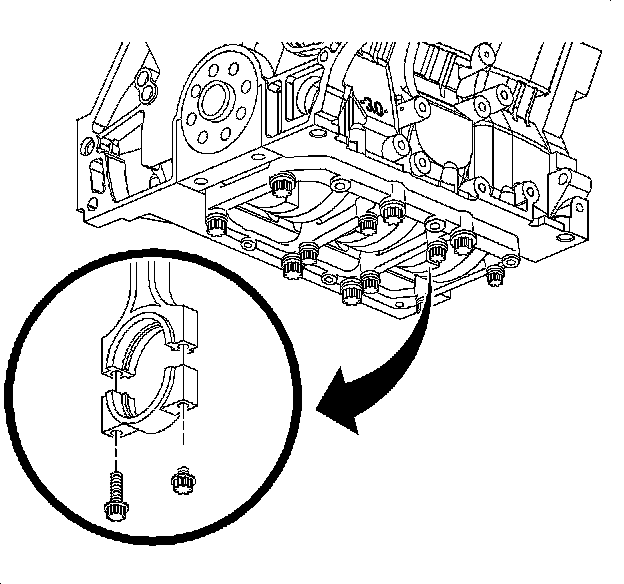

1. Rotate the crankshaft until the rod bearing cap bolts are accessible.
2. Remove the rod bearing cap bolts.
3. Remove the rod bearing cap.

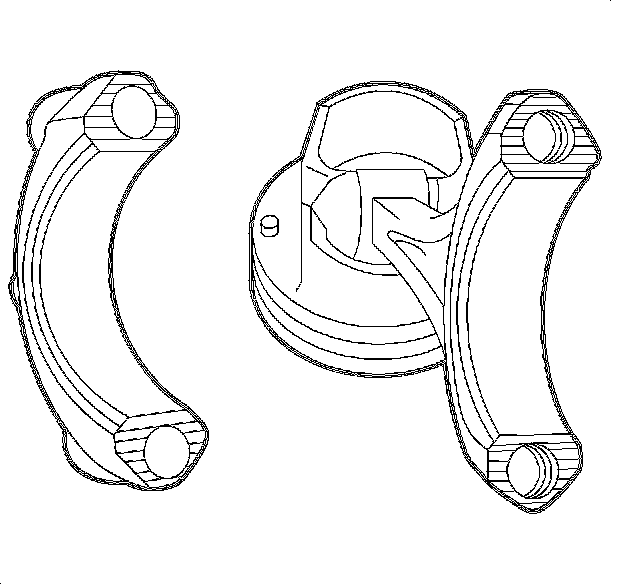

Important: Install the rod cap to the rod when the piston is removed from the engine block. The rod and the cap are not interchangeable. The mating surfaces must be protected from damage.

4. Use a block of wood or use a soft material to drive each piston out of the cylinder.





Notice: Do not wipe rod cap mating surfaces with a rag. Lint or foreign debris will not allow proper surface contact.

5. Remove the rod bearing cap insert.
