10. Camshaft Cover Removal



Camshaft Cover Removal

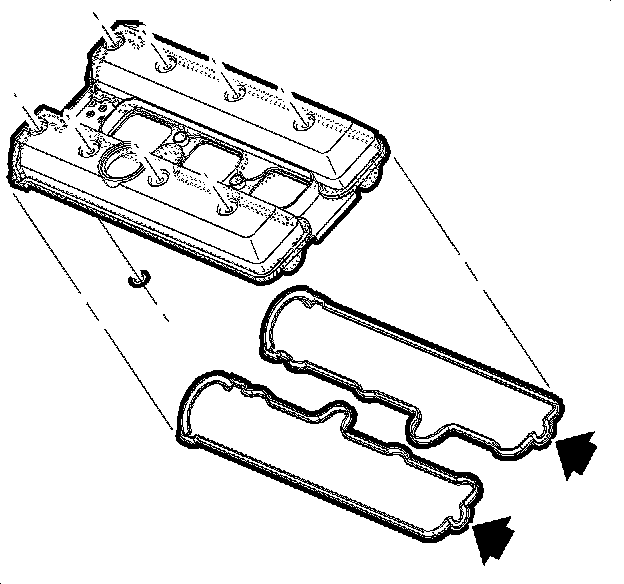

1. Remove the camshaft cover bolts.
2. Remove the camshaft cover.

Important: Ensure that all 8 sealing O-rings are accounted for. O-rings may stick to camshaft bearing caps. O-rings may fall into the oil return journals in the cylinder head.

3. Remove the camshaft cover seals.
