Piston Selection



Piston Selection

Select the proper size piston for each cylinder bore after cylinder has been honed.

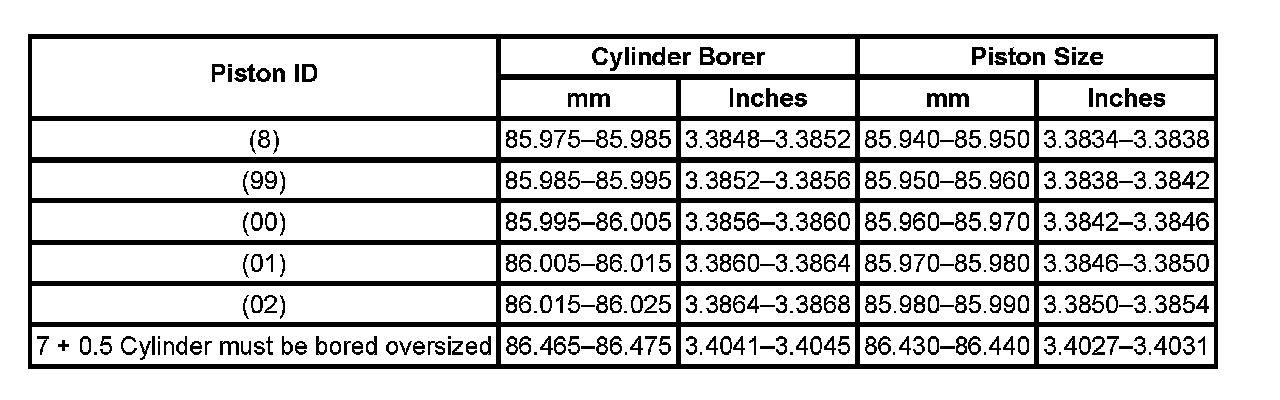

Measure the cylinder bore. Refer to the table for the correct size piston to use for that cylinder.
