Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Splices >> Splice/Splice Packs By Number >> SP100 - SP199 >> SP191

SP191

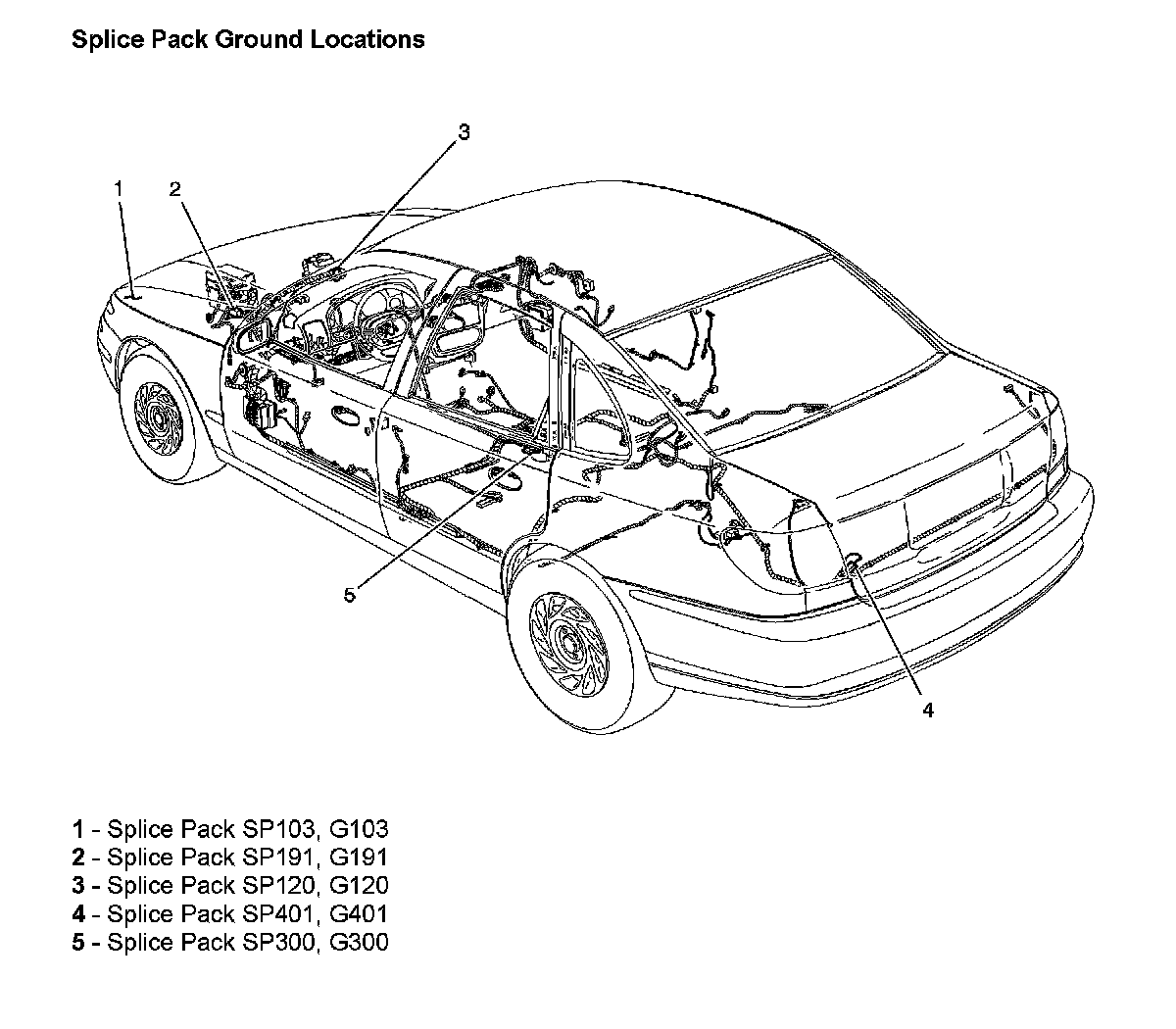

Splice Pack Ground Locations:

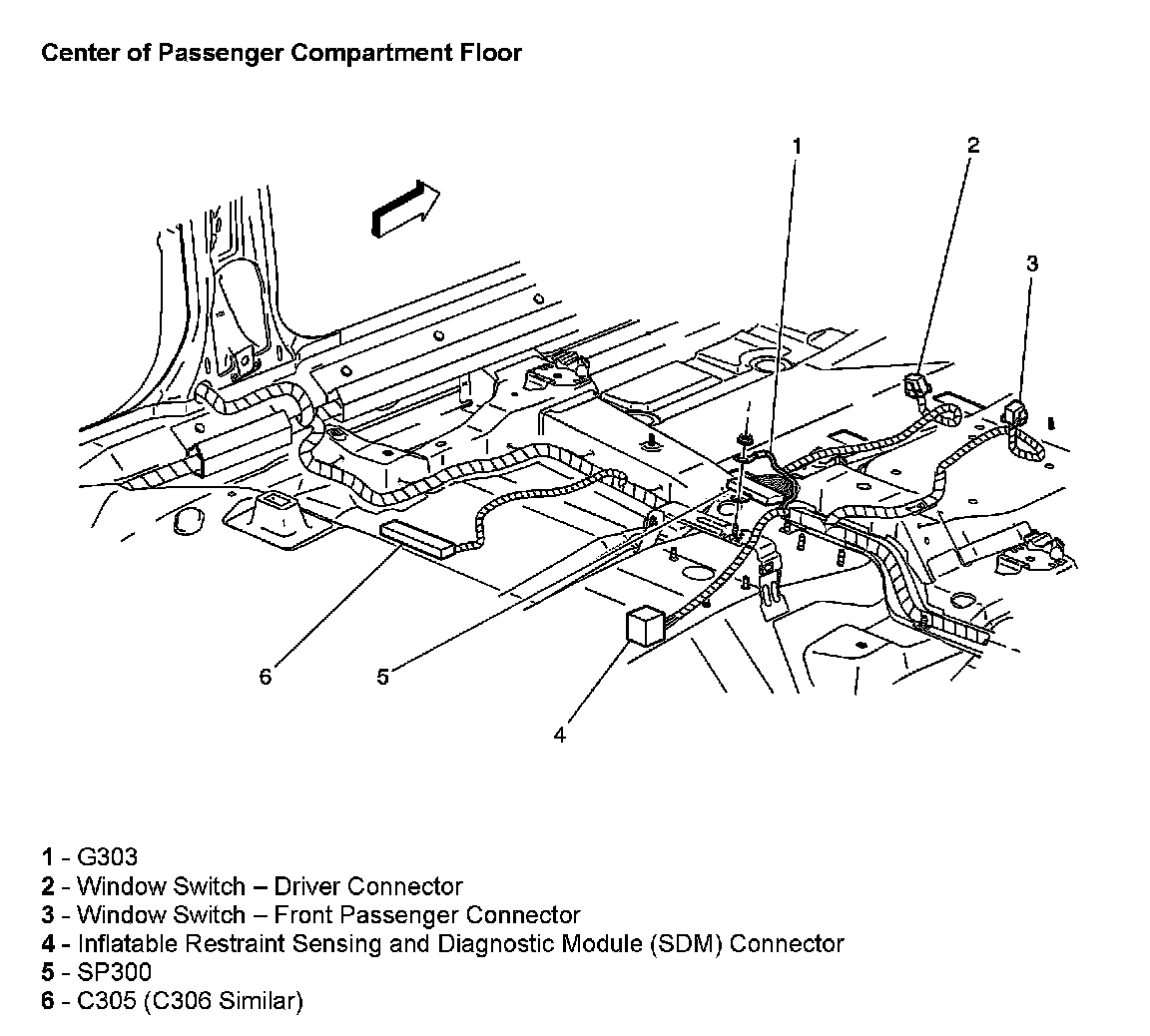

Center Of Passenger Compartment Floor:
