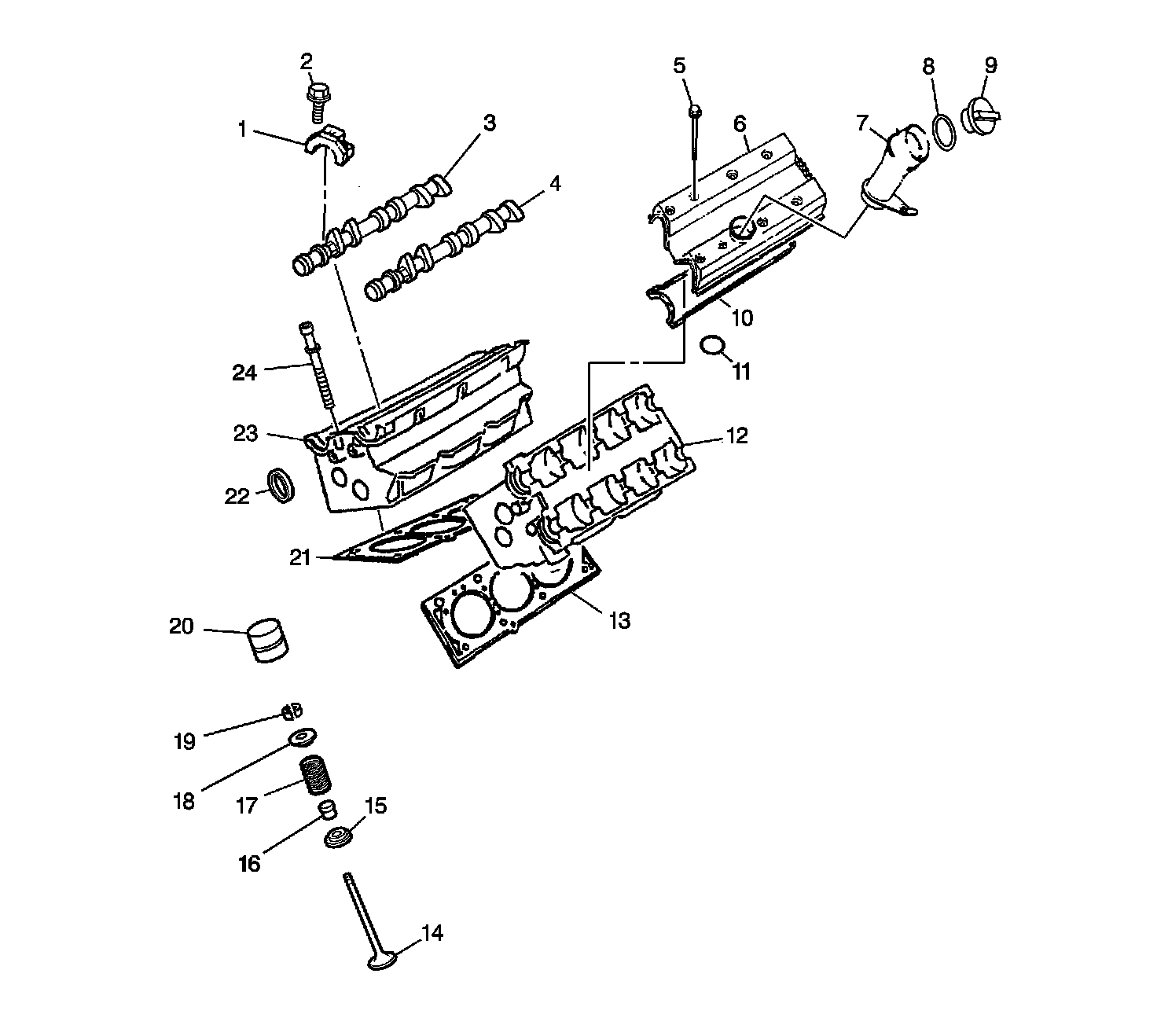

Cylinder Head and Components

Cylinder Head and Components





1 - Camshaft Bearing Cap
2 - Camshaft Bearing Cap Bolt
3 - Exhaust Camshaft
4 - Intake Camshaft
5 - Camshaft Cover Bolt
6 - Camshaft Cover
7 - Oil Fill Tube
8 - Oil Fill Cap O-ring
9 - Oil Fill Cap
10 - Camshaft Cover Gasket
11 - Camshaft Cover O-ring
12 - Left Cylinder Head
13 - Left Cylinder Head Gasket
14 - Valve
15 - Valve Spring Seat
16 - Valve Seal
17 - Valve Spring
18 - Valve Spring Cap
19 - Valve Spring Retaining Keys
20 - Valve Lifter
21 - Right Cylinder Head Gasket
22 - Camshaft Seal
23 - Right Cylinder Head
24 - Cylinder Head Bolt
